Shopping Mall Framed Glass Partiiton Wall

Shopping Mall Framed Glass Partiiton Wall

Type: Type65, Type85.
Panel thickness: 70mm, 85mm.
Application: Shopping mall, office, meeting room.
Height: 2-5.5m.
Panel frame: Customized.
Suspension: Single or double.
Glass: Clear tempered glass.
Layer: single glass.
Color: Customized.
Parking way: Customized according site condition.

Send Inquiry

Description of the whole system

Shopping Mall framed glass partition wall

Item

Framed glass partition door

Partition Height

From 2 meters to 4 meters

Sound Transmission Class (STC)

From 32db to 45db

Optional Mode

Connected & seperated, sealed & non sealed

Description of accessories


Glass Clamp

Clear anodized 6063-T6 aluminum

Track System

Clear anodized 6063-T6 aluminum track; Imported dupont POM material

Junction

"T" junction, "L" junction, cross/"X" junction

Glass

Standard thickness of 8mm and 10mm for option

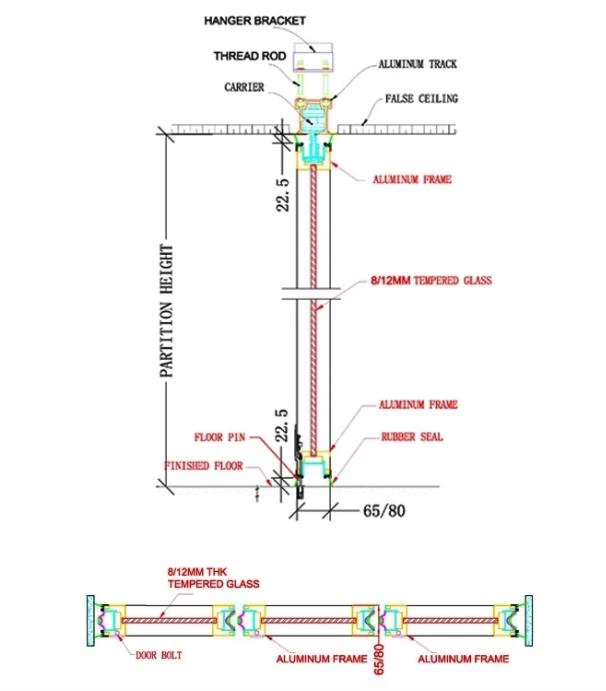

Egood Movable frame glass partition consists of glass surrounded with an aluminum frame that is normal 70mm or 85mm thick. Each panel has top and bottom weep seals and a 22.5mm clearance gap for suspension. Individual or paired panel are available for selection.

The standard aluminum frame finish in clear anodized color but it may be ordered powder coated or custom anodized.

Shopping Mall Framed Glass Partiiton Wall

Shopping Mall Framed Glass Partiiton Wall


1)Track Description:

Egood's double,corrosion-resistant aluminum track systems are easy to install and easier to intain.

Extruding enables each section to have a uniform shape for superior end-to-end alignment.

Shopping Mall Framed Glass Partiiton Wall Description


2)Partition locking details:image


3) The panels require floor pins and receptacles in the floor to keep them secure in the opening.


Package and shipping details:

Package and shipping details


Package and shipping details
