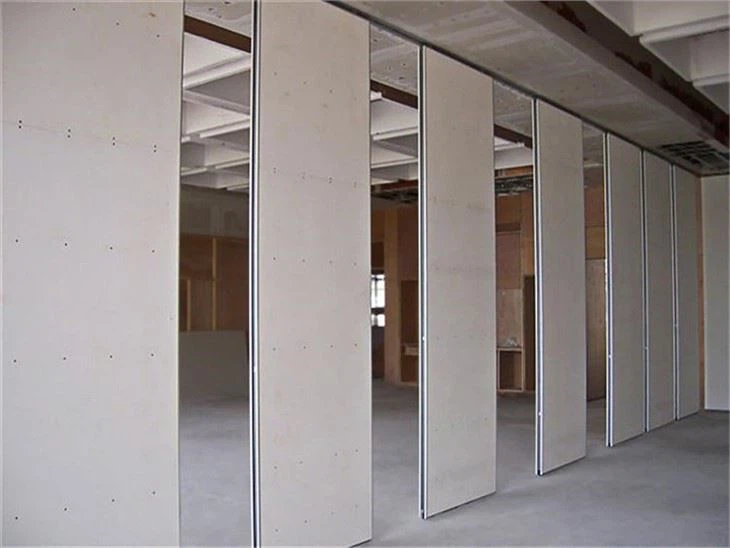

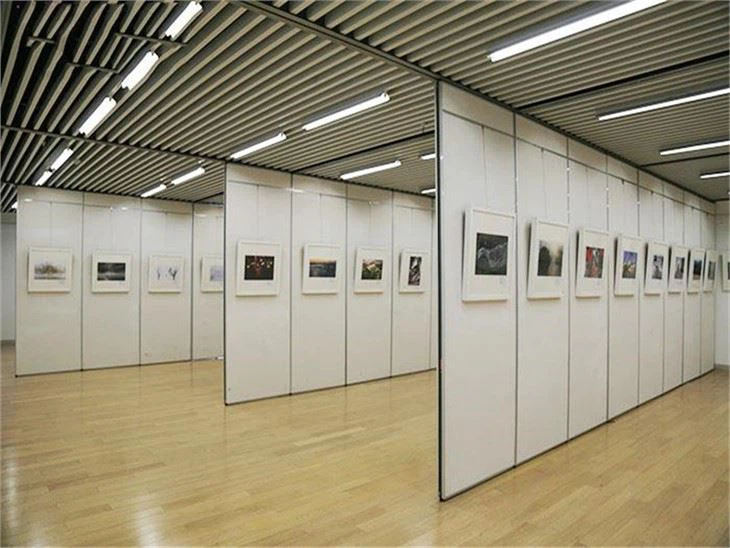

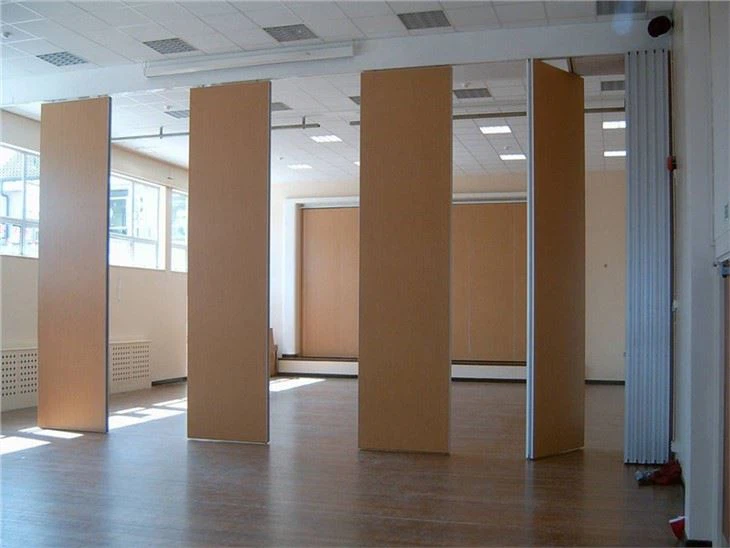

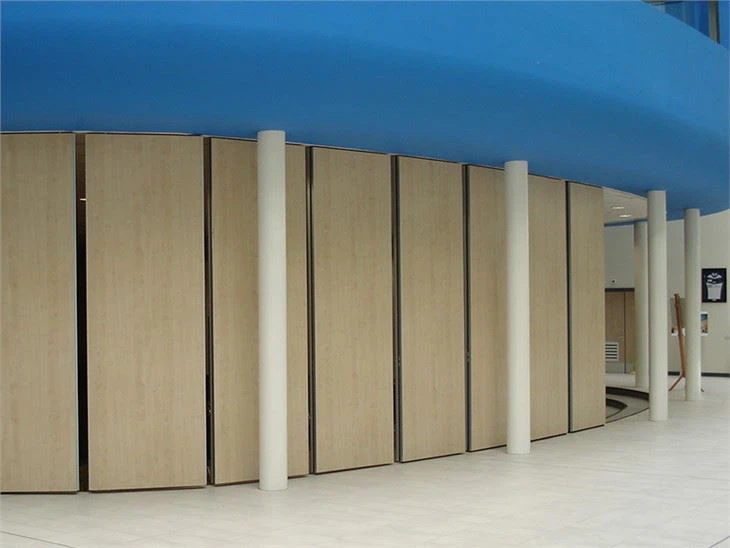

Art Gallery Type 80 Melamine Movable Wall

Model Type:Art gallery Type 80 Melamine movable wall
Partition thickness80mm
Panel Height:2000-5500MM
Panel Width:600-1200mm
Soundproof rate:40-48DB
Parking way:customized according site condition
Track Type:60#/65#/80#
Filler material:Acoustic rock wool
Surface Material:Melamine
Models support:single or twin point
...

Send Inquiry

Model Type:Art gallery Type 80 Melamine movable wall

Partition thickness80mm

Panel Height:2000-5500MM

Panel Width:600-1200mm

Soundproof rate:40-48DB

Parking way:customized according site condition

Track Type:60#/65#/80#

Filler material:Acoustic rock wool

Surface Material:Melamine

Models support:single or twin point


Moveable_Walls3





80 Series Track System For Omani-directional panels up to 380kg. Two carriers are provided per panel. Each carrier has two horizontal counter rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200mm.


80#

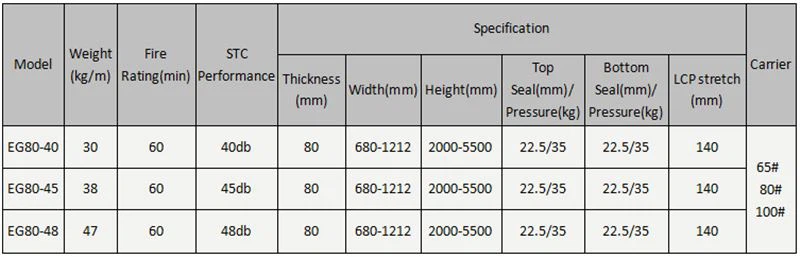

Technical data of Type 80 movable partition :

80


1. No rail suspension: the floor has no track, just install the track on the ceiling;

2. Stable and safe: stable and reliable after partitioning, not easy to swing;

3. Compartment environmental protection: the effect of the compartment is good, the maximum sound insulation coefficient can reach 50db;

4. Insulation and energy saving: excellent thermal insulation function, according to different occupancy rates, the hall is divided into small spaces to reduce air conditioning power consumption;

5. Efficient fire prevention: It is made of high-efficiency fireproof material and has good fireproof function;
