Banquet Hall Movable Partition Wall

Banquet Hall Movable Partition Wall

We design and manufacture value for many products with one year's
warranty on all the outstanding ranges illustrated in this brochure.
They offer a complete service package covering site surveys, CAD
technical drawings, and quotation presentation. Emphasis is placed
on quality assurance backed by a comprehensive after sales service.
...

Send Inquiry

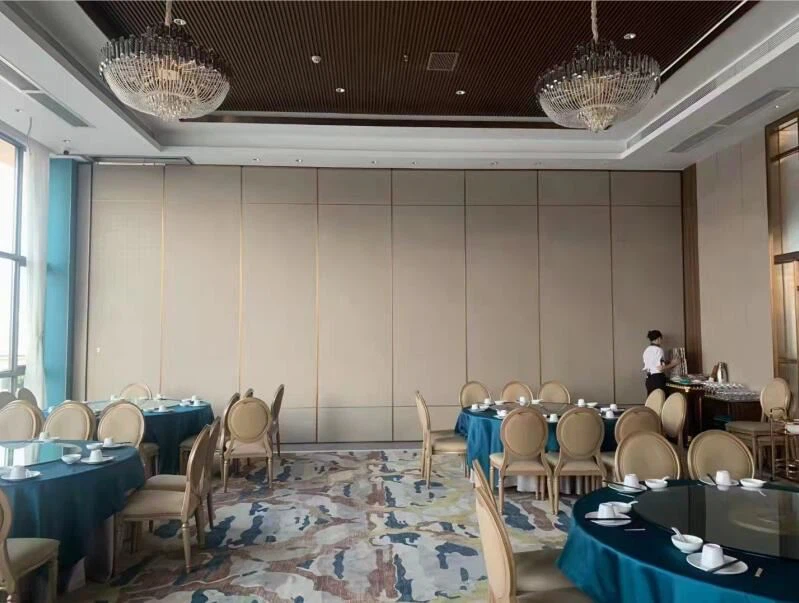

As Banquet Hall Movable Partition Wall, we provide diverse finish design for clients, whiel keep the acoustic function. The door frame can be powder coated with customize color, fix with finish of nice color. The door panel can fit in banquet hall design and make it amazing look. Guests can enjoy their meal and parties under the harmonious color world.


Banquet hall partition wall is of demanding in acoustic performance. We design it with different sound insulation, taking consideration of the budget and soundproof requirement for varies projects.Sound barrier material adopted like rockwool, sound dampenning mat,steel sheet or gypsum board. Base on clients' need.



Description of the whole system

Banquet Hall Movable Partition Wall

Item

Movable partition wall

Max. partition height

4.5 meters

Sound Transmission Class(STC)

32-45db

Description of partition accessories


Roller

Imported dupont POM material roller,bearing capacity 225-250kg

Track System

Clear anodized 6063-T6 aluminum

Wall panel finish option

MDF,melamine,HPL,fabric,PU,wood veer

Junction

"T"junction, "L" juntion, cross/ "+" juntion

sound barrier infill

55kg/m3 glasswool

Interior profile

Full aluminum

Application

Hotel, banquet hall, ballroom , conference room, classroom, function hall, auditorium


ballroom oeprable wall

Ballroom partition wall project at site

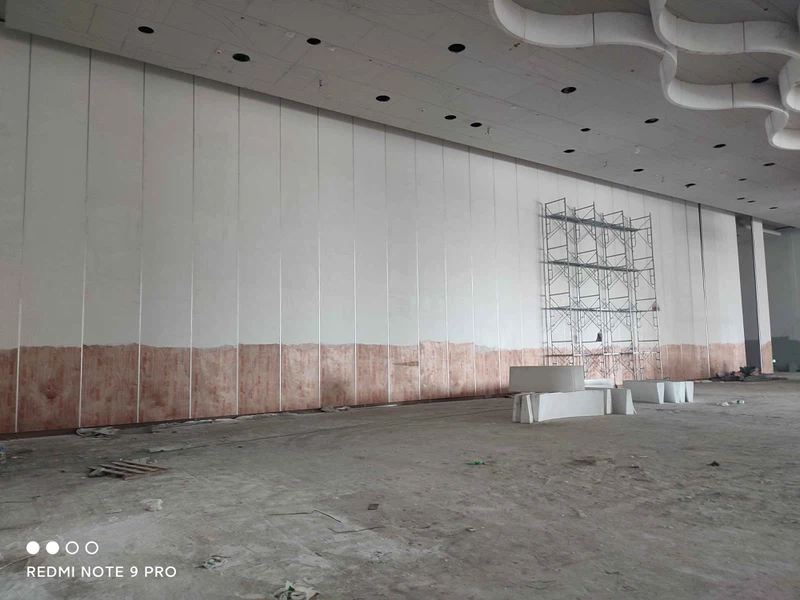

operable partition wall

Operable wall of plywood finish with paiting combination in convention center


Westin Hotel partition wall

Customized finish in star hotel project

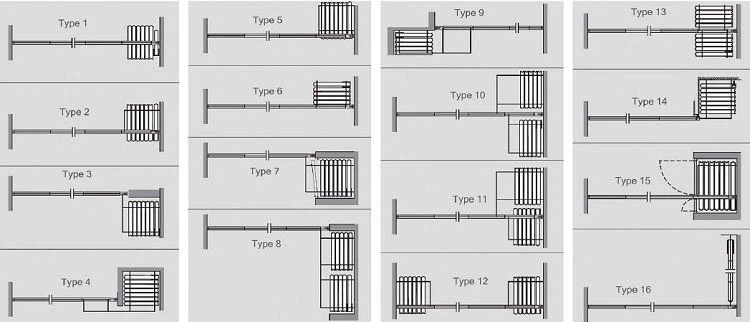

Stacking options:

Type 65 Movable Partition Wall

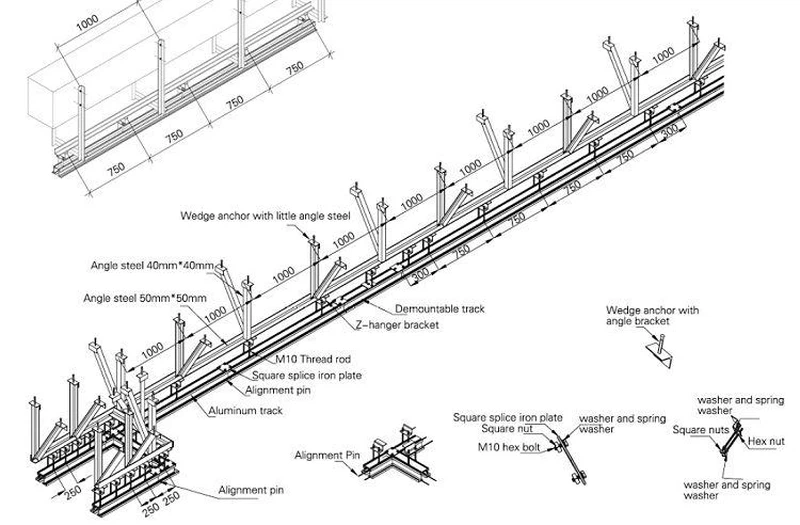

Track installation instruction drawing:

We provide guidance in all means to help clients installing Banquet Hall Movable Partition Wall, technical drawing is one of it.


For main track the steel structure distance each other of 1000mm, and for parking track is 500mm to provide sthength of hanging operable wall panels.

partition wall installation

More Info and Project Quotation kindly contact with project manager:

E-mail: info@chinajls.com

What'sAPP:+86 18927795979
