Product Details: Omni-directal removable wall for function room Type: Office Furniture General Use: Commercial Furniture Model Number: Type-100 Height (maximum height): 750mm Width: 750~~1230mm Thickness: 100mm Left and right telescoping: 140mm Stretching up and down: 60mm Partition weight: 46kg/㎡ Certificate: ISO9001 Track: Top suspension Track...
Send InquiryProduct Details: Omni-directal removable wall for function room
Type: Office Furniture
General Use: Commercial Furniture
Model Number: Type-100
Height (maximum height): 750mm
Width: 750~~1230mm
Thickness: 100mm
Left and right telescoping: 140mm
Stretching up and down: 60mm
Partition weight: 46kg/㎡
Certificate: ISO9001
Track: Top suspension Track

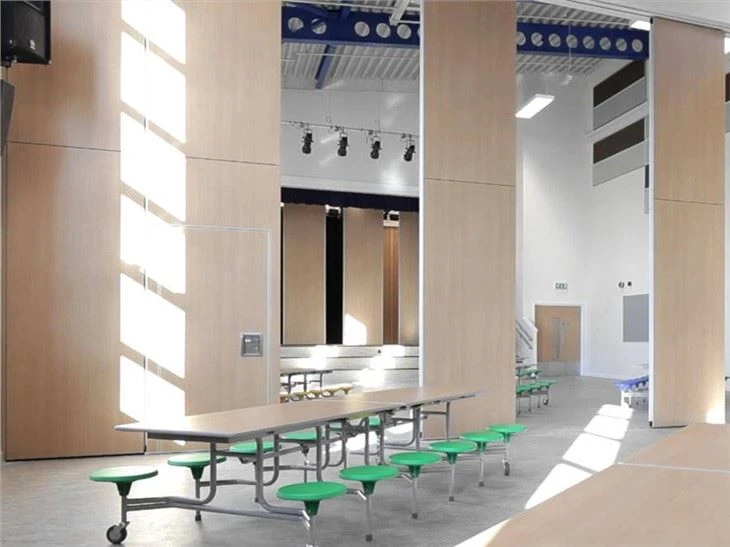

Egood 100 series operable partition is made of a high quality aluminium frame with composite materials. The panel has a standard thickness of 100mm and a width up to 1230mm Maximum height can reach 7500mm tall Its vertical seal, together with the horizontal top and bottom retractable seals provide excellent acoustic insulation property of maximum STC 53db in laboratory setting. Its excellent acoustic insulation property and maximum reach allow it to be used in ballroom, banquet hall, mufti function halls, auditorium, exhibition centre and other facilities which get high sound insulation requirement.

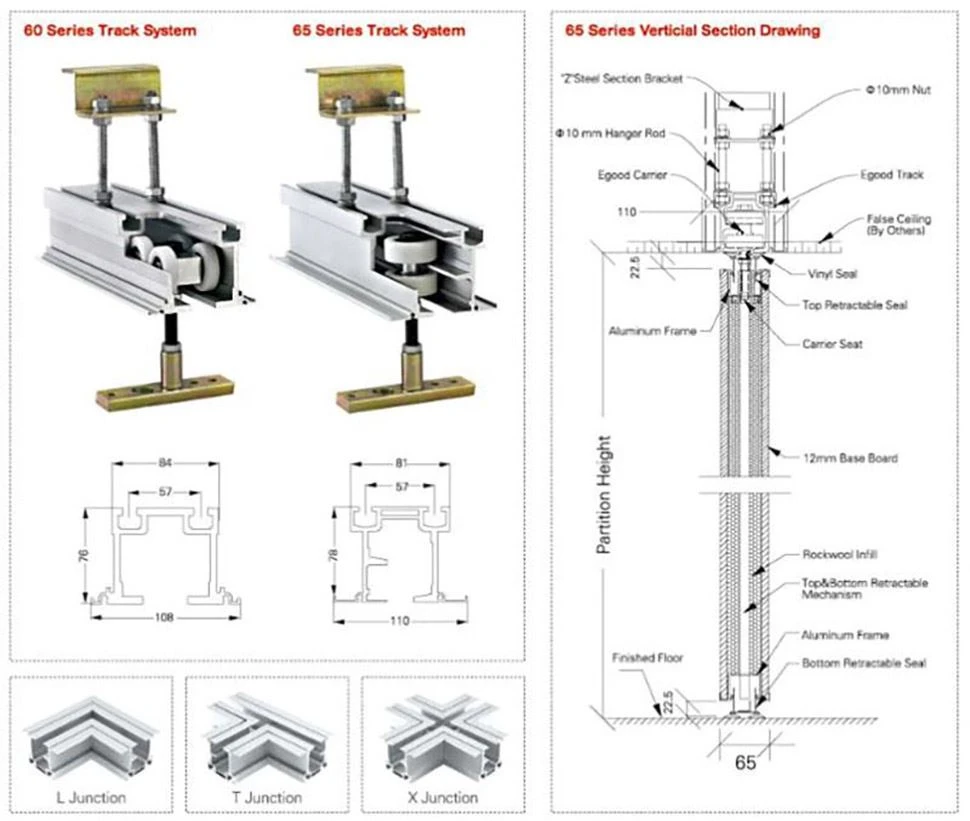

Aluminum Series Track System:
For Omani-directional panels up to 650kg. Two carriers are provided per panel. Each carrier has two horizontal counter- rotating wheels that roll (not slide) in the track Each wheel has precision ground bearings, encased with POM, steel banded and reinforced. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 250mm
Available finish options for operable wall:
VINYL,MELAMINE COVERING,SOLID COLOR OR WOODEN COLOR
WOVEN FABRIC COVERING,FOAM PADDING,ACOUSTIC PANEL
AIRTIFICIAL LEATHER , FORAM PADDING
HIGH PRESSUARE LAMINATE,PLASTIC LAMINATE
NATURE WOOD VENEER
WHITE BOARD,WALLPAPER
CUSTOMERS OWN MATERIALS
