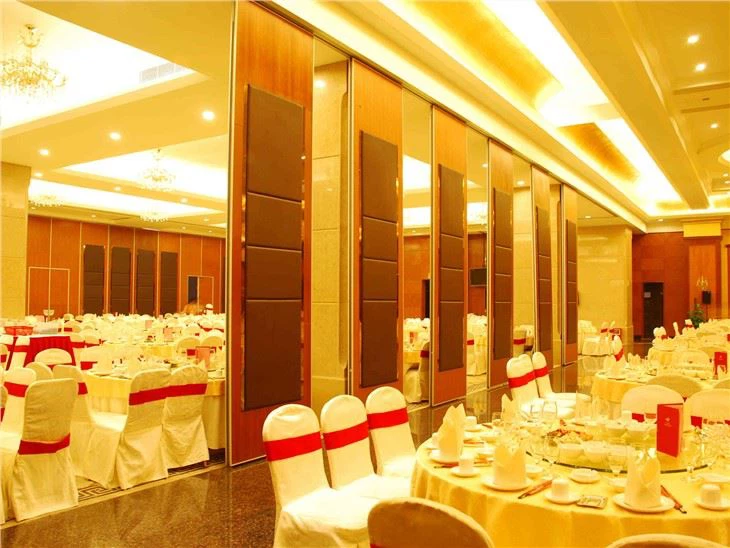

Wedding Hall Foldable Partition Wall Hotel

Panel thickness: 100mm
Panel height: 7500mm
Profile color: Aluminium silver color, customized colors are available
Finish: Wooden on bottom. Top with fabric finish
Track: Top suspension ultrahigh steel heavy duty track
Operation: Semi-Automatic operation
Top support: Steel truss
Connection: Steel track welded to the top, panel sliding by roller
Wall connection: 37mm Wall Jamb
Panel connection: Male-Female Profile
...

Send Inquiry

Characteristic

Panel thickness: 100mm <br>

Panel height: 7500mm <br>

Profile color: Aluminium silver color, customized colors are available<br>

Finish: Wooden on bottom. Top with fabric finish <br>

Track: Top suspension ultrahigh steel heavy duty track <br>

Operation: Semi-Automatic operation <br>

Top support: Steel truss<br>

Connection: Steel track welded to the top, panel sliding by roller <br>

Wall connection: 37mm Wall Jamb<br>

Panel connection: Male-Female Profile <br>

Hufcor-SCCC-03-03-1024x832_


The movable sound insulating and glass wall systems from Dorma Hüppe offer the very highest quality, functionality and variability for room-dividing and multifunctional layout configuration.

Excellent sound insulation properties allow different events to be held in adjacent areas without any intrusive noise. Combination with openness and transparency are also available with fully glazed elements as well.


Description of the whole system

 Item

Wedding hall Movable partition wall

 Max. partition height

7.5 meters

 Sound Transmission Class(STC)

  45-53db

Description of partition accessories

 Roller

  Imported dupont POM material roller,bearing capacity 225-250kg

 Track System

  Clear anodized 6063-T6 aluminum double track

 Surface finish option

  MDF,melamine,HPL,fabric,PU,wood veer

 Junction

  "T"junction, "L" juntion, cross/ "X" juntion

Glass wool  density inside

66kg/m3

Interior profile

Full aluminum

Application

Hotel, banquet hall, ballroom , conference room, classroom, function hall, auditorium



Panel finishing:

1) Fabric design - Fabric with aluminum, fabric with MDF, fabric with acoustic panel

2) Melamine laminate finish

3) Aluminum board

4) Customized design

5) HPL finish

6) Acoustic panel finish
