108 Single Glazed Office Fullview Glass Partition

108 Single Glazed Office Fullview Glass Partition

The glazed partition walls of aluminum, glass and wood panels have recently been an integral part of any new administrative building. ●Characteristic:lateste european style,108mm thick partition panel ●Profile thinckess :108mm ●Materials: Double layers 12mm tempered glass ●Core Construction:Glass to glass connect by special adhensive ●Metal steel inner structure for steeel partition : Steel keel structure(If needed) ●Surface materials:12 mm thick double glass ●Module Dimension:As per plan ●Avarage thikncess of profile :3.0mm ●Sound insulation:45-48db ●Door materials:6mm glass/12mm HPL...

Send Inquiry

The glazed partition walls of aluminum, glass and wood panels have recently been an integral part of any new administrative building.

Single glazed office full-view glass partition can provide you a bright, open space. And economy because of single glazed.

All partition with top and bottom channel, without any profile needed. The only profiles are on both side as wall jamb.

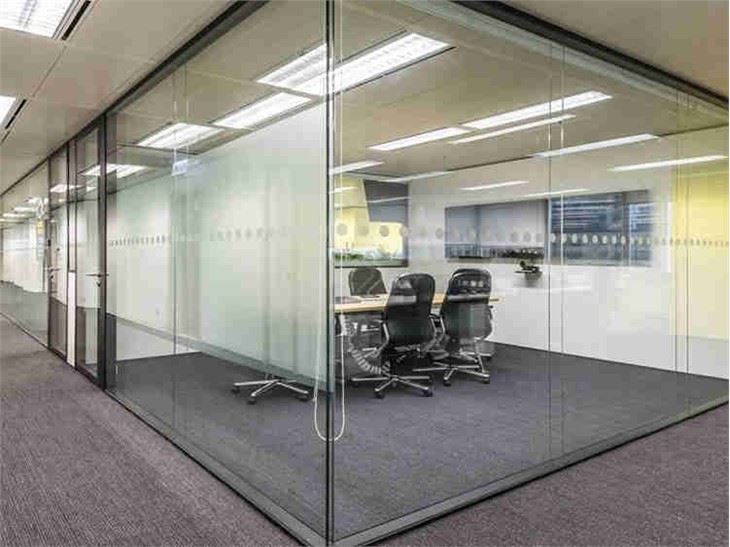

108 Single Glazed Office Fullview Glass Partition


*Type 108 Full View

■Characteristic:Latest European style, full view type
■Partition thickness :108mm
■Surface materials:12 mm thickness of tempered fire glass for single glass
■Core Construction: Inner steel structure; glass joint by acrylic or special adhesive
■ Access door: 60mm door panel with double 6mm glass or wooden
■Materials thickness: All steel profile 3mm thick , Aluminum profile 3.8-4.5mm thick

■Way of installation: Glass joint by special adhesive.
■Module Dimension:As per plan , regular size 1.2m
■Sound insulation:45-48db
■fire retardant:Minimum 30 minutes
■Color:Black, Sliver, gray, gold, bronze, aluminum color
■ Installation: Glass pre-assembled in factory, two parts joint to steel structure. Modular very easy for installation.

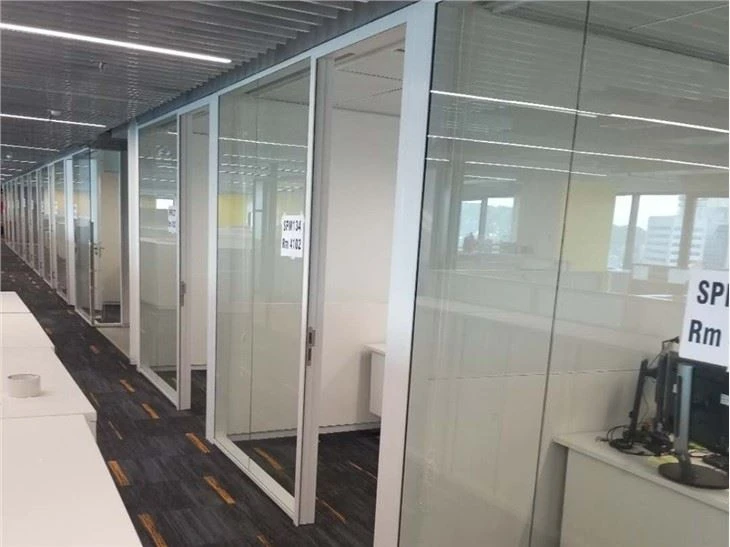

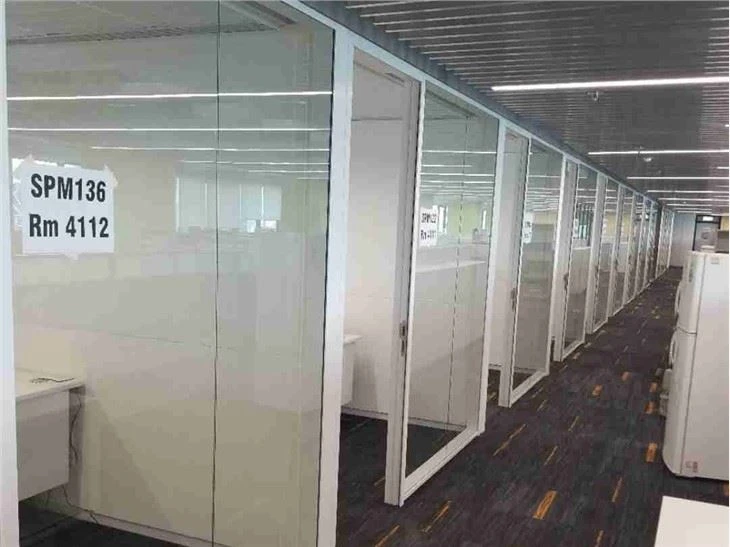

108 Single Glazed Office Fullview Glass Partition108 Single Glazed Office Fullview Glass Partition

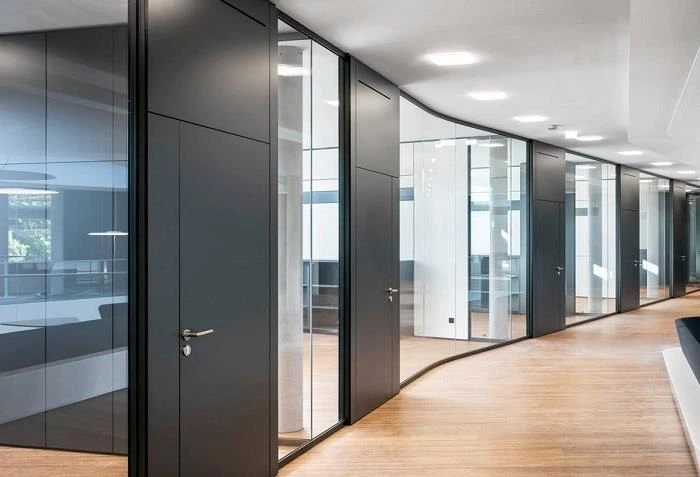

108 Single Glazed Office Fullview Glass Partition


*Design diagram*


Design diagram


*Technical Data*

Model

Profile Thickness

Normal Height

Normal Width

Soundproofing rate

Egood-108
single/double glass

108mm

≤3000mm

900-1200mm

25dB-35dB

Surface work and color

Fireproof rate

Powder coating

Surface option

Shutter

Normal color

B1

Customized

Glass/Melamine ect

Available


Technical Data


*High quality double glass partition wall tempered glass for office glass partitioning design (Lock options)*


office glass partitioning design


*Aluminum color*


Aluminum color

Material:
using the electrostatic powder coating technology.
Color by spraying different batches of a slight color difference,color on the delivery date.




*installation steps*


installation steps


▲Partition up to ceiling


Partition up to ceiling


Wall starter installation & vertical adjustment

file0013


Wall starter installation


▲Top and bottom groove installation&vertical

Top and bottom groove installation


▲Corner pole installation

Corner pole installation


▲Horizontal panels connection

Horizontal panels connection


▲Vertical panels connection

Vertical panels connection


▲Blind installation



*FAQ*

Q: What is the price for movable wall?
A: Our movable wall system is customized and the cost is caculated by total square meter. Different types have different prices. So we need you provide to us detailed dimensions like height by width, finish options, parking options to get a quote.We also need your layout drawing if possible.

Q: Is the movable partition wall acoustic (soundproof)?
A: Yes, our movable wall ystem is soundproof. We have different acoustic materials infill to reach different acoustic rating. And we are the only one factory who has passed ASTM acoustic test in HongKong and get acoustic Test report. For type 65 series we can reach 45db, for type 80 we can reach 48db, for type 100 wecan reach 53db.

Q: What finish options you have for partition?
A: We have several options. We can supply you bare MDF, bare plywood or gypsum board for your own decoration, We can also supply melamine laminate, high pressure laminate, wood veneer, fabric, PU and soon. It dependson your requirement.

Q: Are you a manufacturer or trading company?
A: We are the biggest movable wall partition manufacturer in Foshan city. We have worked for this business over 20 years. Our factory is located in Nanhai district, Foshan city. You are warm welcome to visit us!

Q: How to install the partition? Will it difiult to be done?
A: It is not difucult to installe our partitions. Our partitions are top supported system without any floor track inneed. So top structure will be very important.We have very detailed drawings and videos showing how toinstall, so your people just need to follow them step by step.

Q: Can you send engineer to install? What will the cost be?
A: Sure.We have two options regarding the intallation. The first option is that we will send one engineer assupervisor. He will instruct your workers to do the job but won' t do the installation by himself. The second option is that there will be two installers (at least two) to install movable walls. They will install the system by themselves. At the same time, they also need the asstance from local labour.

Q: Where is your office? Do you have officec in overseas?
A: So far we don' t have office in overseas, our office is located in Nanhai Foshan city. But we have local distributor for some countries, you can kindly consult our people about the overseas distributor information.

Q: Are your products guranteed?
A: Yes, all of our products carry a full 1 Year gurantee, coverig all parts and defects. We can also providean extended arrantee if require and the products are expected to last a lifetime.
