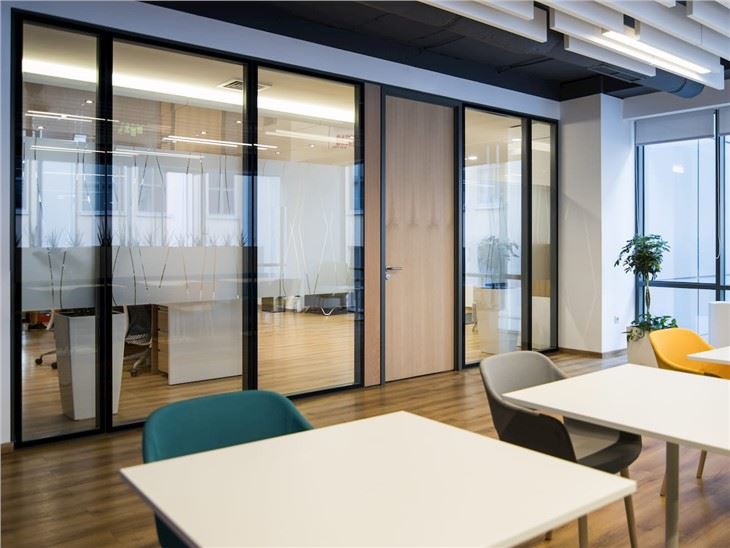

Office Partition Wall

●Characteristic:lateste european style,108mm thick partition panel ●Profile thinckess :108mm ●Materials:Double layer 6mm glass + Anodized aluminum frame ●Core Construction:Glass to glass connect by steel structure ●Metal steel inner structure for steeel partition : Steel keel structure ●Surface materials:6 mm thick double glass/12mm HPL ●Module Dimension:As per plan ●Avarage thikncess of profile :3.0mm ●Sound insulation:45-48db ●Color:white, black, sliver , gray...

Send Inquiry

*Type 108 glass partition modular wall partition demountable partition (Aluminum frame invisible)


Office Partition WallOffice Partition Wall


Design features: Glazed partition with frame invisible

Construction of aluminium profiles Double glazing

Application: Administrative and industrial buildings Offices and conference rooms

Height : Up to 4000 mm

Width of the screen: 800-1500 mm

Weight : 45-55 kg/m2

Noise reduction coefficient: STC 48 dB

Glass thickness: Double 6 mm tempered glass

Built-in doors Glass - single glazed doors

Solid doors : View Transparent, colored or frosted glass


Solid doors



*Type 108 double office glass partition detail*


Type 108 double office glass partition detail



*Design diagram*


Design diagram


*Technical Data*

Model

Profile Thickness

Normal Height

Normal Width

Soundproofing rate

Egood-108
single/double glass

108mm

≤3000mm

900-1200mm

25dB-35dB

Surface work and color

Fireproof rate

Powder coating

Surface option

Shutter

Normal color

B1

Customized

Glass/Melamine ect

Available


Technical Data


*High quality double glass partition wall tempered glass for office glass partitioning design (Lock options)*


office glass partitioning design


*Aluminum color*


Aluminum color

Material:
using the electrostatic powder coating technology.
Color by spraying different batches of a slight color difference,color on the delivery date.


*installation steps*


installation steps


▲Partition up to ceiling


Partition up to ceiling


Wall starter installation & vertical adjustment

Wall starter installation


Wall starter installation


▲Top and bottom groove installation&vertical

Top and bottom groove installation


▲Corner pole installation

Corner pole installation


▲Horizontal panels connection

Horizontal panels connection


▲Vertical panels connection

Vertical panels connection


▲Blind installation


FAQ:

Q: What are the completion options for the partition?

A: We have many choices. We can provide you with bare MDF, bare plywood or gypsum board for your own decoration. We can also provide melamine laminates, high pressure laminates, veneers, fabrics, polyurethane, etc. depending on your requirements.



Q: Are you a manufacturer or a trading company?

A: We are the largest manufacturer of movable partition wall in Foshan. We have worked for this company for more than 20 years. The factory is located in Nanhai District, Foshan City, warmly welcome your presence!



Q: How do I install partitions? Do you have to do this?

A: It's not difficult to install our partition. Our zoning is a top-level support system and it will be very important not to need any ground track structure. We have very detailed drawings and videos showing how to install, so your people just need to step by step.



Q: Can you send an engineer to install it? How much is the charge?

A: Of course. We have two installation options. The first option is for us to send an assistant engineer. He will command your workers to do the work, but he will not install it himself. The second option is to have two installers (at least two) install the movable wall. They will install the system themselves. At the same time, they need the support of local workers.



Q: Where is your office? Do you have an office overseas?

A: So far, we have no offices overseas. Our office is located in Nanhai District, Foshan City, but we have local distributors in some countries. You can ask our people about overseas distributors.



Q: Is your product guaranteed?

A: Yes, all our products have a full one-year warranty, including all parts and defects. If necessary, we can also provide extended warranty period, product life expectancy.
