Ultrahigh aluminum track system are used when the partition height or weight limit exceed that recommended for the normal aluminum system. Maximum height can reach to 12.5 meter with panel weight up to 900kg....
We focus on product development and technological innovation, and design and produce our Soundproof Meeting Room Office Glass Partition, Eco Friendly Art Gallery Operable Partition, Modular Glass Partition with scientific and stable concepts. We are able to provide you with a wide range of high quality hair products at competitive prices. Our company will continue to strive for perfection as always, deepen the intensity of corporate scientific management, improve the technological level of products, and unswervingly provide customers with perfect and enthusiastic after-sales service. Our products sell all over the domestic and abroad thanks for the regular and new customers support. We have won widespread favor, universal praise and unanimous praise in the industry and abroad.
Ultrahigh aluminum track system are used when the partition height or weight limit exceed that recommended for the normal aluminum system. Maximum height can reach to 12.5 meter with panel weight up to 900kg. Each carrier has four steel wheels with precision ground radial bearings. Carriers can be programmed for self-directing and sorting. Minimum dimension from the ceiling to the structure is 300mm.
Old-Ultrahigh Aluminum Track system

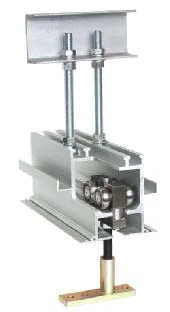

New-Ultrahigh Aluminum Track system
New-Ultrahigh Aluminum Track system
1. It adopts steel hanging wheel, which can carry 1450kg/piece. The wheel slides smoothly at the track interface without stopping, without any noise. Only 3KG of power is required on the straight track, and 8KG of power is required to push and pull in the collection area.
2. With a diameter of 16MM, a length of 335MM hanging wheel screw directly connected to the inside of the panel steel frame structure, and has a safety lock function to prevent separation from the hanging wheel.
Extruding enables each section to have a uniform shape for superior end-to-end alignment.
Each capacity-certified track is of extruded architectural grade clear anodized 6063-T6 aluminum
Egood' s latest carrier is made by Dupont POM material (polyformaldehyde) to meetits best wear resistance,the high carbon chromium bearing steel has reached to astrength standard of 8.8 grade can greatly improve the durability and lifetime ofoperable partition system.

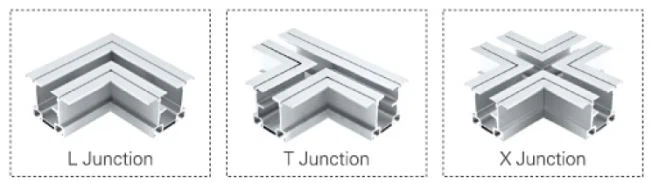

Egood' s double, corrosion-resistant aluminum track systems are easy to install and easier to maintain. Extruding enables each section to have a uniform shape for superiorend-to-end alignment.
Each capacity-certified track is of extruded architectural gradeclear anodized 6063-T6 aluminum.
The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of maximum STC-48 in laboratory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant,schools,office,religion,hospitals,shopping arcades and many other indoor applications product.
The quality of our all products is strictly controlled, only the superior rawmaterial will beused. These are what we always concerned with, pleaserest assured for our constantly strive for excellence.
Q: What are the completion options for the partition?
A: We have many choices. We can provide you with bare MDF, bare plywood or gypsum board for your own decoration. We can also provide melamine laminates, high pressure laminates, veneers, fabrics, polyurethane, etc. depending on your requirements.
Q: Are you a manufacturer or a trading company?
A: We are the largest manufacturer of movable partition wall in Foshan. We have worked for this company for more than 20 years. The factory is located in Nanhai District, Foshan City, warmly welcome your presence!
Q: How do I install partitions? Do you have to do this?
A: It's not difficult to install our partition. Our zoning is a top-level support system and it will be very important not to need any ground track structure. We have very detailed drawings and videos showing how to install, so your people just need to step by step.
Q: Can you send an engineer to install it? How much is the charge?
A: Of course. We have two installation options. The first option is for us to send an assistant engineer. He will command your workers to do the work, but he will not install it himself. The second option is to have two installers (at least two) install the movable wall. They will install the system themselves. At the same time, they need the support of local workers.
Q: Where is your office? Do you have an office overseas?
A: So far, we have no offices overseas. Our office is located in Nanhai District, Foshan City, but we have local distributors in some countries. You can ask our people about overseas distributors.
Q: Is your product guaranteed?
A: Yes, all our products have a full one-year warranty, including all parts and defects. If necessary, we can also provide extended warranty period, product life expectancy.
