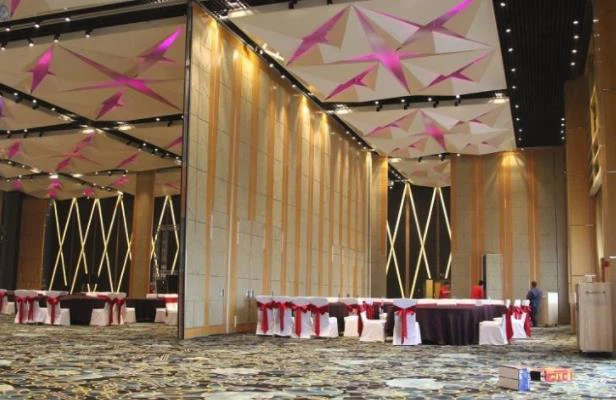

Soundproof Partition Wall for Multi-Purpose Hall/Multi-Function Hall

Soundproof Partition Wall for Multi-Purpose Hall/Multi-Function Hall

● Model Number :Type65/80/100 operable partition
● Matching Track: Type65/80/100 anodized aluminum track system
● Carrier bearing capacity: 225kg-1300kg
● Panel thickness:65/80/100mm
● Main structure:Anodized aluminum+aluminum Keel
● Sound insulation :STC32-53db
● Max panel height: 17000mm
● Base board:MDF,plywood;
● Rock wool: 55kg/m3
● Surface finish:acoustic fabric.
● Panel profile concealed: optional
● Fabric panel thickness:12/15mm
● Package: paper carton,plywood case,wooden pallet
● Price range:usd80-usd180/m2
● Delivery time :2-4 weeks...

Send Inquiry

We purpose to create a lot more price for our prospects with our rich resources, innovative machinery, experienced workers and great products and services for Sound Absorption Convention Centre Operable Wall, Leather Upholstery Movable Partition, Intelligent Soundproof Hotel Folding Partition. With perfect management, state-of-the-art equipment and qualified R&D members, we can guarantee that all our products are of perfect quality and can meet importing and exporting standards. We sincerely look forward to cooperating with customers all over the world, and we believe that we can meet your requirements. We feel that a passionate, ground breaking and well-trained workforce can create fantastic and mutually useful business associations with you quickly.

Egood operable wall partition is made of high quality anodized aluminum frame with environmental composite materials. The panels are hung by ceiling track only, no requirement of floor guides or rails. The panel has a standard thickness of 65-100mm and a width up to 1219mm.Maximum height can reach 17000mm tall.


Egood partition works with Architects,designer, project manager,contractor and owners of project ect. We dedicate to supply first class quality movable partition products for all of our clients, making their idea come true.

Sound Absorption And Soundproofing Fabric Upholstery Convention Centre Operable Wall

Acoustic absorption refers to the process by which a material, structure, or object takes in sound energy when sound waves are encountered, as opposed to reflecting the energy. Part of the absorbed energy is transformed into heat and part is transmitted through the absorbing body. The energy transformed into heat is said to have been 'lost'.


When sound from a loudspeaker collides with the walls of a room part of the sound's energy is reflected, part is transmitted, and part is absorbed into the walls. Just as the acoustic energy was transmitted through the air as pressure differentials (or deformations), the acoustic energy travels through the material which makes up the wall in the same manner. Deformation causes mechanical losses via conversion of part of the sound energy into heat, resulting in acoustic attenuation, mostly due to the wall's viscosity.


Acoustic absorption is of particular interest in soundproofing. Soundproofing aims to absorb as much sound energy (often in particular frequencies) as possible converting it into heat or transmitting it away from a certain location.


In general, soft, pliable, or porous materials (like cloths) serve as good acoustic insulators - absorbing most sound, whereas dense, hard, impenetrable materials (such as metals) reflect most.Sound Absorption And Soundproofing Fabric Upholstery Convention Centre Operable Wall


Sound Absorption And Soundproofing Fabric Upholstery Convention Centre Operable Wall

Sound Absorption And Soundproofing Fabric Upholstery Convention Centre Operable Wall


Steel Structure Upon The Ceiling:


Sound Absorption And Soundproofing Fabric Upholstery Convention Centre Operable Wall


Stacking Parking Option:

Stacking Parking Option


Production Equipment:

Production Equipment


Production Process:

Production Process

Sticking for the basic principle of 'Super Top quality, Satisfactory service', We've been striving to be an excellent business enterprise partner of you for Soundproof Partition Wall for Multi-Purpose Hall/Multi-Function Hall. We sincerely welcome pals to negotiate enterprise and start cooperation. We abide by the 'customer first, integrity management' concept, to provide customers with efficient, intimate, professional products and services, looking forward to your participation.
