Soundproof Sliding Door Removable Wall Partition

Soundproof Sliding Door Removable Wall Partition

■ 100mm thickness panel ,Max height up to 7500mm.
■ Top supported without floor track or guide.
■ clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
...

Send Inquiry
With our professional knowledge and commitment to the market, we position ourselves as a trusted business partner of our customers to meet customer needs by providing reliable and innovative Acoustic Type65 Movable Partition Walls, Acoustic Exhibition Hall Operable Wall, Movable Fullview Frameless Glass Wall. With years of focus and accumulation in the water treatment industry, our company already has a large number of experienced personnel, and constantly updates products and improves the quality. Our company will, as always, abide by the service tenet of 'Do my best and serve customers wholeheartedly', so that customers can enjoy more and better products of the company. Welcome to post your samples and color ring to us. By studying and developing new techniques, we are not only following but also leading fashion industry.

DemountableMovable partition wall , made from aluminum, steel, acoustic material and exclusive operation system, diverse finish to satisfy different site design requirement. Egood partition system not only to divide the space, but decorate it, make it a quiet and private space.


Technical data of Type 100 movable partition :


Model

Weight
(kg/m)

Fire Rating(min)

STC Performance

Specification

Carrier






Thickness
(mm)

Width(mm)

Height(mm)

Top Seal(mm)/ Pressure(kg)

Bottom Seal(mm)/ Pressure(kg)

LCP stretch (mm)






EG100-43

38

60

43db

100

680-1219

2000-7500

30/40

30/40

140

60#
80# 100#

EG100-48

46

60

48db

100

680-1219

2000-7500

30/40

30/40

140


EG100-53

55

60

53db

100

680-1219

2000-7500

30/40

30/40

140

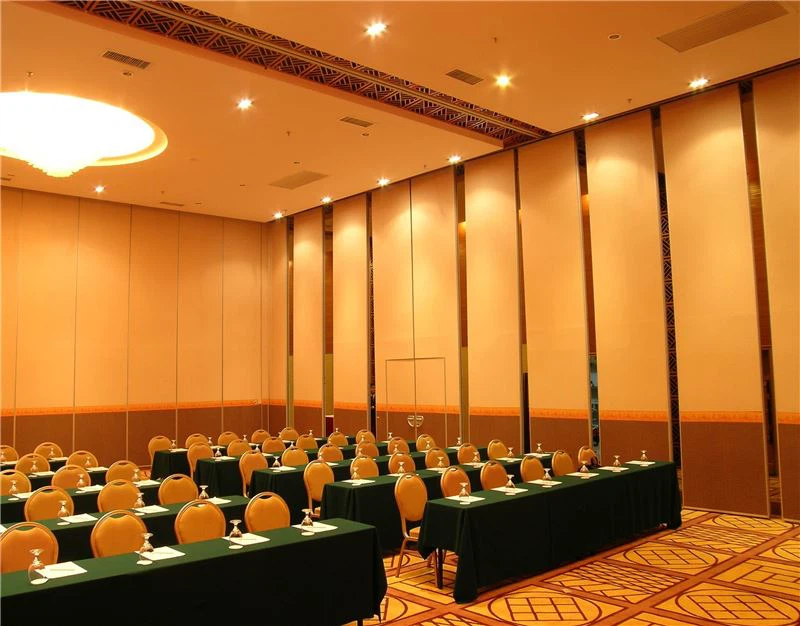

hotel partition wall

Features:

1. Maximum height of panel can reach 7500mm.

2. Double layers design in track system which make track more stable and more reliable.


Advantage:

1. Maximum sound insulation can reach STC 53db.

2. With Egood upgraded anodized accessories, prolonging the service life of partition system.

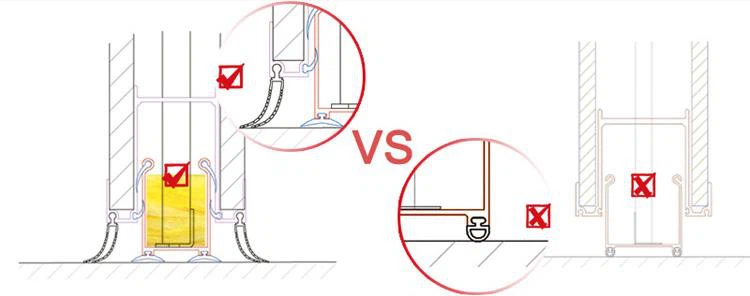

Track system& vertical section for type 100 partitions:


Track system; vertical section for type 100 partitions




Steel structure upon the ceiling

Nitrile butadiene rubber(NBR) is made from butadiene and acrylonitrile through emulsionpolymerization process at low temperature,its features are as follows:excellent oil resistance,high wear resistance,good heat resistance,strong adhesive force,etc.


Nitrile butadiene rubber(NBR)

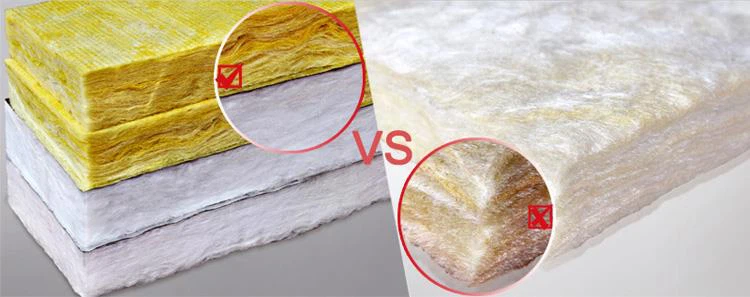

80kg/m³ rock wool to strenghen sound tranmission

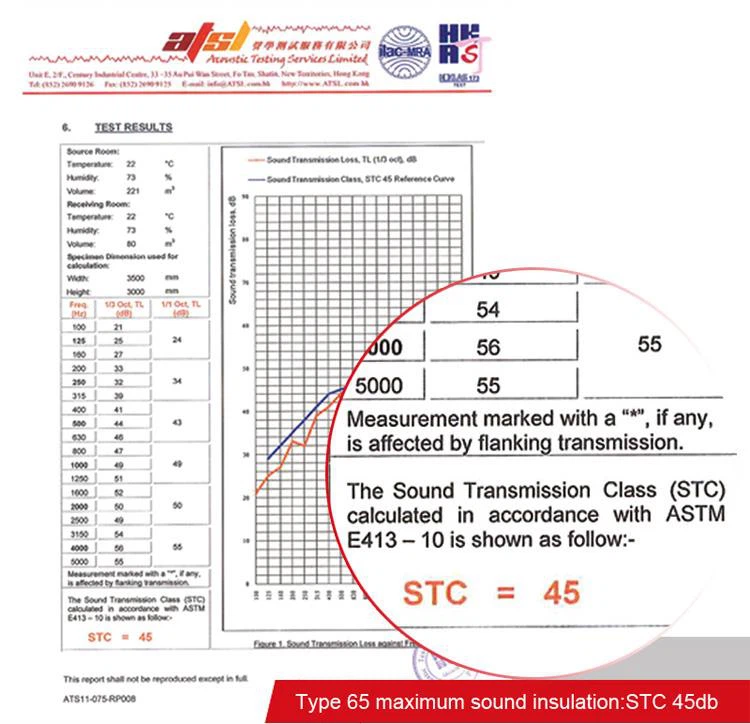

STC45db sound insulation test report

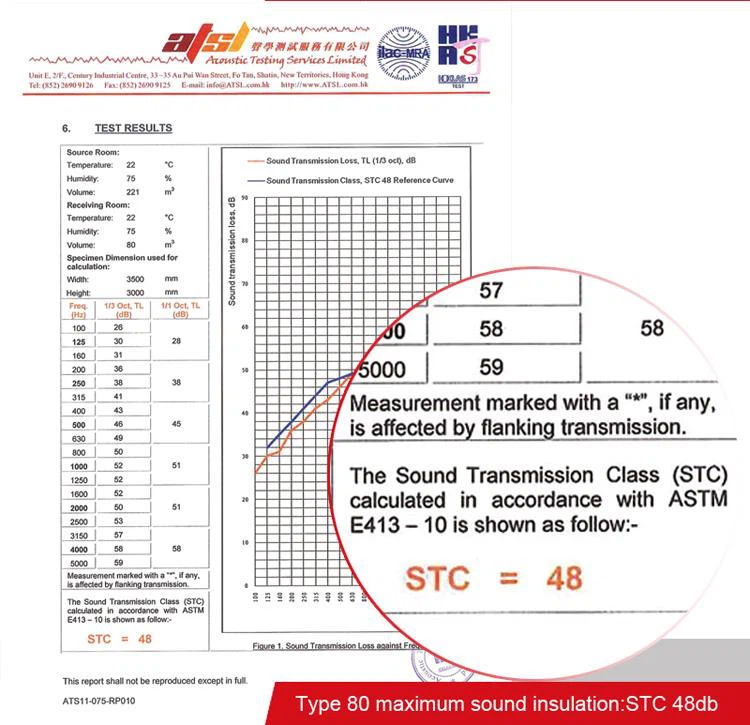

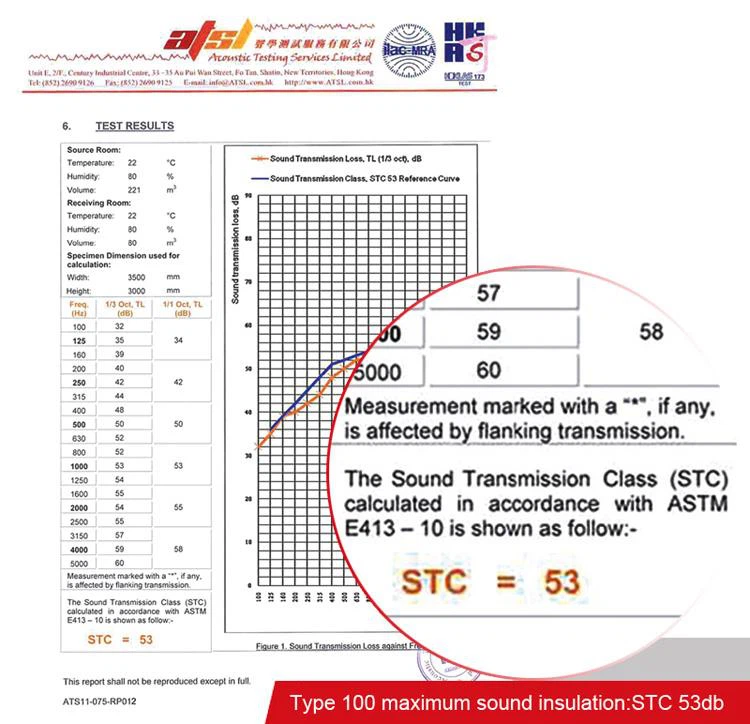

ASTM sound insulation test report



ASTM international is an organization establishes standards for testing and applicationin many areas including acoustics. Egood designes and buildstheir acoustic operablepartition systems including tracks,carriers,panels and doors according to the commomASTM standards of Acoustics.Egood conducts ASTM Standards of Acoustics test inHongKong Laboratory Accreditation Scheme(HOKLAS) for her 65,80 and 100 seriesof operation partition systems.


FAQ:

Q: What finish options you have for partition?
A: We have several options.We can supply you bare MDF,bare plywood or gypsum board for your own decoration,We can also supply melamine laminate,high pressure laminate, wood veneer,fabric,PU and soon.It dependson your requirement.


Q: Are you a manufacturer or trading company?
A: We are the biggest movable wall partition manufacturer in Foshan city.We have worked for this business over 20 years. Our factory is located in Nanhai district,Foshan city.You are warm welcome to visit us!


Where is your office? Do you have officec in overseas?

A: So far we don't have office in overseas,our office is located in Nanhai Foshan city.But we have local distributor for some countries,you can kindly consult our people about the overseas distributor information.


Q: Are your products guranteed?

A: Yes,all of our products carry a full 1 Year gurantee,coverig all parts and defects.We can also providean extended arrantee if require and the products are expected to last a lifetime.



'Quality to start with, Honesty as base, Sincere company and mutual profit' is our idea, as a way to build constantly and pursue the excellence for Soundproof Sliding Door Removable Wall Partition. We are willing to carry out a wide variety of economic and technological cooperation with friends from all walks of life on the basis of equality and mutual benefit to win a bright future! Our aim is to control quality superior to domestic and international standards to meet customers' expectations and requirements for product quality.
