● 80mm thickness panel ,Max height up to 5500mm.
● Top supported without floor track or guide.
● clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
● Sound insulation coefficien :STC 40db to 48db, ASTM standard of acoustic tested in HongKong.
● available in wide range of finishes.
● Fast delivery and Rich experiences in oversea project installation guide & supervision.
...

Send Inquiry

Our company adheres to the business philosophy of 'responsibility wins respect, innovation wins competition', abides by the principle of honesty and mutual benefit, and contributes to the industry of 100 Ultrahigh Steel Track System, Fire Retardant Type 80-85 Movable Partition, Meeting Room Whiteboard Movable Partition. We strive to build the company into an excellent company with leading technology and services in the industry. As a company with a professional team, we rely on an open world and global exchange of ideas and products. We have strict requirements on product quality. With advanced technology, we continue to provide high quality service and products for our customers at home and abroad!


Specification for egood Type 100:

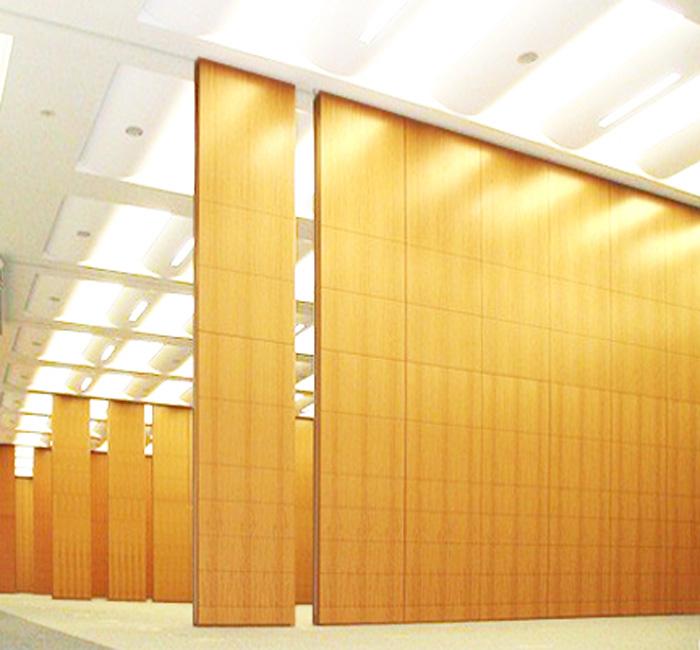

  Egood Type 100 movable wall partition is made of high quality anodized aluminum frame with environmentally composite materials.the panels move on a ceiling track with no requirement of floor guides or rails.the panel has a standard thickness of 100mm and a width up to 1219mm.Maximum height can reach 7500mm tall.



movable partition

■ 100mm thickness panel ,Max height up to 7500mm.

■ Top supported without floor track or guide.

■ clear anodized extruded aluminum tracks and frames,customized powder coated color are available.

■ Sound insulation coefficien :STC 43db to  53db, ASTM standard of acoustic tested in HongKong.

■ available in wide range of finishes.

■ Fast delivery and Rich experiences in oversea project installation guide & supervision.



Product Composition:

movable partition

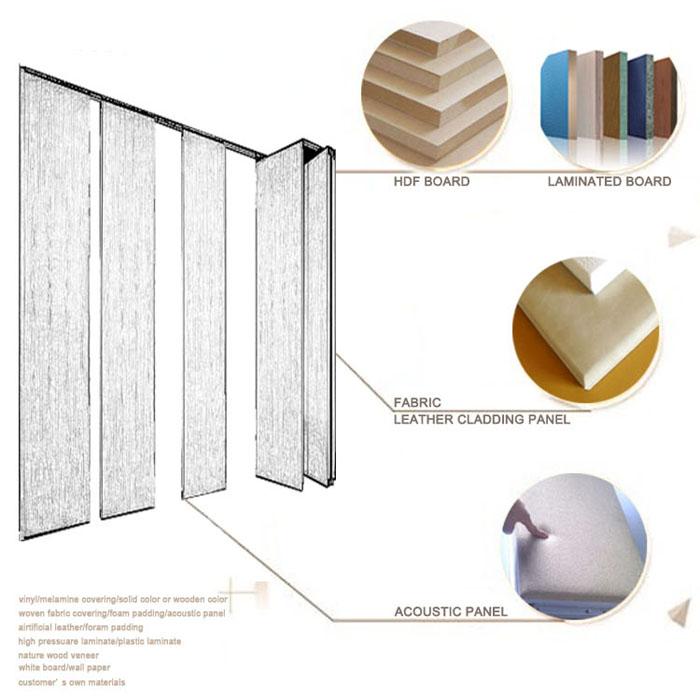

Optional finish:

movable partition

There are wide of range face finishes are available :melamine faced MDF or Plywood,,fabric,carpet,fabric,artificial,leather,wood veneer,high pressure laminate,Formica ,acoustic panel,white boad ect.,panels may also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.

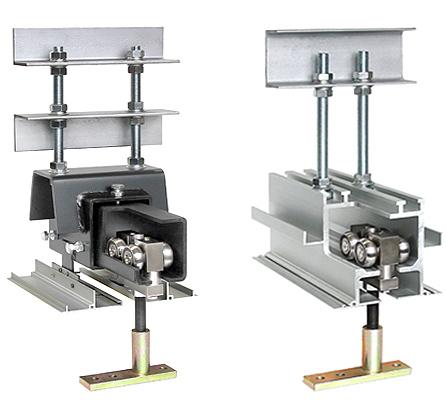

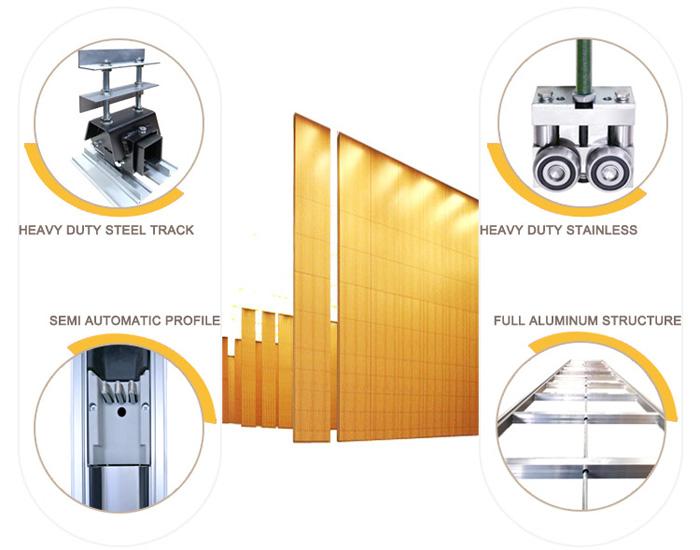

Track systems:

movable partition

■ Curved corner joint for smoother push and pull

■ The track is equipped with guiding devices for automatic steering turn

■ With aluminum alloy edge covered, better with ceiling suited

■ High-strength steel with high load-bearing capacity

■ Long service life and better safety performance

■ Load capacity 3500kg/m, suitable for partitions of 9 meters or more

■ The highest level is 17 meters domestically.



Product detailed:

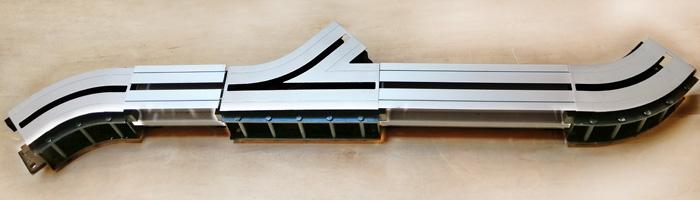

Egood's double,corrosion-resistant aluminum track systems are easy to install and easier to intain.Extruding enables each section to have a uniform shape for superior end-to-end alignment.Each capacity-certified track is of extruded architectural grade clear anodized 6063-T6 aluminum.



movable partition

To seal the corner,Egood gets its own design about specially developed conically shaped corner pieces that fit closely together,with high density,strong collision,is not easily deformed even at temperature - 100℃. Compared with other same industry manufacturers,Egood has great superiority in both sealing and noise insulation factor for its products.




movable partition

The quality of our all products is strictly controlled,only the suuperior rawmaterial will be used.These are what we always concerned with,please rest assured for our constantly strive for excellence.

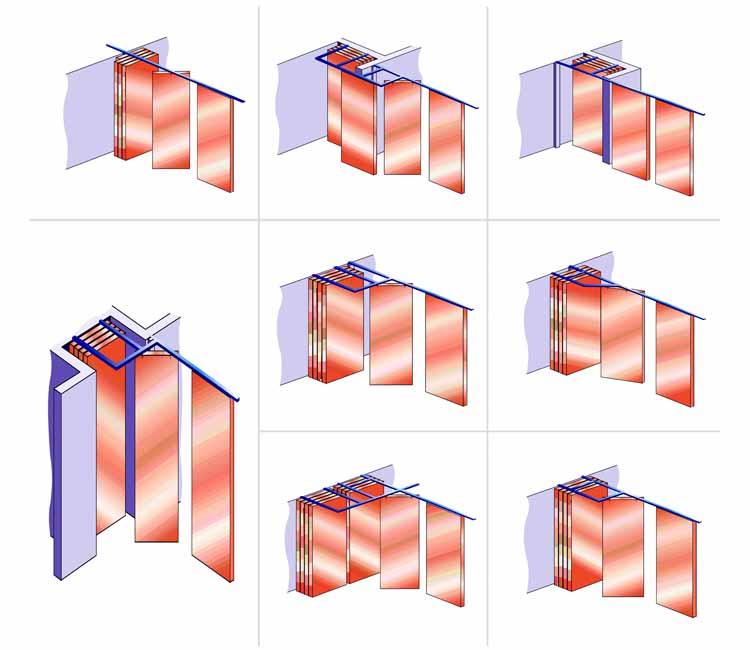

Stacking parking option:

movable partition

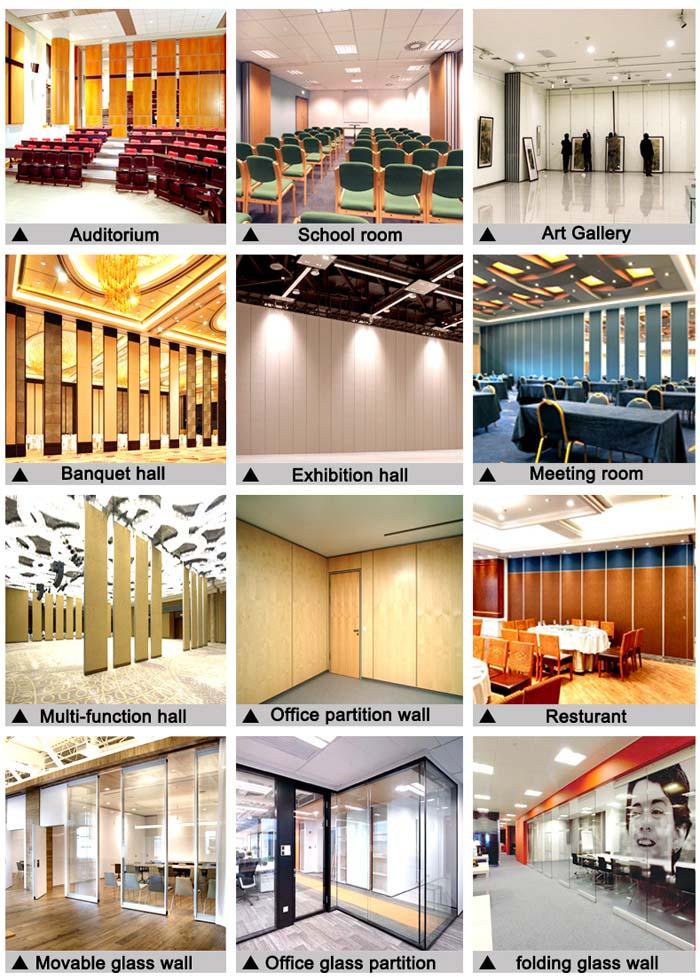

Application scenario

movable partition

The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of maximum STC-48 in laboratory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant,schools,office,religion,hospitals,shopping arcades and many other indoor applications product.




FAQ:

Q: What are the completion options for partitions?

A: We have many options. We can provide you with bare MDF, bare plywood or gypsum board for your own decoration. We can also provide melamine laminate, high-pressure laminate, veneer, fabric, polyurethane, etc. It depends on your requirements.


Q: Are you a manufacturer or a trading company?

A: We are the largest movable wall partition manufacturer in Foshan City. We have worked for this business for more than 20 years. The factory is located in Nanhai District, Foshan City, warmly welcome your presence!


Q: How do I install partitions? Do you have to do it?

A: It's not difficult to install our partition. Our zoning is a top-level supported system that does not require any floor tracks

Structure will be very important. We have very detailed drawings and videos showing how to install, so your people just need to follow them step by step.


Q: Can you send an engineer to install it? How much is the charge?

A: Of course. We have two options for installation. The first option is that we will send an assistant engineer. He will instruct your workers to do the work, but will not install it himself. The second option is to have two installers (at least two) install the movable wall. They will install the system themselves. At the same time, they also need the support of local workers.


Q: Where is your office? Do you have an office overseas?

A: So far, we don't have an office overseas. Our office is located in Nanhai District, Foshan City, but we have local dealers in some countries. You can ask our people for information about overseas dealers.

Q: Is your product guaranteed?

A: Yes, all our products have a full 1-year warranty, including all parts and defects. If necessary, we can also provide extended warranty period, and the product is expected to be used for a lifetime.



Each of our products is designed and produced specially for consumers, and we are a Space Division Insulated Panels Walls Prices Chinese Supplier Interior Sliding Doors for ... manufacturer with complete product line. Brand is not something that can be easily obtained by a huge amount of advertising investment. With us your money in safe your business in safe.
