Technical Summary
Track System: G2000 Heavy Duty Steel Track
Load Capacity: 1250kg/m (Tested to 122.88kN / ~12,538kg peak load)
Fire Rating: 3 Hours (SGS Certified)
Acoustic Insulation: STC 55dB
Panel Thickness: 100mm
Track & Roller System Analysis
For banquet halls requiring extra-high partitions, we utilize the G2000 Steel Track System. Unlike standard aluminum tracks, this system is engineered for extreme durability:
Material: 6mm thick heavy-duty steel.
Roller Design: Imported steel pulleys with 4-wheel precision bearings per roller.
Durability: Tested for >14 years of operation.
Load Test Data: According to our SGS report, the G2000 track withstood a load of 122.88kN (approx. 12,538kg) without failure.
Structural Safety & Fire Rating
Safety is non-negotiable for large-scale venues. The Egood G2000 system includes:
Fire Resistance: Certified 3-hour fire rating by SGS.
Seismic Stability: Designed to withstand level 7 seismic impact.

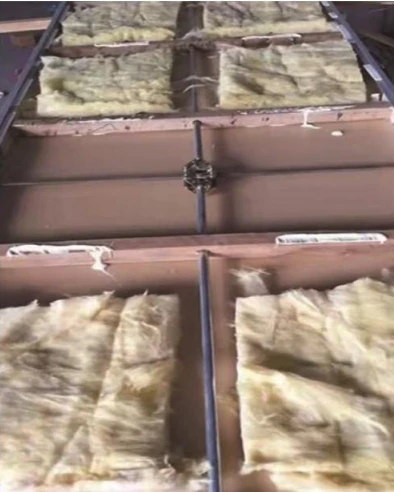

Internal Structure: Galvanized steel frame (≥1.2mm) with eco-friendly acoustic cotton.
Download Technical Resources
[PDF] G2000 Track Load Test Report (SGS)
