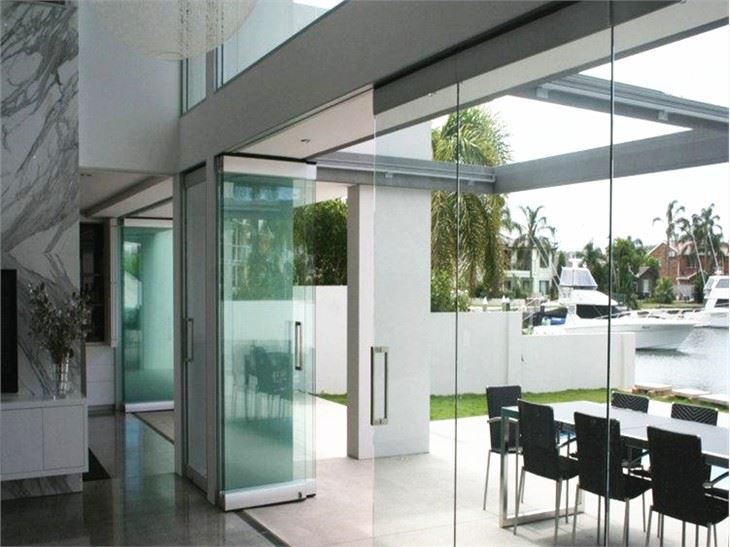

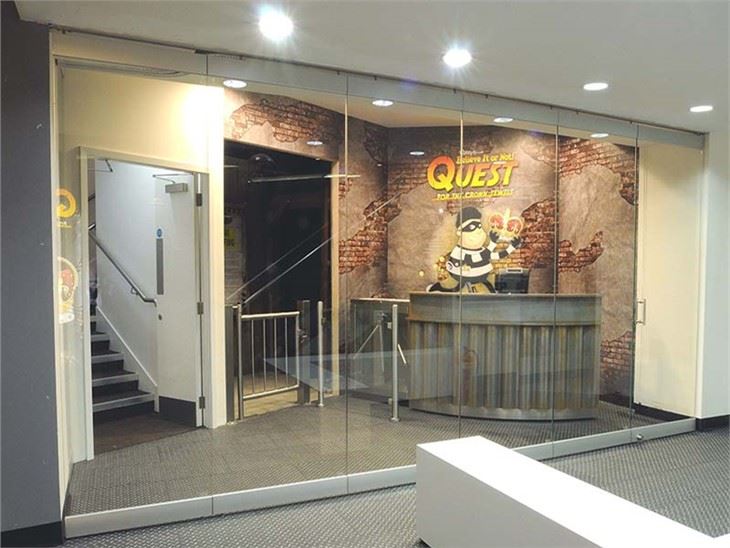

Movable Fullview Frameless Glass Wall

Material: Top and bottom glass clamp + Single Glass
Application: Office, shopping mall, balcony ect.
Color: Customized
Size :Customized
Hardware : stainless steel hardware accessories
Application Office, meeting room
Features: Elegant appearance, full view
Sturdy & Durable : Detachable & Re-use
Moving way : Sliding, sliding and folding.
Installation: Top track suspension, welded by angle steel
...

Send Inquiry

Description of the whole system

Movable Fullview frameless glass wall

Item

Framed glass partition door/ Frameless glass partition door

Partition Height

From 2 meters to 3.6meters

Sound Transmission Class (STC)

From 32db to 42db

Optional Mode

Connected & seperated, sealed & non sealed

Description of accessories

Glass Clamp

Clear anodized 6063-T6 aluminum

Track System

Clear anodized 6063-T6 aluminum track; Imported dupont POM material

Junction

"T" junction, "L" junction, cross/"X" junction

Glass

Standard thickness of 12mm and 10mm for opton


Framed glass partition door

Detailed Description:

The frameless glass partition wall is working as room divider and used to separate the big space into different areas. Panels are made of full-view transparent tempered glass. All vertical and horizontal structural members consist of extruded aluminum components, with a 12mm inserted glass to keep visible for space.

Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 32 db. Glass access door is available for glass partition.

Framed glass partition door Detailed Description

Installation Details:

Track

Movable Fullview Frameless Glass Wall Installation Details
