Removable Foldable Frameless Glass Partition Wall

Details:

Width: 500mm - 1100mm maximum.
Application: Office, meeting room, balcony
Thickness of panels: 46mm
Height: Up to 4000mm.
Weight: Average 32.00Kg/m2 for whole panels
Panel Joint: Clear pvc joint
Finishes: Frosted or clear tempered Glass
Hardware and accessory:high quality stainless steel handle and hinge.
Sound insulation: About STC 32db Package: Plywood case

Send Inquiry

Download

Description

Technical Parameters

Description of the whole system	Removable Foldable Frameless Glass Partition Wall
Item	Framed glass partition door/ Frameless glass partition door
Partition Height	From 2 meters to 3.5 meters
Sound Transmission Class (STC)	From 32db to 42db
Optional Mode	Connected & seperated, sealed & non sealed
Description of accessories
Glass Clamp	Clear anodized 6063-T6 aluminum
Track System	Clear anodized 6063-T6 aluminum track; Imported dupont POM material
Junction	"T" junction, "L" junction, cross/"X" junction
Glass	Standard thickness of 12mm and 10mm for opton

Description of the whole Movable Fullview frameless glass wall system

Movable Fullview frameless glass wall

Detailed Description:

Frameless glass panels are suspended from an overhead track and carrier system- no floor track or guides needed. Partition with top and bottom glass clamp only, full view transparent glass or frosted glass both available.

Partition thickness (Glass clamp thickness) 46mm. Lock by the bottom bolt.

Detailed Description

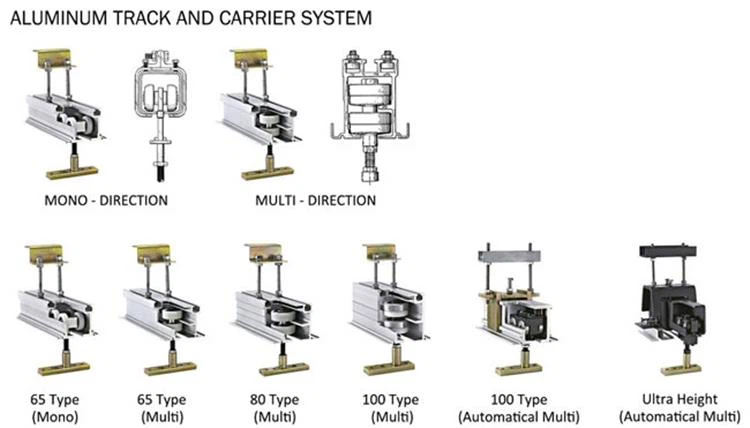

Track Details:

Track

Track Details

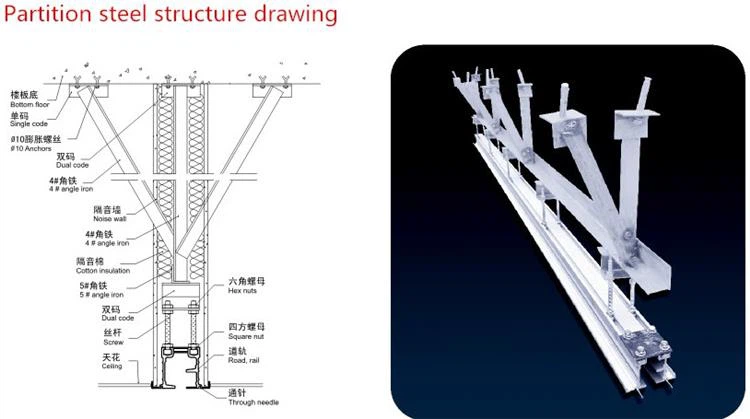

Track Installation Detials:

Track Installation Detials
