Soundproof Partition Wall With Aluminum Track

Product name:Balcony soundproof partition wall with aluminum track
Model:Type65/80/100 movable partition
Panel thickness:65/80/100mm
Model Number:Type65/80/100 anodized aluminum track system
Carrier bearing capacity:225kg/250/380/650kg
Color:silver track
Track Position:top hanging track
Application:light weight partition wall panel
Operation:acrylic partition wall panel
Main structure:Anodized aluminum+aluminum Keel
...

Send Inquiry

Egood's double,corrosion-resistant aluminum track systems are easy to install and easier to intact.Extruding enables each section to have a uniform shape for superior end-to-end alignment.Each capacity-certified track is of extruded architectural grade clear anodized 6063-T6 aluminum.

20210128153431b5b302cc0b194b7387dfa6d5dd286bb4

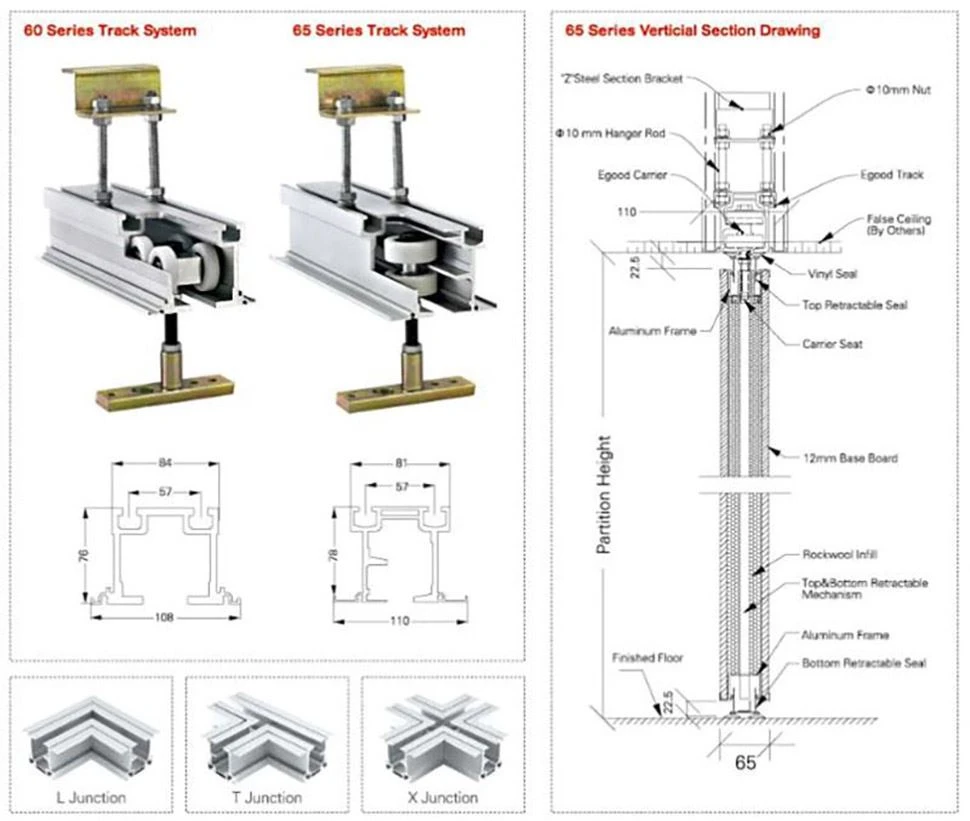

60 Series Track system:

For single or paired panels up to 250kg. One 4-wheeled carrier is provide per panel, each wheel is consists of molded polymer tires on hardened steel ball bearings. Resilient mounted body for quite operation and load distribution, special for center stacking option. Usual dimension from the ceiling to the structure is 200mm.



65 Track System:

For Omani-Directional panel up to 225kg. Two carriers are provided per panel, Each carrier has two horizontal counter-rotating wheels that roll not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200mm.


 202101281453303a7d1717cf95471da66025dffac48243

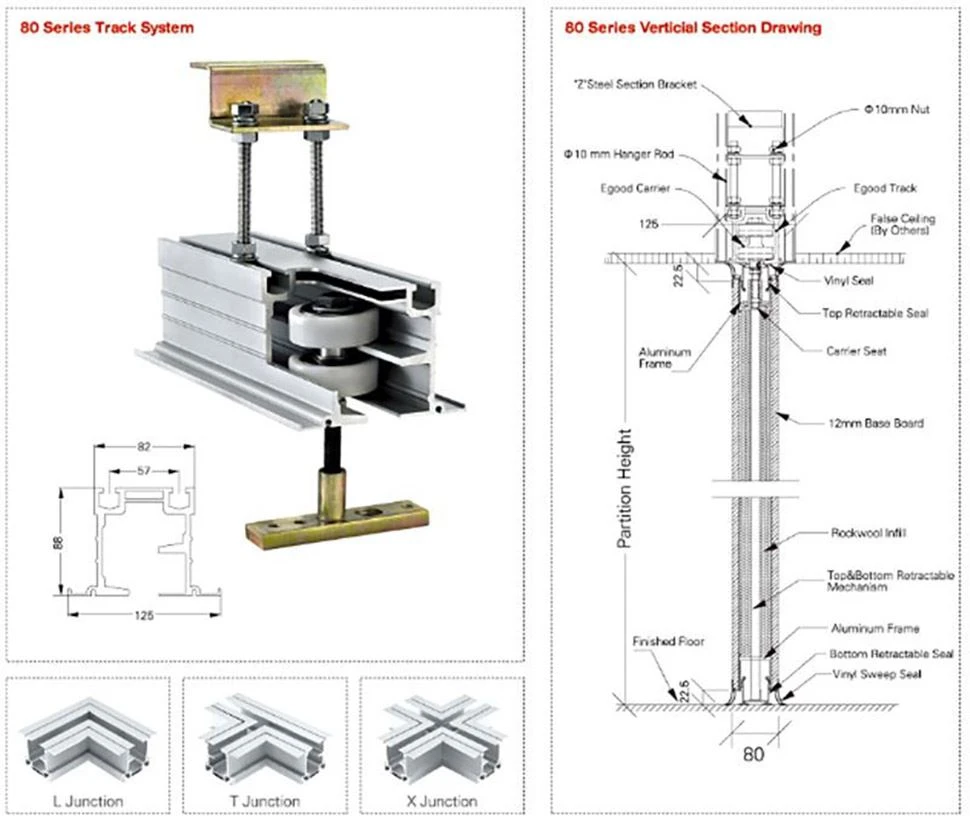

80 Series Track system:

For Omni directional panel up to 380kg. Two carriers are provide per pane. Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square of angled corners without switches. Usual dimension from the ceiling to the structure is 200mm.

202101281453479a7945d1640f491ca32a2c826fd97006_



100 Series Track System:

For Omani-directional panels up to 650kg. Two carriers are provided per panel. Each carrier has two horizontal counter- rotating wheels that roll (not slide) in the track Each wheel has precision ground bearings, encased with POM, steel banded and reinforced. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 250mm.

 202101281453596a07e49498fe47018576b7a6f0df866d_

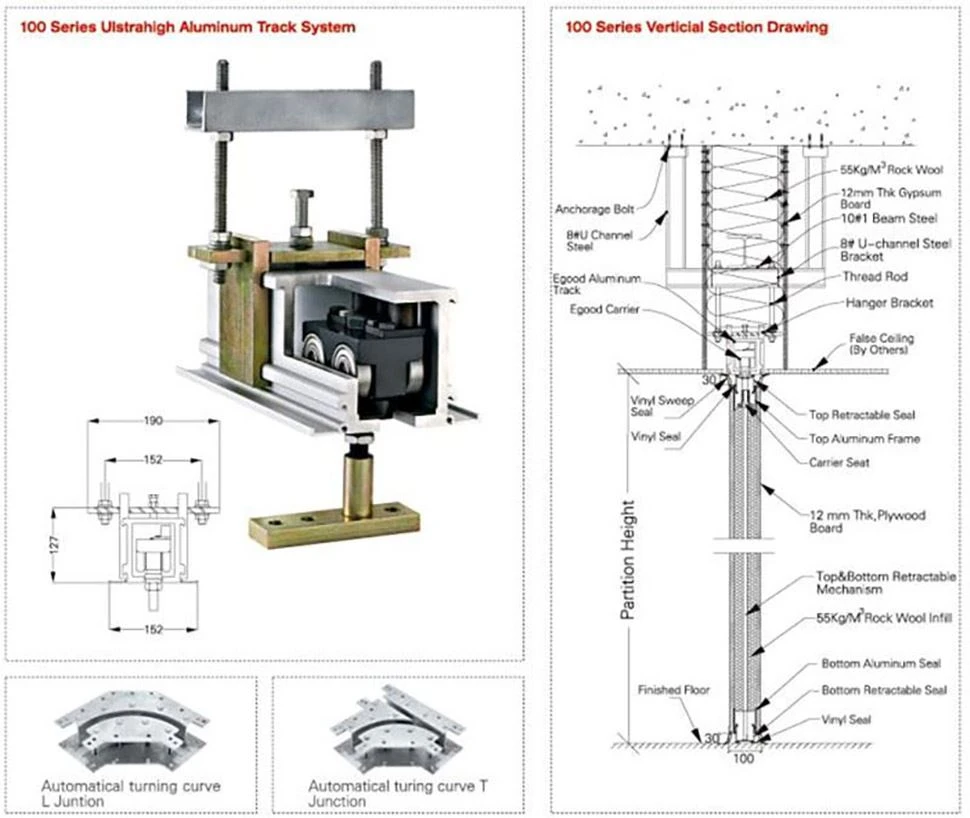

Egood Ultrahigh heavy duty aluminum track system are used when the partition height or weights limit exceed that recommended for the normal aluminum system.Maximum height can reach to 12.5meters with panel weight up to 900kg,each carrier has four steel wheels with precision ground radial bearings.

20210128145416e92eb0e6b7b0461fb9e5a16bf787502a

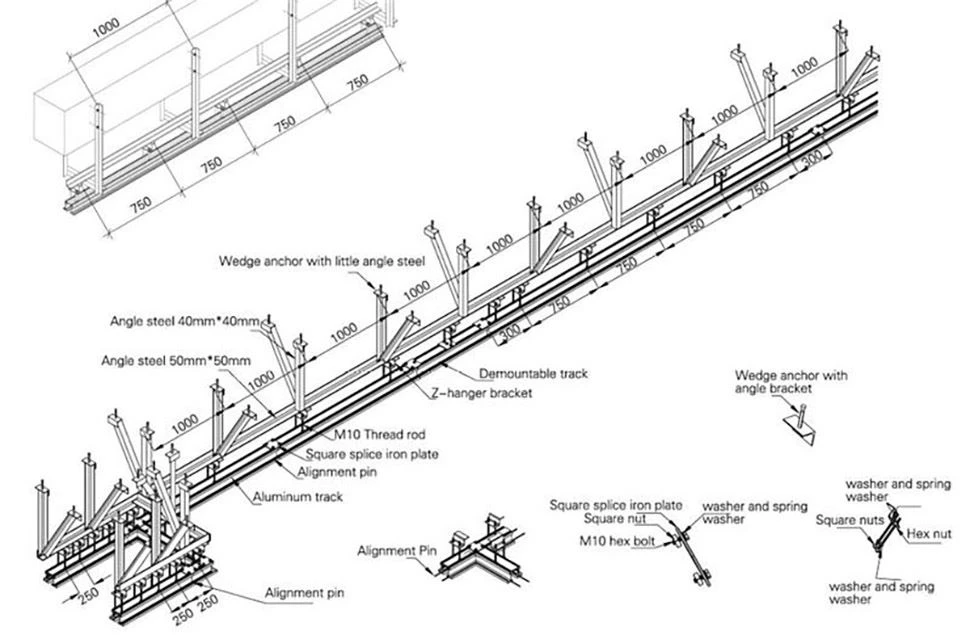

Egood movable wall partition provide the top suspension aluminum track, without any floor guide or track needed. All aluminum track with double,corrosion-resistant, and thickened track. Bottom of track flush with false ceiling level.

202101281454259c8069bdab074ac4986f7ed15114b553
