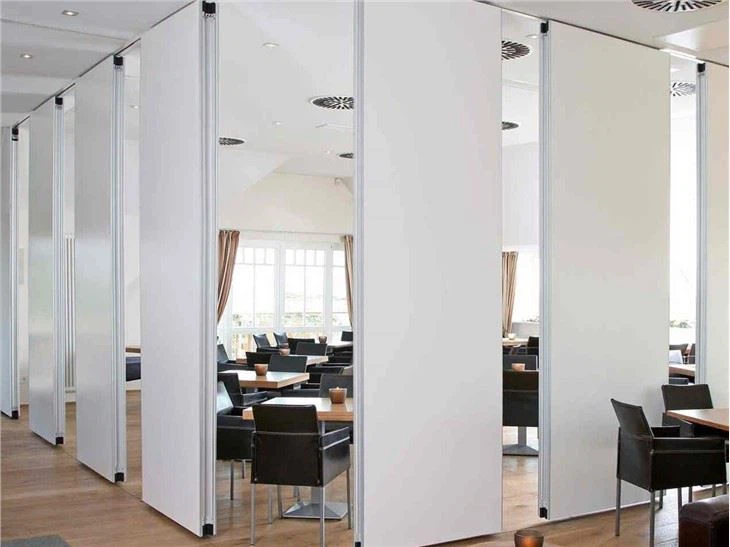

Art Gallery White Board Movable Partition

EGOOD operable partition is made of a high-quality Anodized Aluminum frame with composite materials. The panel has a standard thickness of 65mm/80mm/100mm and a width up to 1230mm. ● Surface finish: HPL,melamine,fabric
● Maximum height: 17000mm
● Soundproof rate: 32-53db ● Track: Heavy duty track ● Operation:sliding and folding ● Height: Up to 15 meter ● Width: 1000-1200mm ● Color: Aluminum sliver ● Materials:6063-T6 ● Application: Hotel,banquet, ballroom...

Send Inquiry

EGOOD operable partition is made of a high-quality Anodized Aluminum frame with composite materials. The panel has a standard thickness of 65mm/80mm/100mm and a width up to 1230mm.

Maximum height can reach 17000mm tall.


Egood works with Architects, designers, developers, contractors and owners in design product selection, decorative finishes, project management, and after-sales warranty services as her one-stop solution business service.


1.Technical data of Type 65 movable partition :




Model


Weigh
(kg/m)


Fire
Ratin
(min)


STC
Perfor
mance

Specification


Thick
ness (mm)


Width
(mm)


Height
(mm)

Top Seal(mm)
/Pressure
(kg)

Bottom
(mm)
/Pressure
(kg)

LCP
stretch
(mm)

EG65-22

22

60

32db

65

680-1212

2000-4500

22.5/35

22.5/35

140

EG65-38

27

60

38db

65

680-1212

2000-4500

22.5/35

22.5/35

140

EG65-45

25

60

45db

65

680-1212

2000-4500

22.5/35

22.5/35

140


2.Technical data of Type 80 movable partition :




Model


Weigh
(kg/m)


Fire
rating
(min)


STC
Perfor
mance

Specification

Thick
ness
(mm)


Width
(mm)


Height
(mm)

Top seal(mm)
/Pressur
(kg)

Bottom
(mm)
/Pressure
(kg)

LCP
stretch
(mm)

EG80-40

30

60

40db

80

680-1212

2000-5500

22.5/35

22.5/35

140

EG80-45

38

60

45db

80

680-1212

2000-5000

22.5/35

22.5/35

140

EG80-48

47

60

48db

80

680-1212

2000-5000

22.5/35

22.5/35

140


3.Technical data of Type 100 movable partition :




Model


Weight
(kg/m)


Fire
Rating
(min)


STC
Performance

Specification

Thick
ness
(mm)


Width
(mm)


Height
(mm)

Top seal(mm)
/pressure
(kg)

Bottom
seal(mm)
/Pressure
(kg)

LCP
Stretch
(mm)

EG100-43

38

60

43db

100

680-1219

2000-7500

30/40

30/40

140

EG100-48

46

60

48db

100

680-1219

2000-7500

30/40

30/40

140

EG100-53

55

60

53db

100

680-1219

2000-7500

30/40

30/40

140


4.Product Description:

■ Basic MDF face - Standard 9mm -12mm thickness for superior acoustic performance

■ Aluminium frames - Available in colour anodizing, and powder coating

■ Top supported without floor track or guide.

■They allow for many different combinations, from glazed concrete sections to doors.

■ customized powder coated color are available.
■ Finishes: Customized painting.

■ Fast delivery and Rich experiences in oversea project installation guide & supervision.

■ Carrier over load: 225-1300Kg.

■ Open Style: Sliding

■ Fixed top sweeps - Retractable seals are required or optional.

■ The tracks are fixed into the ceiling

■ there is large selection of different finishes to choose from.


5.Details of the aluminum profile:


Art Gallery White Board Movable Partition


Egood's double,corrosion-resistant aluminum track systems are easy to install and easier to maintain.


Art Gallery White Board Movable Partition


Extruding enables each section to have a uniform shape for superior end-to-end alignment.


Art Gallery White Board Movable Partition


Each capacity-certified track is of extruded architectural grade clear anodized 6063-T6 aluminum.



To seal the corner,Egood gets its own design about specially developed conically shaped corner pieces that fit closely together,with high density,strong collision,is not easily deformed even at temperature - 100℃. Compared with other same industry manufacturers,Egood has great superiority in both sealing and noise insulation factor for its products.


Art Gallery White Board Movable Partition

The quality of our all products is strictly controlled,only the superior raw material will be used.These are what we always concerned with,please rest assured for our constant strive for excellence.


Art Gallery White Board Movable Partition


Available in a wide range of colors of the finish.


6. Structure of the movable partition :


Structure of the movable partition


Structure of the movable partition


7.View of study:



8.Package:


PackagePackage


9.Certificate:


CertificateCertificate


CertificateCertificate


Certificate


10.Manufacturing process:


Manufacturing process

▲1/Raw Aluminum Material Cutting

Raw Aluminum Material Cutting

▲2/Base Board Material Cutting

Base Board Material Cutting

▲3/Drilling

Drilling

▲4/Frame Assembly

Frame Assembly

▲5/Rockwool Filling

Rockwool Filling

▲6/Base Board Assembly

Base Board Assembly

▲7/Aluminum Joint Strip fixing

Aluminum Joint Strip fixing

▲8/Screw Tightening

Screw Tightening

▲9/Wearing Vinyl Strip

Wearing Vinyl Strip

▲10/Polishing

Polishing

▲11/QC Dimension Inspection

QC Dimension Inspection

▲12/QC Mechanism Inspection

QC Mechanism Inspection

▲13/Finished Production Inspection

Finished Production Inspection

▲14/Cleaning

Cleaning

▲15/Packaging


11.Company information:

Foshan is a prefecture-level city in central Guangdong province southern China and ranked as the largest manufacturing base in the pearl river delta.


The production facility of Egood is strategically located in there because of the availability of vast resources Egood has continued to thrive. Because of its excellent product quality and after-sales.To date, it's business coverage has reached not only every area in China but also extended to over 100 countries.

Egood acoustic operable partitions are used to divide meeting rooms, conference rooms, restaurants and banquet halls, etc.


It provides convenient and effective space management solutions, the panels move on a ceiling track with no requirement of floor guides or rails, it has been extensively applied to the hotel industry.
