Bifold Partition Wall With Aluminum Plate

● Matching Track: Type65/80/100 anodized aluminum track system
● Carrier bearing capacity: 225kg-1300kg
● Panel thickness:65/80/100mm
● Main structure:Anodized aluminum+aluminum Keel

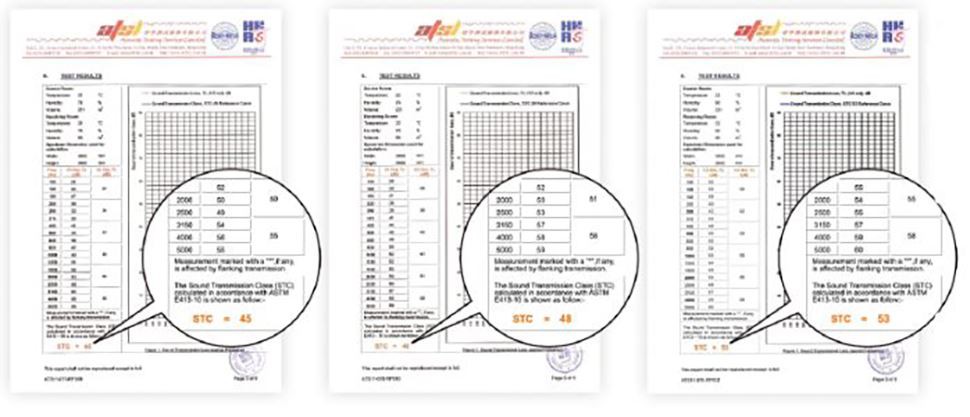

● Sound insulation :STC32-53db
● Max panel height: 17000mm
● Base board:MDF,plywood;
● Rock wool: 55kg/m3
● Surface finish:acoustic fabric.
● Panel profile concealed: optional
...

Send Inquiry

 Matching Track: Type65/80/100 anodized aluminum track system

 Carrier bearing capacity: 225kg-1300kg

 Panel thickness:65/80/100mm

 Main structure:Anodized aluminum+aluminum Keel

 Sound insulation :STC32-53db

 Max panel height: 17000mm

 Base board:MDF,plywood;

 Rock wool: 55kg/m3

 Surface finish:acoustic fabric.

 Panel profile concealed: optional


202101281445406f8874b274f5446c8ed56e1cddf73c0d

8

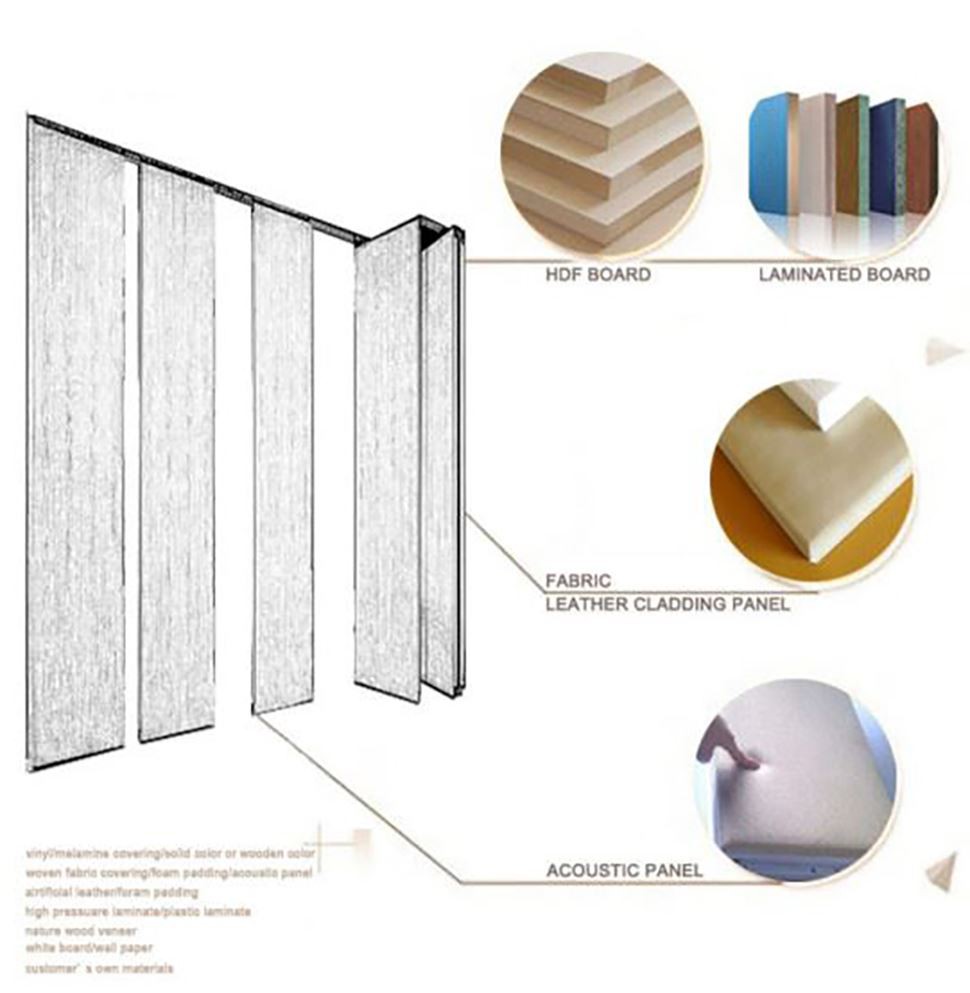

The finish of panel surface will be as per the client’s requirement, the sliding panel can be supplied in FABRIC Finish from our factory, the fabric color / pattern will be as per Architect choice to match with Interior design. The fabric can directly paste on sliding wall panel OR by using PVC fabric gripper and acoustic foam pads which will control Noise Reflection from Movable wall partition also give very good aesthetic look.



Egood, the leading Manufacturers & Suppliers of Finishing Movable wall Partition that provide Good performance for sound insulation for noise control from indoor.

Transform a plain wall into a custom accent piece by adding upholstered wall panels. Since they can be made to your unique measurements, it’s possible to add them to any indoor space. With some our colorful array of fabrics, you can add stunning decoration to your home.


20210129151138c698788174614ef7b9f2e22c8dc464ac

20210130170040b1eb3af1ee6d471e972fc44389be4267_01.jpg20210130170040b1eb3af1ee6d471e972fc44389be4267_02


And sound Absorbing Fabric makes for a soft, attractive, sound-absorbing wall covering to improve speech intelligibility. Acoustic wall fabric is an easy way to soften the sound and reduce reflections in the speech range. The acoustical fabric is made of a recycled polyester blend fiber for its inherent stain resistance, durability and easy maintenance.


20210129161155286b77e098794b2ca1636b6e62abce6f




This acoustical wall fabric is available in a wide variety of colors and is easily applied with a heavy-duty wall-covering adhesive, leaving a seamless finish.  Acoustical fabric has a sound absorption rating of NRC 0.20, is Class A fire rated and passes the corner burn test NFPA-265.



2021012915415896e8f9baba604371ad835b251ec83619
