Fire Resistant Exhibition Hall Operable Wall

Fire Resistant Exhibition Hall Operable Wall

● Model Number :Type65/80/100 operable partition
● Matching Track: Type65/80/100 anodized aluminum track system
● Carrier bearing capacity: 225kg-1300kg
● Panel thickness:65/80/100mm
● Main structure:Anodized aluminum+aluminum Keel
● Sound insulation :STC32-53db
● Max panel height: 17000mm
● Base board:MDF,plywood;
● Rock wool: 55kg/m3
● Surface finish:acoustic fabric.
● Panel profile concealed: optional
● Fabric panel thickness:12/15mm
● Package: paper carton,plywood case,wooden pallet
● Price range:usd80-usd180/m2
● Delivery time :2-4 weeks...

Send Inquiry

Type

Operable wall

Sound insulation

32-53db

Brand Name

Egood Partition

Place of Origin

Foshan city, China

Model Number

TYPE65,85,100

Glass wool infill

60kg/m³

Finishing option

Melamine,fabric,leather,HPL,wall paper etc.

Panel thickness

65,80,100mm

Track

Anodized aluminum 6063-T6

Height

Max 17meter

Main frame

Anodized aluminum 6063-T6

Carrier materials

Imported POM

Base board

12mm thinckness Plywood and MDF board

Carrier over load

225-1300Kg


Fire Resistant Exhibition Hall Operable Wall

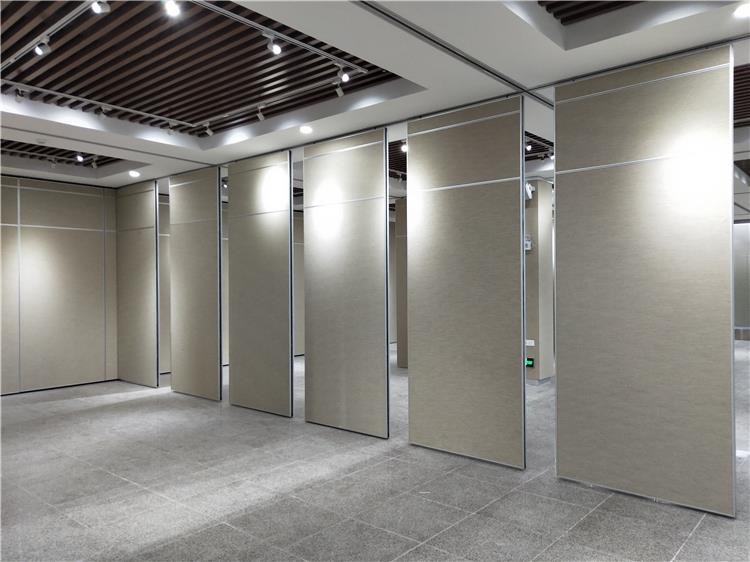

Movable walls are specified where functional space delineation is an integral element within the partition project.

Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization.Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.


Egood partition has Type65, Type80, Type100 and Ultrahigh 125 series.

Fire Resistant Exhibition Hall Operable Wall

Fire Resistant Exhibition Hall Operable Wall

Fire Resistant Exhibition Hall Operable Wall

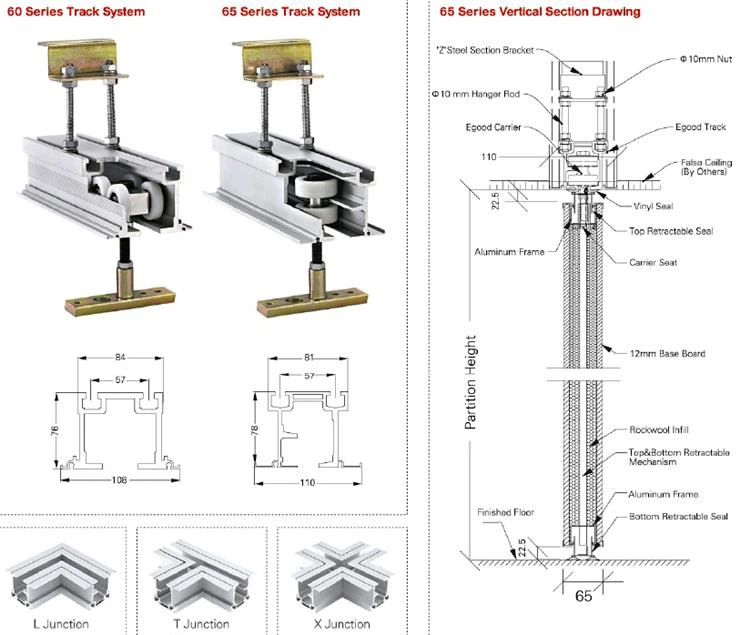

The height and weight of panel determines which kind of track to be adopted. Egood ultrahigh steel and aluminun track is applied for Type100 and Type125 operable wall which are with the height more than 12.5 meters high. The ultrahigh aluminum and steel track are with excellent bearing capacity.

Fire Resistant Exhibition Hall Operable Wall

Fire Resistant Exhibition Hall Operable Wall


Egood provides many stacking options for client's choice. Stacking and storing the partiiton, versatilely and skillfully designed storage system is essential in space management. It ensures each panel is placed and spaced for easy retrieval and storage, and minimieses the storage space. The illustration below give examples of standard stacking configurations, many more can be offered depending upon the building. Fabrication of track junctions are assemble in our factory, ensuring accurate alignment and fast installation on site.

Fire Resistant Exhibition Hall Operable Wall
