Fire Rated Sound Absorbtion Partitionning Wall

● Model Number :Type65/80/100 operable partition
● Matching Track: Type65/80/100 anodized aluminum track system
● Carrier bearing capacity: 225-1300kg
● Panel thickness:65/80/100mm
● Panel profile concealed: optional
● Main structure:Anodized aluminum+aluminum Keel
● Sound proof rate :STC32-53db
● Max height: 17000mm
● Base board:MDF,plywood;
● Rock wool: 55kg/m3
● Finishes options:melamine, HPL, acoustic fabric and artificial leather, acoustic panel, wood veneer, mirror steel.
...

Send Inquiry

Being a professional wall partitions expert, we have built a reputation for flexible space design assistance, quality products and installation advice. We are fully committed to how our partnership can increase your success – not just for your facilities but also for your overall business.

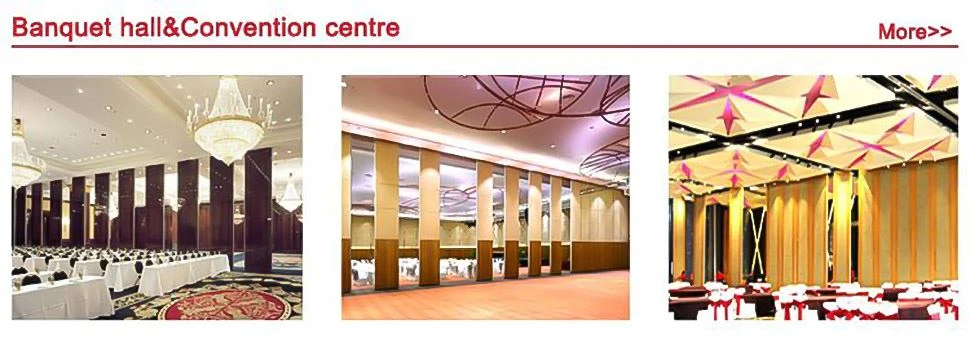

2021011817334693fef572b478432d9f5752b0aecbecf920210120103939f87a13a16f514530bd2c82a298b5ee92

Technical data of Type 65 movable partition :

Model

Weight
(kg/m)

Fire Rating(min)

STC Performance

Specification

Carrier

Thickness
(mm)

Width(mm)

Height(mm)

Top Seal(mm)/ Pressure(kg)

Bottom Seal(mm)/ Pressure(kg)

LCP stretch (mm)

EG65-32

22

60

32db

65

680-1212

2000-4500

22.5/35

22.5/35

140

60#
65#
80#

EG65-38

27

60

38db

65

680-1212

2000-4500

22.5/35

22.5/35

140

EG65-45

35

60

45db

65

680-1212

2000-4500

22.5/35

22.5/35

140

Technical data of Type 100 movable partition :

14

61897-5262809_202101201101546badba755e1647179f88648b75d02061

20210118174153062bf25e7c664a5091150a07611552d3_02
