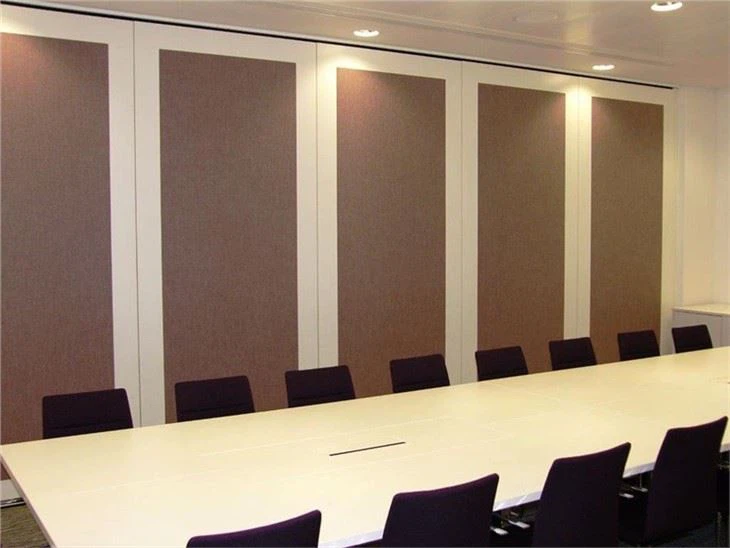

Callapsible Partition Wall For Meeting Room

Details:

● Model Number :Type65/80/100 operable partition
● Matching Track: Type65/80/100 anodized aluminum track system
● Carrier bearing capacity: 225-1300kg
● Panel thickness:65/80/100mm
● Panel profile concealed: optional
● Main structure:Anodized aluminum+aluminum Keel
● Sound proof rate :STC32-53db
● Max height: 17000mm
● Base board:MDF,plywood;
● Rock wool: 55kg/m3
● Finishes options:melamine, HPL, acoustic fabric and artificial leather, acoustic panel, wood veneer, mirror steel.

Send Inquiry

Download

Egood-Catalog-2025.pdf

Description

Technical Parameters

Acoustic Wall Partitions

Our acoustic wall partitions are ceiling mounted movable partition wall without floor track, which not only help to divide the space, but also have excellent sound insulation performance. Theses wall partition systems are widely used as hanging wall dividers in banquet hall, hotel, tea house, inspection hall, function room, station, club, art center, stadium, sports center, art museum, the court, convention center, conference center, golf club, etc.

2021011817334693fef572b478432d9f5752b0aecbecf9 20210120103939f87a13a16f514530bd2c82a298b5ee92

Technical data of Type 65 movable partition :

Model	Weight (kg/m)	Fire Rating(min)	STC Performance	Specification						Carrier
Model	Weight (kg/m)	Fire Rating(min)	STC Performance	Thickness (mm)	Width(mm)	Height(mm)	Top Seal(mm)/ Pressure(kg)	Bottom Seal(mm)/ Pressure(kg)	LCP stretch (mm)	Carrier
EG65-32	22	60	32db	65	680-1212	2000-4500	22.5/35	22.5/35	140	60# 65# 80#
EG65-38	27	60	38db	65	680-1212	2000-4500	22.5/35	22.5/35	140
EG65-45	35	60	45db	65	680-1212	2000-4500	22.5/35	22.5/35	140

Technical data of Type 80 movable partition :

Model	Weight (kg/m)	Fire Rating(min)	STC Performance	Specification						Carrier
Model	Weight (kg/m)	Fire Rating(min)	STC Performance	Thickness (mm)	Width(mm)	Height(mm)	Top Seal(mm)/ Pressure(kg)	Bottom Seal(mm)/ Pressure(kg)	LCP stretch (mm)	Carrier
EG80-40	30	60	40db	80	680-1212	2000-5500	22.5/35	22.5/35	140	65# 80# 100#
EG80-45	38	60	45db	80	680-1212	2000-5500	22.5/35	22.5/35	140
EG80-48	47	60	48db	80	680-1212	2000-5500	22.5/35	22.5/35	140

Technical data of Type 100 movable partition :

Model	Weight (kg/m)	Fire Rating(min)	STC Performance	Specification						Carrier
Model	Weight (kg/m)	Fire Rating(min)	STC Performance	Thickness (mm)	Width(mm)	Height(mm)	Top Seal(mm)/ Pressure(kg)	Bottom Seal(mm)/ Pressure(kg)	LCP stretch (mm)	Carrier
EG100-43	38	60	43db	100	680-1219	2000-7500	30/40	30/40	140	65# 80# 100#
EG100-48	46	60	48db	100	680-1219	2000-7500	30/40	30/40	140
EG100-53	55	60	53db	100	680-1219	2000-7500	30/40	30/40	140
