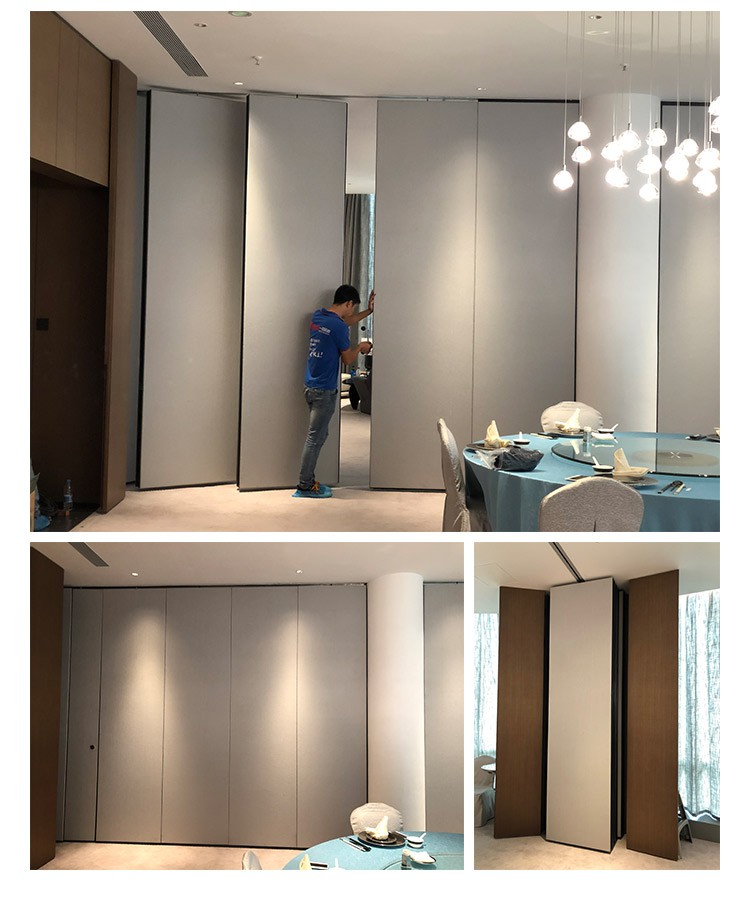

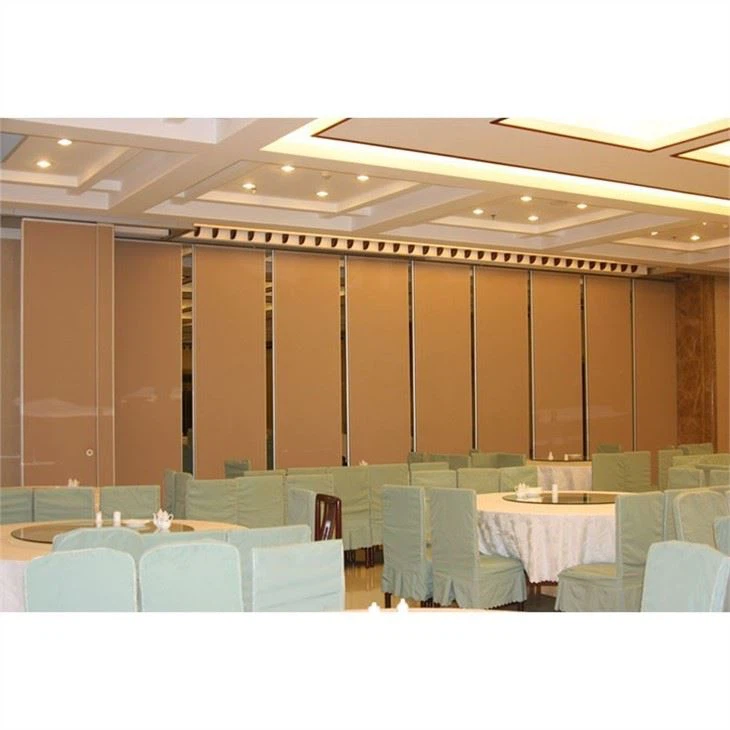

Hotel Restaurant Movable Partition Wall

Hotel Restaurant Movable Partition Wall

● Surface finish: HPL,melamine,fabric ● Maximum height: 20000mm ● Soundproof rate: 32-56db ● Track: Heavy duty track ● Operation:sliding and folding ● Height: Up to 6 meter ● Width: 1000-1200mm ● Color: Aluminum sliver ● Materials:6063-T6 ● Application: Hotel Restaurant room

Send Inquiry

System Code

AE55

AE65

AE85

AE100

Suspension

single/double suspension

single/double suspension

single/double suspension

double suspension

Coordinate Track System

L300,L450

L300, L450, L500

L500, L600, L800, L1000,G2000

L500, L600, L800, L1000,G2000

Roller

Dupont POM material

Dupont POM material

Dupont POM material/steel roller with safety steel wire

Dupont POM material/steel roller with safety steel wire

Track Load- bearing/2 rollers/mtr

L300: 300kg

L450: 450kg

L300: 300kg

L450: 450kg

L500: 500kg

L500: 500kg; L600: 600kg L800: 800kg; L1000: 1000kg G2000: 2000kg

L500: 500kg; L600: 600kg L800: 800kg; L1000: 1000kg G2000: 2000kg

Panel THK

55mm

68mm

90mm

105mm

Panel

Configuration:

Coating THK: um

Wesbster Hardness: hw

1.Frame:6061-12um-15hw

2.Keel:1.0mm hot dip galvanizing steel

3.Rockwool:55kg /m³

4.Base Board THK:9mm

1.Frame:6061-12um-15hw

2.Keel:1.0mm hot dip galvanizing steel

3.Rockwool: 55kg/m³

4.Base Board THK:9mm

1.Outer frame:6061-12um-15hw

2.Inner frame: 3.0mm hot dip galvanizing steel inner frame+1.2mm hot dip galvanizing steel keel

3.Rockwool:100kg/m³

4.Board THK:15mm

1.Outer Frame:6061-12um-15hw

2.Inner Frame: 3.0mm hot dip galvanizing C-shape steel+1.2mm hot dip galvanizing square steel tube

3.Rockwool:100kg/m³

4.Board THK:15mm

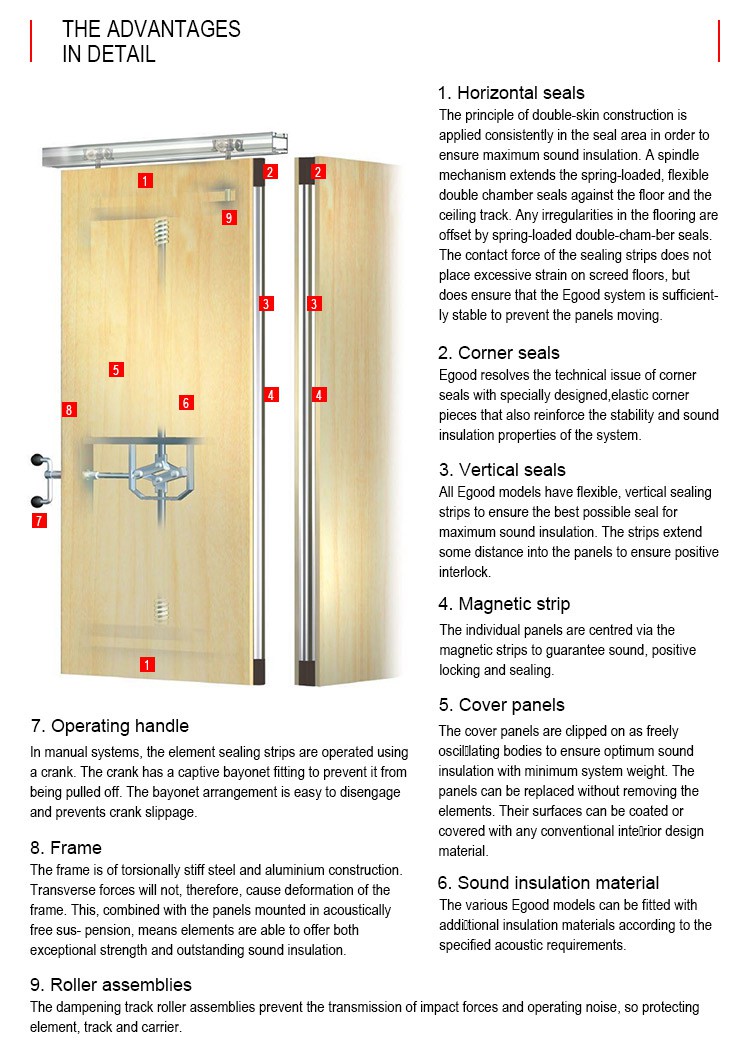

Side seal

Concave & convex profile with 40N magnetic strip and rubber seal

Concave & convex profile with 40N magnetic strip and rubber seal

Concave & convex profile with 40N magnetic strip and rubber seal

Concave & convex profile with 40N magnetic strip and rubber seal

Retractable seal

Top & bottom

Top & bottom

Top & bottom

Top & bottom

Mechanism

jack lifting of power 10KN

jack lifting of power 10KN

jack lifting of power 10KN

jack lifting of power 10KN

Locking

clockwise rolling

clockwise rolling

clockwise rolling

clockwise rolling

Infilled materials

55kg/m³ glass wool

55kg/m³ glass wool

100kg/m³ rockwool

100kg/m³ rockwool

Soundproof treament

steel sheet, sound dampening mat, acoustic panel etc.

Base board

9mm plywood/MDF/HDF//HPL etc.

9mm plywood/MDF/ HDF//HPL etc.

15 mm /18mm plywood /MDF/HDF/HPL

15 mm /18mm plywood /MDF/HDF/HPL

Surface finish

Bare board, plywood, melamine, fabric, PU, HPL, wood ect./customized

STC

32-42db

38-45db

45-52db

45db - 56db

Weight

22-35kg/㎡

30-47kg/㎡

38-60kg/㎡

38-60kg/㎡

Fire retartdant

Optional

Optional

Optional

Optional

Applicable Height

2m to 3m

2m to 4.5m

2.5m to 5m

5m to 20m

Passing door

Single/double leaf

Single/double leaf

Single/double leaf

Single/double leaf
