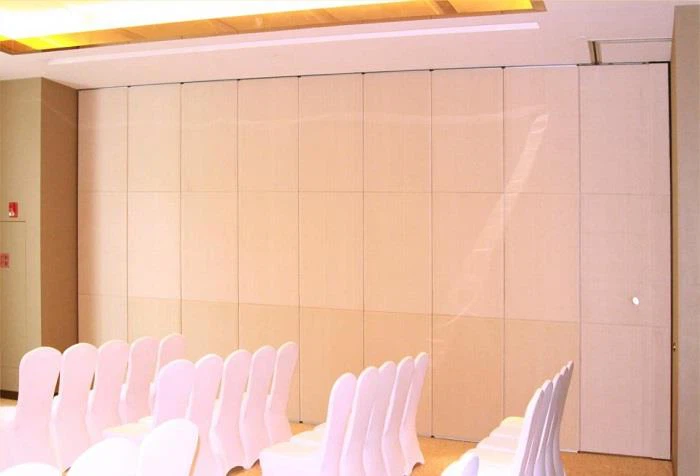

Meeting Room Whiteboard Movable Partition

​Egood operable wall partition is made of high quality anodized aluminum frame with environmental composite materials. The panels move on a ceiling track without requirement of floor guides or rails. The panel has a standard thickness of 65-100mm and a width up to 1230mm.Maximum height can reach 17000mm tall....

Send Inquiry

Egood operable wall partition is made of high quality anodized aluminum frame with environmental composite materials. The panels move on a ceiling track without requirement of floor guides or rails. The panel has a standard thickness of 65-100mm and a width up to 1230mm.Maximum height can reach 17000mm tall.


Meeting Room Whiteboard Movable Partition


The movable partition consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals. Standard profile color is clear anodized aluminum,custom powder coating colors are available. The panel is with writable white board finish, the white board can be magnetic and pen holder is available. The panel is infilled with 60kg/m³ rock wool, double 0.8mm steel sheet and 3mm sound damping felt can be added if high sound proof is needed.


Meeting Room Whiteboard Movable Partition


■Model Number :Type65/80/100 operable wall

■Matching Track: Type65/80/100 anodized aluminum track system

■Carrier bearing capacity: 225-1300kg

■Panel thickness:65/80/100mm

■Main structure:Anodized aluminum+aluminum Keel

■Sound insulation :STC32-53db

■Max height: 17000mm

■ Panel locking way: 180 degree cranking

■base board:MDF,plywood;

■Rock wool: 60kg/m3

■Pass door: single/double leaf pass door

■Finishes options:melamine,writable white board, acoustic fabric, artificial leather, acoustic panel, HPL.

■Pen holder: available

■Package: paper carton,plywood case,wooden pallet

■Price range:usd80-usd180/m2

■Delivery time :2-4 weeks


Egood partition works with Architects,designer, project manager,contractor and owners of project ect. We dedicate to supply first class quality movable partition products for all of our clients and offer them installation guidance like drawing, videos, we can also send experienced installation team if needed.


Technical data of type 80 movable partition:


Model

Weight
(kg/m)

Fire Rating(min)

STC Performance

Specification

Carrier

Thickness
(mm)

Width(mm)

Height(mm)

Top Seal(mm)/ Pressure(kg)

Bottom Seal(mm)/ Pressure(kg)

LCP stretch (mm)

EG65-32

22

60

32db

65

680-1212

2000-4500

22.5/35

22.5/35

140

60#
65#
80#

EG65-38

27

60

38db

65

680-1212

2000-4500

22.5/35

22.5/35

140

EG65-45

35

60

45db

65

680-1212

2000-4500

22.5/35

22.5/35

140


Technical data of type 80 movable partition


Technical data of type 80 movable partition


Product Composition:


Product Composition


Optional finish:


Optional finish


There are wide of range face finishes are available: melamine faced MDF or Plywood, fabric, carpet, fabric, artificial, leather, wood veneer, high pressure laminate, Formica, acoustic panel, white boad ect., panels may also be supplied unfinished for field decoration, Standard frame color is clear anodized aluminum, custom powder coating colors are available.


Steel structure upon the ceiling:


Steel structure upon the ceiling


Stack systems:


Stack systems


■ Curved corner joint for smoother push and pull

■ The track is equipped with guiding devices for automatic steering turn

■ With aluminum alloy edge covered, better with ceiling suited

■ High-strength steel with high load-bearing capacity

■ Long service life and better safety performance

■ Load capacity 3500kg/m, suitable for partitions of 9 meters or more

■ The highest level is 17 meters domestically.


Product detailed:


Product detailed


Egood' s double, corrosion-resistant aluminum track systems are easy to install and easier to intain. Extruding enables each section to have a uniform shape for superior end-to-end alignment.

Each capacity-certified track is of extruded architectural grade clear anodized 6063-T6 aluminum.


Egood's double, corrosion-resistant aluminum track systems


To seal the corner, Egood gets its own design about specially developed conically shaped corner pieces that fit closely together, with high density, strong collision, is not easily deformed even at temperature - 100℃. Compared with other same industry manufacturers, Egood has great superiority in both sealing and noise insulation factor for its products.


Egood's double, corrosion-resistant aluminum track systems


The quality of our all products is strictly controlled,only the suuperior rawmaterial will be used.These are what we always concerned with, please rest assured for our constantly strive for excellence.


Stacking parking option:


Egood's double, corrosion-resistant aluminum track systems


Application scenario:


Application scenario


The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of maximum STC-48 in laboratory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant, schools, office, religion, hospitals, shopping arcades and many other indoor applications product.


Our teams:


Our teams


Egood works with Architects,designer,developers,contractores and owners in design product selection, decorative finishes, project management and after-sales warranty services as her one-stop solution business service.


Production equipment:


Production equipment


Production Process:


Production Process


The quality of our all products is strictly controlled,only the superior rawmaterial will beused. These are what we always concerned with, pleaserest assured for our constantly strive for excellence.




FAQ:

Q: What finish options you have for partition?
A: We have several options.We can supply you bare MDF,bare plywood or gypsum board for your own decoration,We can also supply melamine laminate,high pressure laminate, wood veneer,fabric,PU and soon.It dependson your requirement.


Q: Are you a manufacturer or trading company?
A: We are the biggest movable wall partition manufacturer in Foshan city.We have worked for this business over 20 years. Our factory is located in Nanhai district,Foshan city.You are warm welcome to visit us!


Q: How to install the partition? Will it difiult to be done?

A: It is not difucult to installe our partitions.Our partitions are top supported system without any floor track inneed.So top structure will be very important.We have very detailed drawings and videos showing how toinstall,so your people just need to follow them step by step.


Q: Can you send engineer to install? What will the cost be?
A: Sure.We have two options regarding the intallation.The first option is that we will send one engineer assupervisor.He will instruct your workers to do the job but won't do the installation by himself.The second option is that there will be two installers (at least two) to install movable walls. They will install the system by themselves. At the same time, they also need the asstance from local labour.


Q: Where is your office? Do you have officec in overseas?
A: So far we don't have office in overseas,our office is located in Nanhai Foshan city.But we have local distributor for some countries,you can kindly consult our people about the overseas distributor information.


Q: Are your products guranteed?

A: Yes,all of our products carry a full 1 Year gurantee,coverig all parts and defects.We can also providean extended arrantee if require and the products are expected to last a lifetime.
