Church Building Acoustic Panel Removeable Partition

● Surface finish: HPL,melamine,fabric, leather

● Maximum height: 2500-17000mm

● Soundproof rate: 32-53db

● Track: Heavy duty track

● Operation:sliding and folding

● Height: Up to 15 meter

● Width: 1000-1200mm

● Color: Aluminum sliver

● Materials:6063-T6

● Main Function: Movable wall panel to divide the space

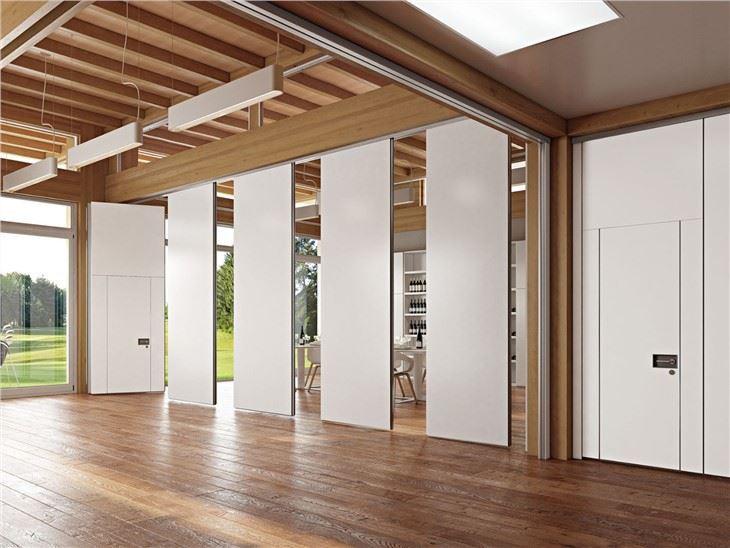

Fabric acoustic panel finish also called fabric acoustic padding finish, fabric with foam finish, it is fabric wrapped 10mm foam with 5mm plywood baseboard. Total panel finish 15mm. Dimension of padding maximum 1220x2440mm. The foam can absorb the sound, improve sound performance in church building, create a silent environment.

Movable walls are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization.

Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.

To create a better sound insulation movable partition wall, we put high density glass wool inside of the partition frame, adding steel sheet, sound damping felt inside of the partition.

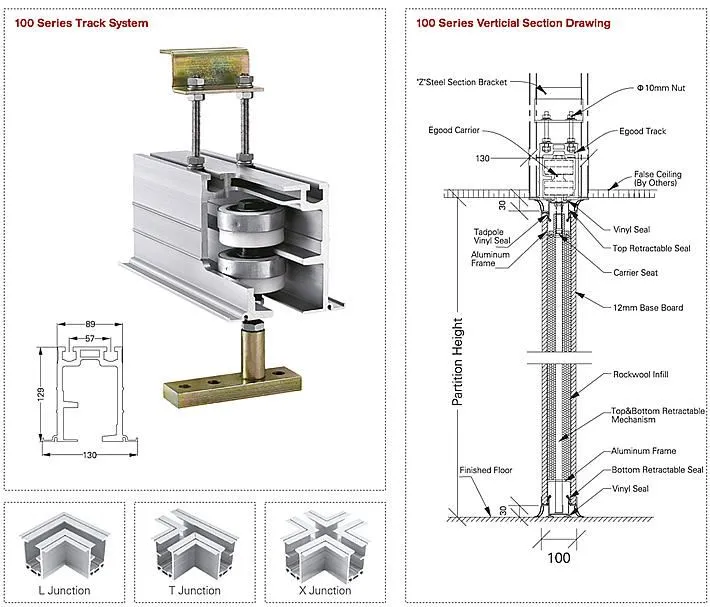

Vertical view of the partition:
