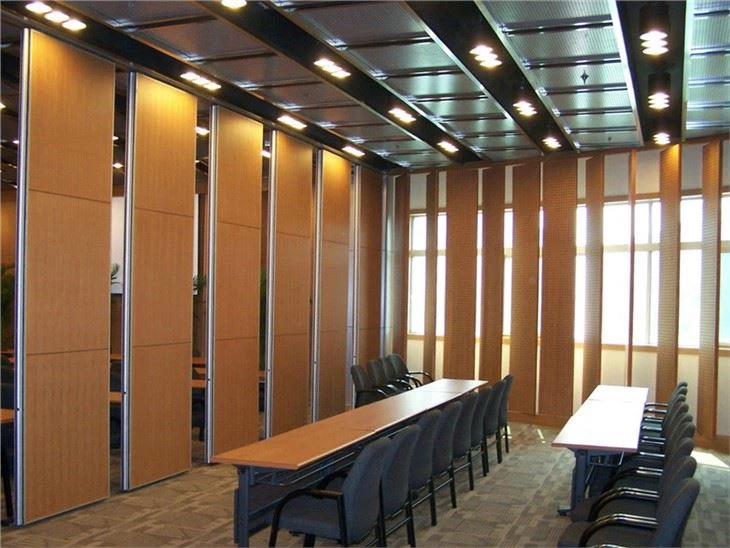

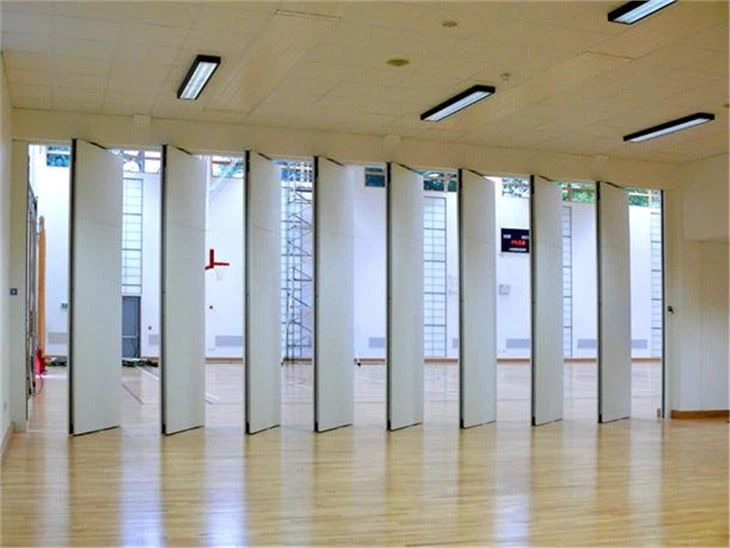

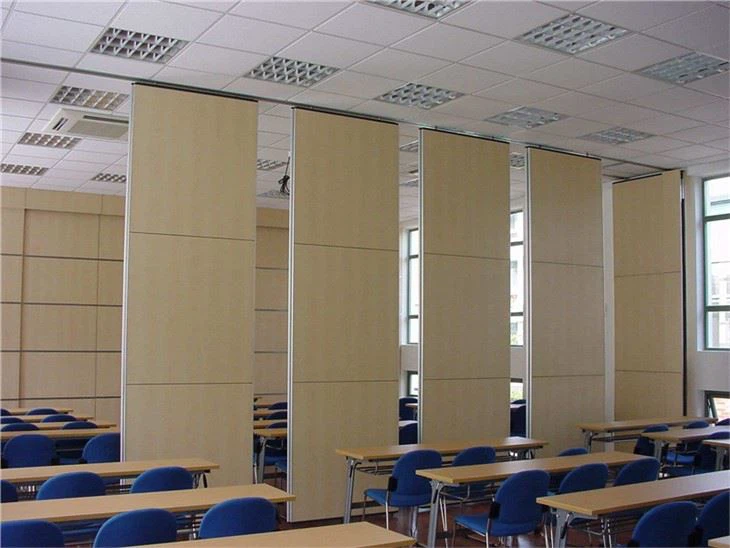

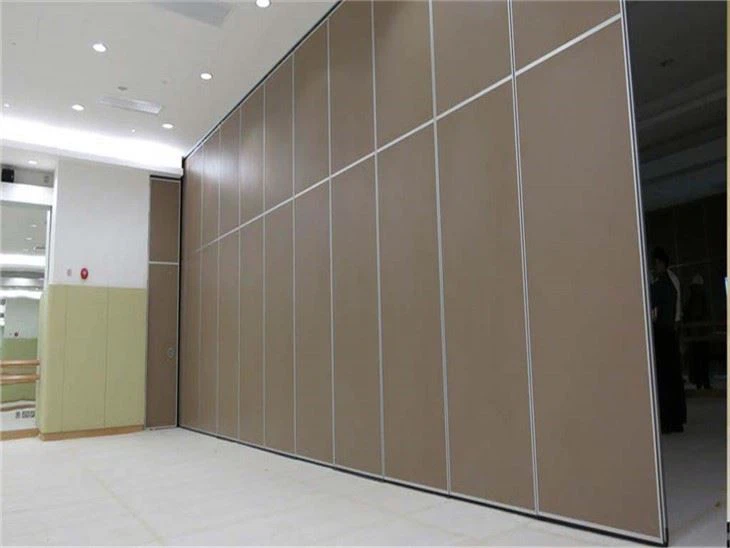

Product name:Moving School Demount-able Partition with Aluminum Track
Framework Color: Aluminum sliver
Framework Materials:6063-T6
Panel suspension：Top hung only
Track system：Single or twin point
Vertical profiles：Aluminum anodized with sealing profiles
Retractable seals：Aluminum black with double rubber seals
Operation of seals：Manual, with supplied operating handle
Locking：Optional lock to pass doors
Pass doors：Single open in panel or double open in two panel
The operable wall partition is working as room divider and used to separate the big space into different areas. Panels are precision laminated, per-finished with vinyl, fabric or other specified finish. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 32 to 53dB.
Type100 movable partition is made of clear anodized aluminum frame, special made rubber, excellent sound insulation glass-wool, base board etc. The panel is flat and hard which is hung by aluminum track system, the roller is made from durable DuPont POM material and strengthen bearing. The panels can be stacked in many different ways flexibly.
100 Series Track System:
For Omani-directional panels up to 650kg. Two carriers are provided per panel. Each carrier has two horizontal counter- rotating wheels that roll (not slide) in the track Each wheel has precision ground bearings, encased with POM, steel banded and reinforced. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 250mm.
Type100 movable partition has mechanism fixed inside. When the crank handle is rotated by 180 degree, top and bottom retractable seal will be expanded to lock the panel stably.
