Sound Insulated Type 80-85 Movable Partition

● Top hung system without floor track;
● Sound insulation coefficient STC 32 to 55db based on the material choose;
● Thickness panel:80mm
● Panel frame color: customized.
● Parking way: customized according site condition.
● Moving way: Slding.
● Height : From 2meters to 5meters;
● Surface finish color : Customized;
● Infill materials: Acoustic rockwool.
● Finish:Wood Veneer, Melamine. Leather, Fabric, Glass…...

Send Inquiry

Description of the system

Item

Movable partitionl

Applicable height

5.5 meters

STC(dB)

40-48db

Description of the partition wall

Thickness

80/85mm

Width(min/max)

680-1230mm

Height(min/max)

2000-5500mm

Suface Material

MDF, Melamine board, Hard fabric, Soft fabric, etc.

Main Material

6063-T6

Net Wight

30-38(Kgs/m2)


Sound Insulated Type 80-85 Movable Partition

The movable partition is working as room divider and used to seperate the big space into different areas. Panels are precision laminated, pre-finished with vinyl, fabric or other specified finish. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 32 to 53dB.

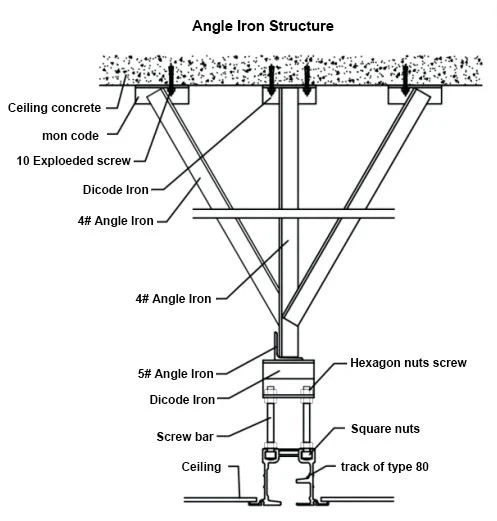

The type 80/85 movable partition is hung by ceiling track and no need of floor track, it provides a flexible way to move the panel and makes no difference on floor. The ceiling track is fixed under the steel structure or concrete slab directly.

Sound Insulated Type 80-85 Movable Partition

Sound Insulated Type 80-85 Movable Partition

The type 80/85 movable partition is not only flexible in room divsion, but also in stacking way. The panels can be stacked at side or defined storage room, therefore, it won’t affect overall room design.

Sound Insulated Type 80-85 Movable Partition

Sound Insulated Type 80-85 Movable Partition


FAQ:

Q: What are the completion options for the partition?

A: We have many choices. We can provide you with bare MDF, bare plywood or gypsum board for your own decoration. We can also provide melamine laminates, high pressure laminates, veneers, fabrics, polyurethane, etc. depending on your requirements.



Q: Are you a manufacturer or a trading company?

A: We are the largest manufacturer of movable partition wall in Foshan. We have worked for this company for more than 20 years. The factory is located in Nanhai District, Foshan City, warmly welcome your presence!



Q: How do I install partitions? Do you have to do this?

A: It's not difficult to install our partition. Our zoning is a top-level support system and it will be very important not to need any ground track structure. We have very detailed drawings and videos showing how to install, so your people just need to step by step.



Q: Can you send an engineer to install it? How much is the charge?

A: Of course. We have two installation options. The first option is for us to send an assistant engineer. He will command your workers to do the work, but he will not install it himself. The second option is to have two installers (at least two) install the movable wall. They will install the system themselves. At the same time, they need the support of local workers.



Q: Where is your office? Do you have an office overseas?

A: So far, we have no offices overseas. Our office is located in Nanhai District, Foshan City, but we have local distributors in some countries. You can ask our people about overseas distributors.



Q: Is your product guaranteed?

A: Yes, all our products have a full one-year warranty, including all parts and defects. If necessary, we can also provide extended warranty period, product life expectancy.
