Hotel Sliding Folding Partition

Product name:High Pressure Laminated hotel sliding folding partition
Model Number:Egood-65
Application:Hotel
Place of Origin:Guangdong China
Panel Thickness :Egood-65=65MM
Surface:High Pressure Laminated
Color:customized
Brand Name:Innofold
Suspension type:double suspension
Package Type:Carton package
...

Send Inquiry

High Pressure Laminated hotel sliding folding partition

Height (maximum height): 4500mm

Width: 750~~1230mm

Thickness: 65mm

Left and right telescoping: 140mm

Stretching up and down: 45mm

Partition weight: 32kg/

Certificate: ISO9001

Track: Top suspension Track


732306184738927048



Egood-65 sliding folding partition is made of high quality Anodized Aluminum frame with composite materials. The panel has a standard thickness of 65mm and a width up to 1230mm. Maximum height can reach 4500mm tall its vertical seal.Its high performance per dollar value make it become the most economical suitable for restaurant schools, office, religion, hospitals, shopping arcades and many other indoor applications product.

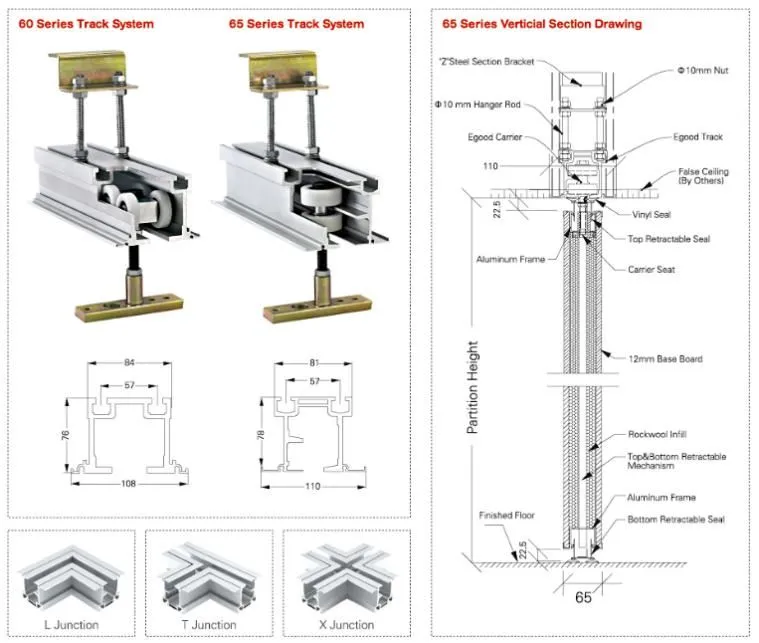

Egood-65 Track System:

For Omani-Directional panel up to 225kg. Two carriers are provided per panel, Each carrier has two horizontal counter-rotating wheels that roll not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200mm.

 123
