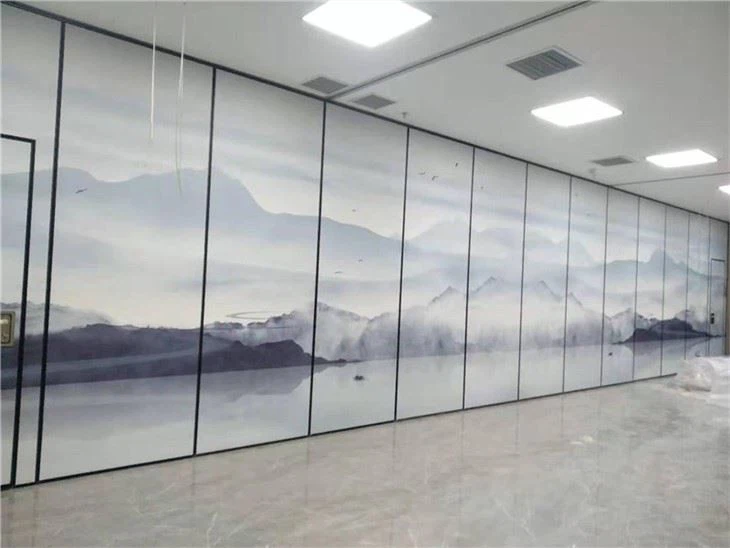

Hotel Wall Paper Movable Partition

Hotel Wall Paper Movable Partition

Product name:hotel wall paper movable partition
Model:Type80
General Use:Hotel
Place of Origin:China
Thickness:Type80=80mm
Finish:wall paper
Color:customized
Brand Name:Greatyear
Suspension :Twin Point
Package Type:Carton package

Send Inquiry

Guangdong Egood Partition Products Co.,Ltd established in 1998, is a professional manufacturer engaged in development, sales, production and after-sales service of movable partition wall.

8


Type80 movable partition is made of high quality anodized aluminum frame with composite materials. The panel has a standard thickness of 80mm and a width up to 1230mm Maximum height can reach 5500mm tall.

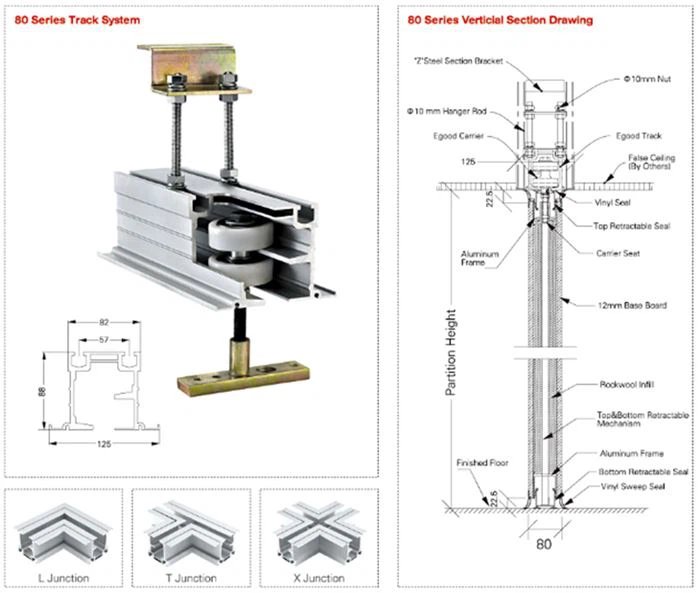

80 Series Track System For Omani-directional panels up to 380kg. Two carriers are provided per panel. Each carrier has two horizontal counter rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200mm.

 9

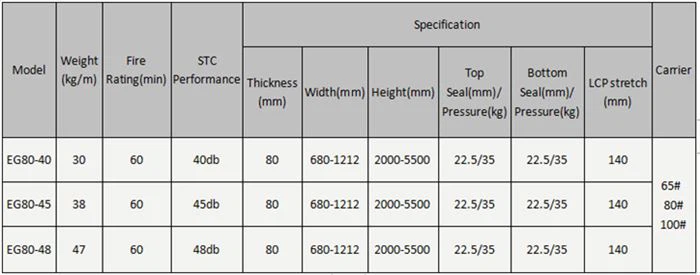

Technical data of Type 80 movable partition :

10
