● Surface finish color: optional
● Surface finish option: melamine, wood veneer, fabric, wall paper, HPL
● STC: 32-53db
● Panel thickness: 65,80,100mm
● Panel height: 2-17 meters
● Materials: aluminium frame+base board+glass wool
● Size: customized according to site condition
● Frame color: customized
● Locking way: top and bottom
● Pass door: available
...
Type | foldable wall partition | Sound insulation | 32-53db |
Brand Name | Egood Partition | Place of Origin | Guangdong China |
Model Number | TYPE65,80,100 | Glass wool infill | 60kg/m³ |
Finishing option | melamine, fabric, PU, HPL, wood veneer ect. | Panel thickness | 65,80,100mm |
Track | Anodized aluminum 6063-T6 | Height | Max 17meter |
Main frame | Anodized aluminum 6063-T6 | Carrier materials | Imported POM |
Base board | 12mm thickness Plywood and MDF board | Carrier over load | 225-1300Kg |

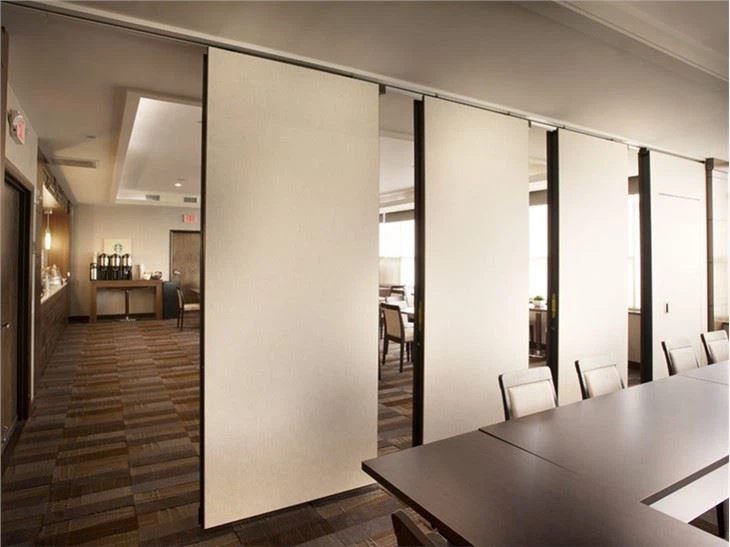

Foldable wall partition are specified where functional space delineation is an integral element within the partition project.
Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization.Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.
Technical Description Feature:
1.Change the room space flexibly.
2.Heavy Track loading capacity make sure the safety of Partition.
3.Precise welding between separate rail can avoid repairing and maintainance in high probability.
4.Partition retract and push easily, only one person can handle the moving job.
5.Wide application: can be used in Office place, commercial place, exhibition place, Hospital place, etc.
Flexible stacking options:
Egood provides many stacking options for client's choice. Stacking and storing the partiiton, versatilely and skillfully designed storage system is essential in space management. It ensures each panel is placed and spaced for easy retrieval and storage, and minimize the storage space. The illustration below give examples of standard stacking configurations, many more can be offered depending upon the building. Fabrication of track junctions are assemble in our factory, ensuring accurate alignment and fast installation on site.
FAQ:
Q: What is the partition completion option?
A: We have many choices. We can provide you with exposed MDF, exposed plywood or plasterboard for your own decoration. We can also supply Melamine Laminates, high pressure laminates, plywood, cloth, polyurethane, etc. , depending on your requirements. WE'VE WORKED FOR THIS COMPANY FOR OVER 20 years. Our factory is located in the South China Sea area of Foshan, warmly welcome your visit!
Q: How do I install partitions? Do you have to do this?
A: It is not difficult to install our partition. Our sector is a top-of-the-line support system that will be very important and will not require any ground orbit structure. We have very detailed drawings and videos showing how to install it, so your people just need to take it one step at a time.
Q: Can you send an engineer to install it? How much does it cost?
A: Of course. We have two installation options. The first option is that we send in an assistant engineer. He'll order your men to do it, but he won't install it himself. The second option is to have two installers install at least two movable walls. They'll install the system themselves. At the same time, they need the support of local workers.
Q: Where is your office? Do you have an overseas office?
A:So far, we have no overseas offices. Our office is located in the South China Sea area of Foshan, but we have local distributors in some countries. You can ask our people about overseas distributors.
Q: Do you have a warranty on your products?
A: Yes, all our products have a one-year warranty, including all parts and defects. If necessary, we can also provide extended warranty period, product life.
