What is an Operable Wall?
An operable wall is a movable partition system that allows clients like architects, designers, and venue managers to transform a large room into smaller, distinct areas on demand. Its core value lies in delivering exceptional space flexibility, combined with effective acoustic performance, which empowers a single venue to host multiple functions simultaneously without sacrificing privacy.
Benefits of Using Operable Walls
- Space Flexibility
- Acoustic Performance (Soundproofing)
- Cost-Effective
- Ease of Operation
- Aesthetic Appeal
Types of Operable Walls We Offer
 |
|
| Type | EG65/ EG85/ EG100 |
| Maximum sound insulation effect | 45dB/ 52dB/ 56dB(The highest sound insulation effect in the market) |
| Thickness | 68mm/ 89mm/ 105mm |
| Fire resistance rating | Passing the 180-minute fire resistance test |
Key Features & Technical Specifications
Here we will introduce the EG85 model.
| Movable partition thickness | 89mm |
| Frame material | 2.5mm thick 6061-T6-13µm-14hw aluminum alloy |
| Product type | Practical partition screen |
| Sound insulation coefficient range | STC 38db-52db (We have Certificates) |
| Partition height | Up to 5 meters |
| Screen retractable panel expansion range | ≤140mm |
| Suitable for | High-end restaurant private rooms, dining rooms, and hotel hall. |
| Inner frame | National standard welded steel keel |
| Sealing mechanism | Jack-driven transmission device controls the top and bottom support mechanism for telescopic sealing and fixing. |
| Screw rod | Hardness grade 8.8, diameter M12 fine-thread carbon steel |
| Insulation and sealing | 100kg/m3 fireproof and soundproof rock wool, silicone sealing strips |
| Retractable panel | Three-linkage retractable panel (with top and bottom seals) |
| Magnetic seal | The butt joint seal between each partition must have a magnetic sealing strip with a suction force of no less than 40N/m |
| Optional | Door frames can be installed on the wall |
These Two Track Can Match The Panel
|
L450 Track |
L-450 type guide rail (with a load-bearing capacity of 450kg): lt is made of a single-piece formed aluminumalloy track, with the material being 6061-T6-14hv(hardness) -13μm (oxide film thickness). Each meterof the track can bear a load of 450KG, meetingtheactual load requirements and ensuring smooth andeffortless pushing and pulling. |
|

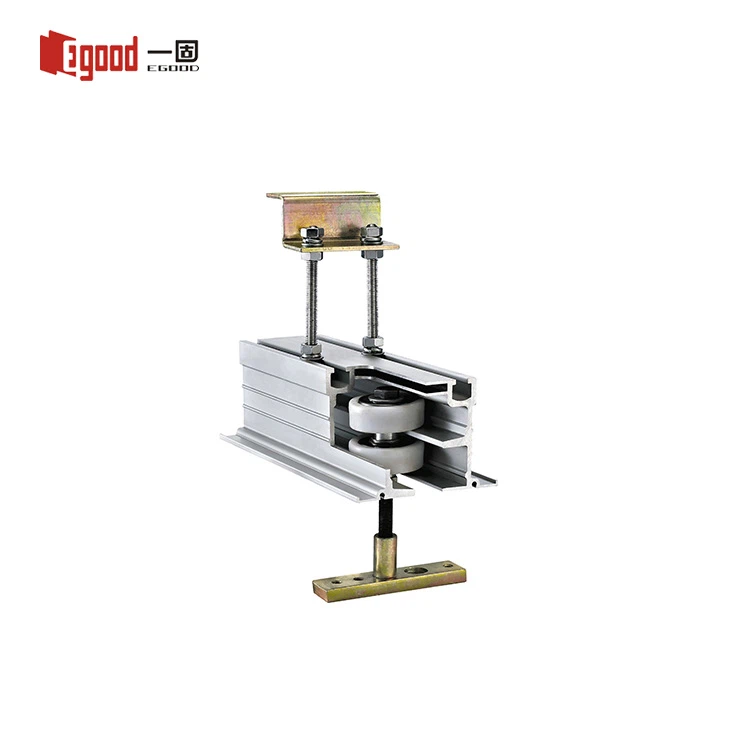

L500 Track |
L-500 type guide rail (with a load capacity of 500kg): lt is made of a single-piece formedaluminum alloy track. The material is6061-T6-14hv (hardness)-13μm (oxidation filmthickness).The design features two halfwalkingrails on both the top and bottom,minimizing thecontact area between the pulley and the guiderail,ensuring smooth and effortless pushing andpulling. Each meter ofthe track can bear a load of 500KG, meetingthe actual load requirements. |
Applications & Industries
Let's see if it fits the scenario you have in mind for application.
Effortlessly define your space. Our operable partition walls can instantly transform any large venue-whether a convention center, exhibition hall, or multi-function room-into multiple separate, efficient areas. From open to private, from grand to intimate, a simple operation is all it takes to multiply your space's functionality and create endless possibilities.
Our Process
Online or in-person communication
Place an order and submit the proposal
Install the guide rails
Product production
Hanging door panel
Service tracking
Project Gallery
The following are all the cases we have handled before.
 |
Ritz Hotel Philippines Garden Oasis Height: 2500mm STC: 49db Completion date:Sep. 2019 |
 |
Saudi Border Guards- PrinceMohammed bin Nayed Academy Height: 4800mm STC: 50db |
 |
Raipur International Hotel Panel Height:20000mm STC: 53dbCompletion date:Aug 2023 |
Frequently Asked Questions
Q:What are the advantages of buying directly from your factory versus a local distributor?
A: Our primary advantage is that we are a factory-direct source. This means you are partnering directly with the manufacturer, cutting out all middlemen. This not only provides you with more competitive pricing but also ensures the strictest quality control right from the source. Furthermore, any requests for customization are communicated directly to our technical team, resulting in faster response times and more accurate solutions.
Q: We don't have a professional installation team. How do you handle the installation process?
A: You don't need to worry about installation at all. We offer an on-site installation guidance service with our professional engineers. After you place an order, we will schedule and dispatch an experienced engineer to your project site. They will guide your local team through the entire process, ensuring every detail meets our high standards for a flawless fit and optimal performance, giving you complete peace of mind.
Q: What about the acoustic and fire-retardant performance? Do you have certifications?
A: Absolutely. Our operable partitions are designed with superior acoustic performance and safety standards as a top priority. Our products have been rigorously tested by certified authorities and we hold official certificates for acoustic performance (soundproofing) and fire safety ratings. Whether you need a quiet meeting room or a public space with strict fire codes, our products will meet your requirements. These certificates are available upon request.
Q: We are located in another country. How do you handle international shipping, customs, and duties?
A: We offer a seamless, door-to-door logistics solution for our global clients by supporting DDP (Delivered Duty Paid) shipping terms. This means you simply wait for the delivery at your specified address. We handle everything else-all transportation, insurance, customs clearance, and import duties are managed and paid by us, eliminating complex logistics and unexpected costs for you.
Q: What is the overall process from purchase to final installation?
A:
1. Initial Consultation: You provide us with your site dimensions, functional requirements, and budget.
2. Design & Quotation: Our technical team creates a free, customized design proposal and a competitive factory-direct quote.
3. Contract & Production: Once the proposal is approved, we sign a contract and begin manufacturing.
4. Shipping & Delivery: We deliver the product safely to your site via DDP or your preferred shipping method on the agreed-upon date.
5. On-site Guidance: Our engineers arrived at the site on schedule as planned and were responsible for supervising the installation process until the project was successfully completed. Or you can follow the installation video in the installation file for the installation process.
