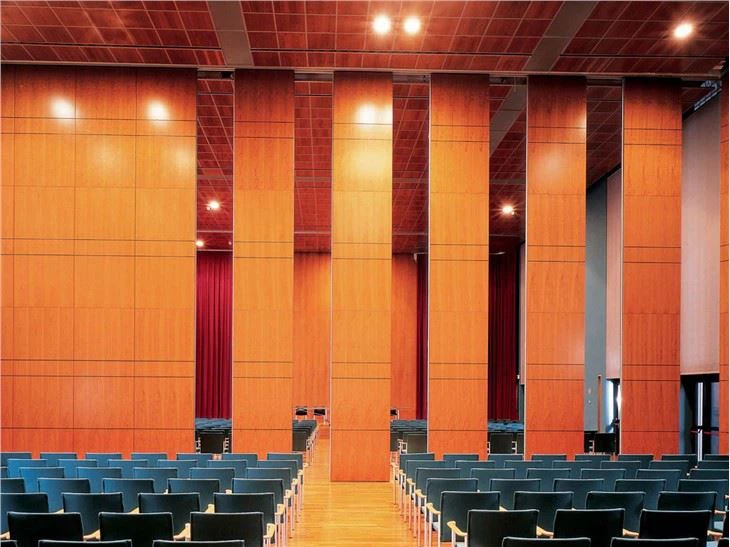

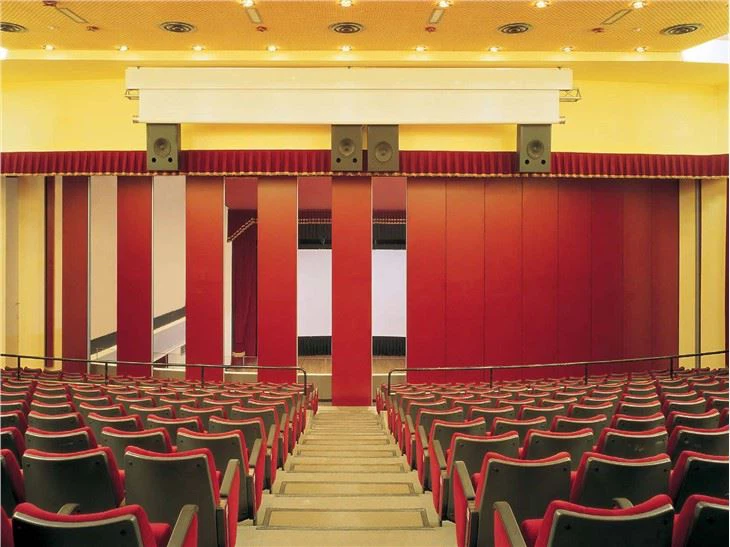

Soundproof Type 100 Movable Partition Wall

Soundproof Type 100 Movable Partition Wall

● Panel thickness: 100mm
● Maximun height: 15000mm
● Applicataion: hotel, convention hall, banquet hall ● Surface finish: Melamine laminate, wood veneer, fabric
● Soundproof rate: 32-53db ● Track: Heavy duty track ● Operation:sliding and folding ● Suspension: Top suspension ● Width: 1000-1200mm...

Send Inquiry

 The type 100 movable partition panel thickless is 100mm,maximum height can reach 20000mm,can   use different finish ,like melamine laminate, wood veneer, fabric etc,also can use single or double roller sliding on the track ,it has high sound insulation rate ,max STC is 56db .





Description of the system


Item

Movable partition wall

Applicable height

20 meters

STC(dB)

43-56db

Description of the partition wall


Thickness

100mm

Width(min/max)

600-1230mm

Height(min/max)

1800-20000mm

Suface Material

MDF, Melamine board, Hard fabric, Soft fabric, etc.

Main Material

6063-T6

Net Wight

35-50(Kgs/m2)

technical drawing

Panel stacking options :

Soundproof Type 100 Movable Partition Wall

Movable partition wall with double rollers can be stacked in a variety of positions flexibly. Panels with single roller may be parked to one or both sides of the opening.


A material to subdivide space, but also increasingly as one of the key elements for introducing colour with the aim to create a stimulating ambiance in the workplace.Partitions are becoming increasingly allied with architecture, and through their design, along with the integration of new materials, visual appearance need not compromise flexibility, acoustic and fire protection.

type 100  ultrahigh movable partition

For more details please feel free to contact our project manager:

E-mail:sales1@chinajls.com

Mob/whatsapp:+86 18927795978
