Sound Insulation Foldable Room Divider Acoustic

Panel thickness: 100mm
Maximum height: 17000mm
load-bearing per panel: 900kgs
Track: Semi-Automatic ultrahigh steel track
Finish surface: Melamine laminate, wall paper, fabric and etc..
Mechanism: top and bottom retractable profile with locking
Joint: Magnetic male and female profile joint together
Materials: Aluminum anodized
Operation: sliding and folding
Sound Insulation: From STC 32-55 db
...

Send Inquiry

Panel thickness: 100mm

Maximum height: 17000mm

load-bearing per panel: 900kgs

Track: Semi-Automatic ultrahigh steel track

Finish surface: Melamine laminate, wall paper, fabric and etc..

Mechanism: top and bottom retractable profile with locking

Joint: Magnetic male and female profile joint together

Materials: Aluminum anodized

Operation: sliding and folding

Sound Insulation: From STC 32-55 db



Description of the whole system

 Item

Egood Ultrahigh heavy duty aluminum track system

 Max. partition height

12.5 meters

 Sound Transmission Class(STC)

43-53db

Description of partition accessories

 Roller

 Imported dupont POM material roller,bearing capacity 900kg

 Track System

 Clear anodized 6063-T6 aluminum double track

 Surface finish option

 MDF,melamine,HPL,fabric,PU,wood veer

 Junction

 "T"junction, "L" juntion,

Glass wool  density inside

66kg/m3

Interior profile

Full aluminum

Application

Hotel, banquet hall, ballroom , conference room, classroom, function hall, auditorium


The Egood operable partitions are designed for large glass openings. The elegant, precision, engineered NanaWall operable partitions meet the most challenging architectural specifications.


Maximum height can reach to 12.5meters with panel weight up to 900kg,each carrier has four steel wheels with precision ground radial bearings.



Carriers cam be programmed for self-directing and sorting.

All junction tracks are factory assembled and welded.

Minimum dimension from the ceiling to the structure is 300mm.



20210128144446163aa32f01a54e939d22dae788417c45

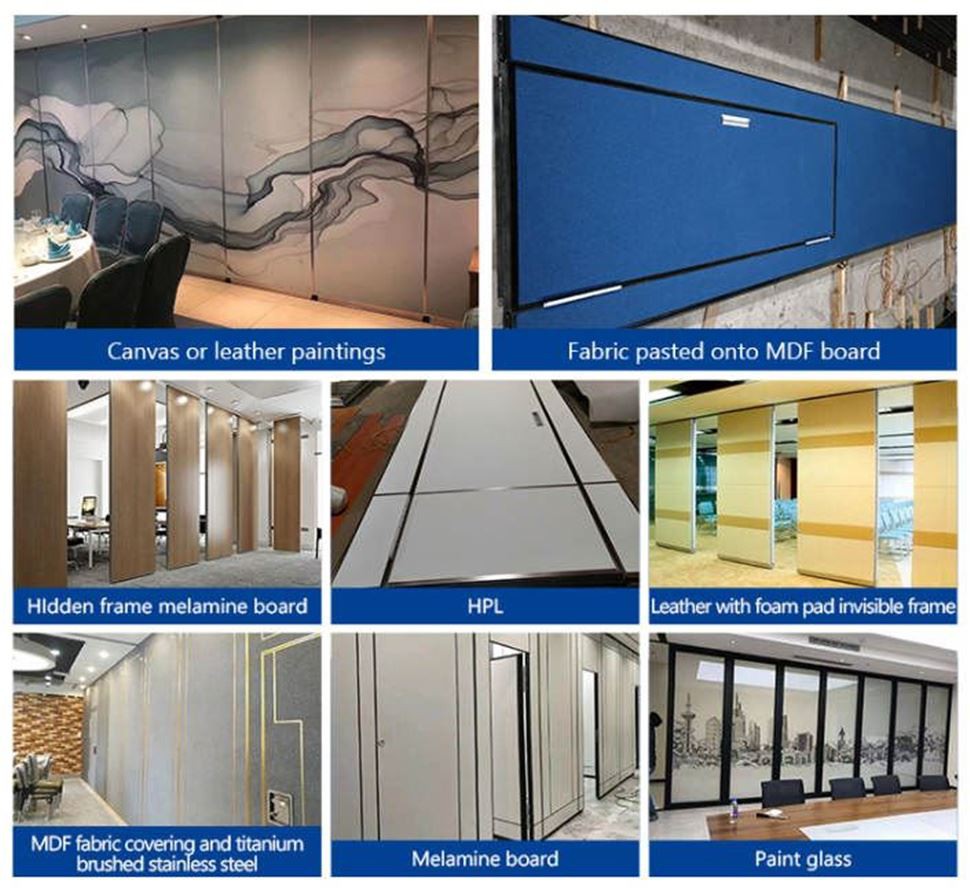

Optional Finish:

There are wide of range face finishes are available :melamine faced MDF or Plywood,,fabric,carpet,fabric,artificial,leather,wood veneer,high pressure laminate,Formica ,acoustic panel,white board etc., panels may also be supplied unfinished for field decoration,Standard frame color is clear anodized aluminum,custom powder coating colors are available.

36

Curved corner joint for smoother push and pull

The track is equipped with guiding devices for automatic steering turn

With aluminum alloy edge covered, better with ceiling suited

High-strength steel with high load-bearing capacity

Long service life and better safety performance

Load capacity 3500kg/m, suitable for partitions of 9 meters or more

The highest level is 17 meters domestically.

20210130170039e0d61ef340aa4ff8b0cd4305c1f238cc
