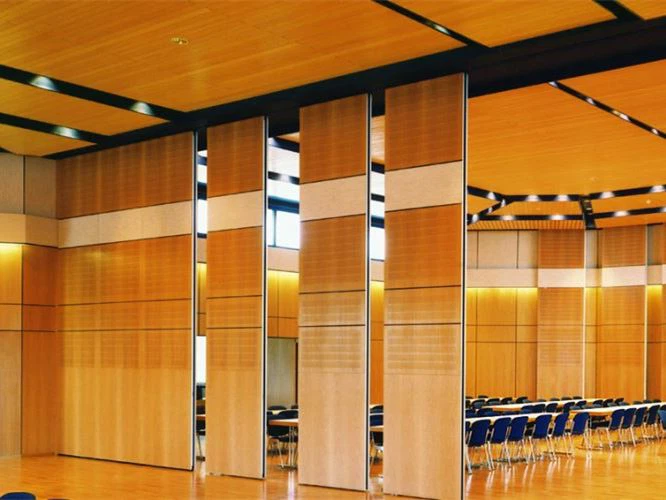

Movable Wall Partition Hotel Banquet Hall

● Model: Type100
● Soundproof rate: 43-53db
● Thickness panel:100mm
● Panel frame color: customized
● Parking way: customized according site condition.
● Moving way: Slding.
● Height: From 2meters to 7.5 meters;
● Junctions adopted : L, T, X junction
● Infill materials: Acoustic rockwool.
● Finish:Wood Veneer, Melamine. Leather, Fabric, Glass...

Send Inquiry

Egood 100 series operable partition is made of a high quality aluminium frame with composite materials. The panel has a standard thickness of 100mm and a width up to 1230mm. Maximum height can reach 7500mm tall. lts vertical seal, together with the horizontal top and bottom retractable seals provide excellent acoustic insulation property of maximum STC 53db in laboratory setting. lts excellent acoustic insulation property and maximum reach allow it to be used in ballroom, banquet hall, multi function halls, auditorium, exhibition centre and other facilities which get high sound insulation requirement.



Track system adopted:

100 Series Track System For Omni-directional panels up to 650kg. Two carriers are provided per panel. Each carrier has two horizontal counter rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased wjth POM, steel banded and rejnforced. Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 250mm.



Construction of movable partition:



Stacking Options:

Stacking and storing the partition, versatilely and skillfully designed storage system is essential in space management. lt ensures each panel is placed and spaced for easy retrieval and storage, and minimises the storage space. The illustration below gives examples of standard stacking configurations, many more can be offered depending upon the building. Fabrication of track junctions are assembled in our factory,ensuring accurate alignment and quick installation on site.
