Egood Ultrahigh Heavy Duty Aluminum Track System

Egood Ultrahigh Heavy Duty Aluminum Track System

● Long service life and better safety performance
● The highest level is 12.5 meters domestically.
● High-strength steel with high load-bearing capacity...

Send Inquiry

100 series Ultrahigh heavy duty aluminum track system

Description of the whole system

Item

100 series Ultrahigh heavy duty aluminum track system

Max. partition height

12.5 meters

Sound Transmission Class(STC)

43-53db

Description of partition accessories

Roller

Imported dupont POM material roller,bearing capacity 900kg

Track System

Clear anodized 6063-T6 aluminum double track

Surface finish option

MDF,melamine,HPL,fabric,PU,wood veer

Junction

"T"junction, "L" juntion,

Glass wool density inside

66kg/m3

Interior profile

Full aluminum

Application

Hotel, banquet hall, ballroom , conference room, classroom, function hall, auditorium


Egood Ultrahigh heavy duty aluminum track system are used when the partition height or weights limit exceed that recommended for the normal aluminum system.

Maximum height can reach to 12.5meters with panel weight up to 900kg,each carrier has four steel wheels with precision ground radial bearings.

Carriers cam be programmed for self-directing and sorting.

All junction tracks are factory assembled and welded.

Minimum dimension from the ceiling to the structure is 300mm.


Features:

1. The total thickness of each panel is 100mm with double 12mm board inserting on both sides.

2. Germany heavy duty aluminum track with safety cable is used to support the partition.


Advantage:

1. 55kg/cubic meter high density glass wool are infilled into the panel which strengthen the soundproof performance greatly.

2. Maximum sound insulation can reach STC 55db.


Egood Ultrahigh Heavy Duty Aluminum Track System

Movable partition wall internal structure:

Egood Ultrahigh Heavy Duty Aluminum Track System

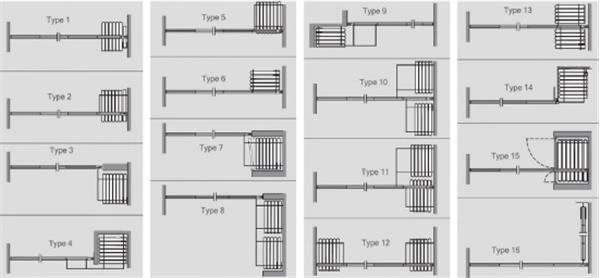

Stacking options:

Egood Ultrahigh Heavy Duty Aluminum Track System

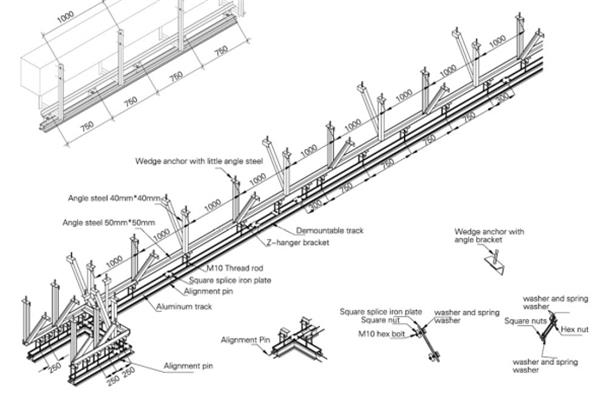

Track hanging way:

Egood Ultrahigh Heavy Duty Aluminum Track System


FAQ:

Q: What are the completion options for the partition?

A: We have many choices. We can provide you with bare MDF, bare plywood or gypsum board for your own decoration. We can also provide melamine laminates, high pressure laminates, veneers, fabrics, polyurethane, etc. depending on your requirements.



Q: Are you a manufacturer or a trading company?

A: We are the largest manufacturer of movable partition wall in Foshan. We have worked for this company for more than 20 years. The factory is located in Nanhai District, Foshan City, warmly welcome your presence!



Q: How do I install partitions? Do you have to do this?

A: It's not difficult to install our partition. Our zoning is a top-level support system and it will be very important not to need any ground track structure. We have very detailed drawings and videos showing how to install, so your people just need to step by step.



Q: Can you send an engineer to install it? How much is the charge?

A: Of course. We have two installation options. The first option is for us to send an assistant engineer. He will command your workers to do the work, but he will not install it himself. The second option is to have two installers (at least two) install the movable wall. They will install the system themselves. At the same time, they need the support of local workers.



Q: Where is your office? Do you have an office overseas?

A: So far, we have no offices overseas. Our office is located in Nanhai District, Foshan City, but we have local distributors in some countries. You can ask our people about overseas distributors.



Q: Is your product guaranteed?

A: Yes, all our products have a full one-year warranty, including all parts and defects. If necessary, we can also provide extended warranty period, product life expectancy.
