Egood's double, corrosion-resistant aluminum track systems are designed for easy installation and low maintenance. Precision extruding ensures each section has a uniform shape for superior end-to-end alignment. Every capacity-certified track is manufactured from extruded architectural-grade clear anodized 6063-T6 aluminum, guaranteeing durability and smooth operation for years.
Type 60 Series Partition Track System
Load Capacity: Maximum weight for a single wall panel roller is 250kg.
Roller Design: One 4-wheeled carrier per panel. Wheels feature molded polymer tires on hardened steel ball bearings.
Feature: Resilient mounted body for quiet operation and load distribution. Ideal for center stacking options.
Installation: Usual dimension from ceiling to structure is 200mm.
Type 65 Series Partition Track System
Load Capacity: Maximum weight for omni-directional panel is 225kg.
Roller Design: Two wall panel rollers are provided per panel. Each carrier has two horizontal counter-rotating wheels that roll (not slide) in the partition track.
Feature: Precision ground bearings encased with POM for quiet operation. Easily negotiates square or angled corners without switches.
Installation: Usual dimension from ceiling to structure is 200mm.

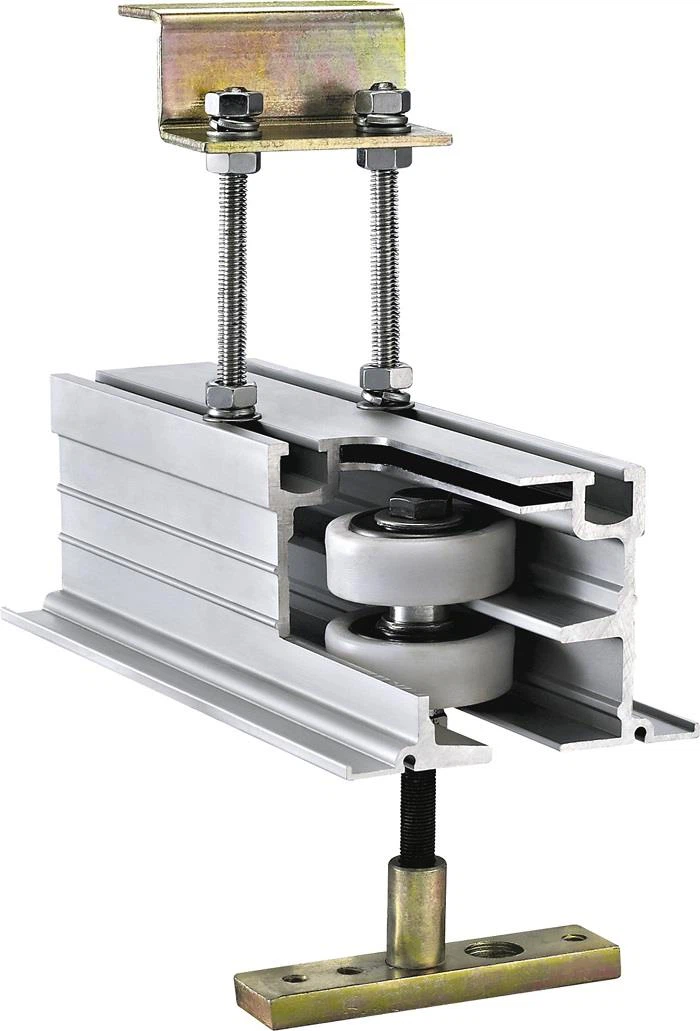

Type 80 Series Partition Track System
Load Capacity: Maximum weight for omni-directional panel is 380kg.
Roller Design: Two wall panel rollers are provided per panel. Each carrier has two horizontal counter-rotating wheels.
Feature: Precision ground bearings encased with POM. Smooth negotiation of corners without switches.
Installation: Usual dimension from ceiling to structure is 200mm.
Type 100 Series Partition Track System (Heavy Duty)
Load Capacity: Maximum weight for omni-directional panel is 650kg.
Roller Design: Two heavy-duty wall panel rollers per panel. Horizontal counter-rotating wheels designed for high and heavy panels.
Feature: Precision ground bearings encased with POM. Designed for heavy-duty track partition wall applications.
Installation: Usual dimension from ceiling to structure is 250mm.

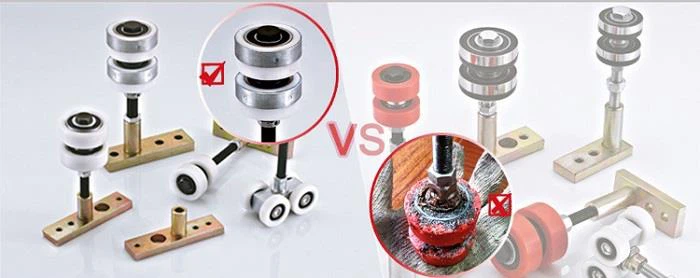

Product advantages:
Superior Materials: Egood's latest wall panel roller is made from Dupont POM material (polyformaldehyde) for best wear resistance. The high-
carbon chromium bearing steel reaches an 8.8 grade strength standard, greatly improving the durability and lifetime of the operable partition system.
Precision Engineering: Our double, corrosion-resistant aluminum partition wall track system (6063-T6) ensures uniform shape and perfect alignment, making installation easier and maintenance minimal.
Egood' s double, corrosion-resistant aluminum track systems are easy to install and easier to maintain. Extruding enables each section to have a uniform shape for superiorend-to-end alignment.Each capacity-certified track is of extruded architectural gradeclear anodized 6063-T6 aluminum.

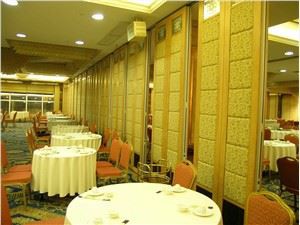

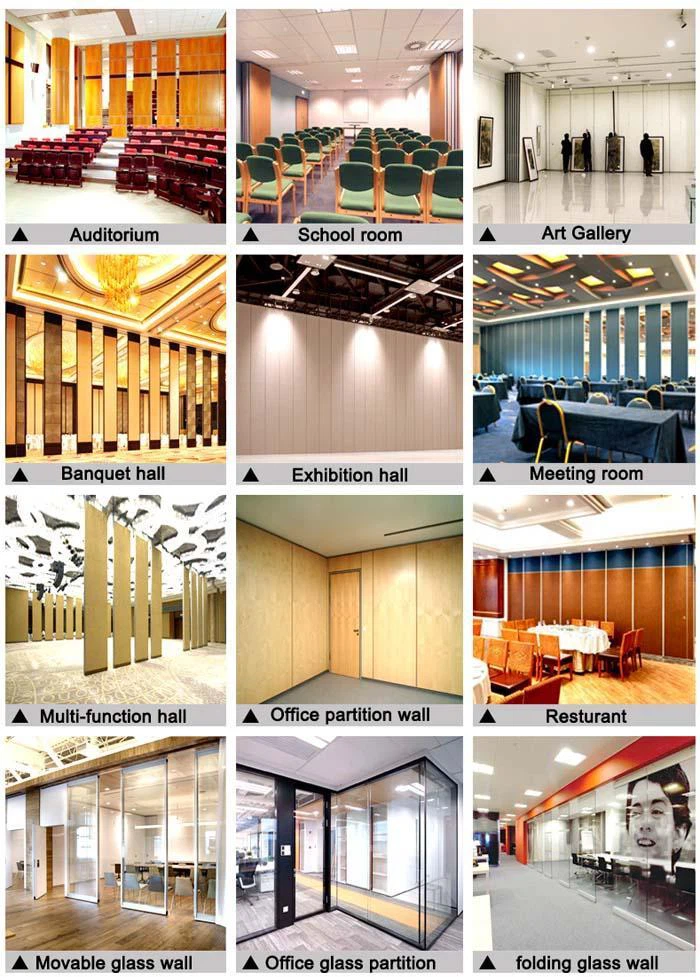

Application scenario:
The track partition wall system consists of interlocking flat panels and retractable top/bottom seals. It provides excellent acoustic insulation (maximum STC 48dB in laboratory settings). Its high performance-to-price ratio and easy field operation make it suitable for:
Restaurants & Banquet Halls
Schools & Universities
Offices & Conference Rooms
Hotels & Convention Centers
Hospitals & Religious Buildings
Production equipment：
Production Process:
The quality of all our products is strictly controlled. We only use superior raw materials. From aluminum extrusion to wall panel roller assembly, every step is monitored to ensure excellence.
Packing and shipping:
Packaging: Paper board or plywood case, customized to your requirements.
Shipping: Worldwide shipping available via sea or air freight.
FAQ
Q: What finish options do you have for the partition panels?
A: We offer a wide range of options. We can supply bare MDF, bare plywood, or gypsum board for your own on-site decoration. We also provide factory-finished options like melamine laminate, high-pressure laminate (HPL), wood veneer, fabric, and PU leather.
Q: Are you a manufacturer or a trading company?
A: We are a leading movable wall partition manufacturer in Foshan City, China, with over 20 years of experience. Our factory is located in the Nanhai District of Foshan. You are warmly welcome to visit us!
Q: Is the installation difficult?
A: No, it is designed for professional installation. Our partition wall track system is top-supported without floor tracks. The ceiling structure is critical. We provide detailed drawings and installation videos, so your local team can follow them step-by-step.
Q: Can you send an engineer to install?
A: Yes, we offer two options:
Supervisor: We send one engineer to instruct your local workers (he does not install personally).
Installation Team: We send at least two installers to install the system themselves, with assistance from local labor.
Q: Do you have offices overseas?
A: Our headquarters is in Foshan, China. However, we have distributors in some countries. Please contact us to check if there is a distributor in your region.
Q: Is there a warranty?
A: Yes, all our products carry a full 1-Year Warranty, covering all parts and defects. Extended warranties are available upon request.
