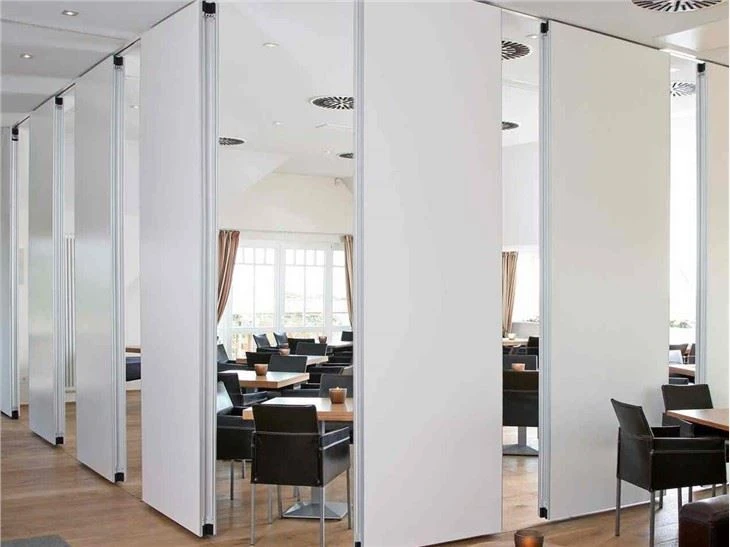

Accordion Lobby Acoustic Partition Wall

Accordion Lobby Acoustic Partition Wall

■Self-innovation corner seal to get better superiority in both dealing and noise insulation performance
■Top ande bottom sweep seals that assist to sealing the gap between floor and the ceiling.
■Egood used NBR sealing strip instead of PVC materials so it is more wear -resistant, anti-aging, unbreakable.
■ 55kg/m³ high density glass wool to get higher soundproof performance.
■ Basic MDF face - Standard 9mm -12mm thickness for superior acoustic performance
■ Aluminium frames - Available in colour anodizing, and powder coating
■ Top supported without floor track or guide.
■They allow for many different combinations, from glazed concrete sections to doors.
■ Customized powder coated color are available.
■ Finishes: Customized painting.
■ Fast delivery and Rich experiences in oversea project installation guide & supervision.
...

Send Inquiry

Guangdong Egood Partition Products Co.,LTD

 Founded in 1998, Guangdong Egood Partition Products Co., Ltd. is one of the largest manufacturers of hotel partition products in Guangdong Province. The company introduced advanced German production technology. With more than 20 years of production experience, we have maintained the international standard of manufacturing partition and its hardware products. Each product has been designed and produced through strict procedures to provide customers with high security and high quality and high sound insulation.

3

 Description of the system

 Item

 Movable partition wall

 Applicable height

 4.5 meters

 STC(dB)

 32-45db

 Description of the partition wall

 Thickness

65mm

 Width(min/max)

 680-1230mm

 Height(min/max)

 2000-6000mm

 Suface Material

 MDF, Melamine board, Hard fabric, Soft fabric, etc.

 Main Material

 6063-T6

 Net Wight

 23-38(Kgs/m2)

The Operation of Acoustic Partition Walls

When the operable seal is retracted, the panel slide easily along a unique aluminum overhead rail system (no floor rails are required). The telescopic end panel allows the walls to be locked off to complete the acoustic seal. The rail and carrier systems make sure acoustical partition wall is easy to operate and change direction, allowing panel stacking in countless configurations.



For aesthetic appeal, it is possible to provide almost any decorative finish, including veneer, laminates, walls, carpets, whiteboards and decorative lacquers.
