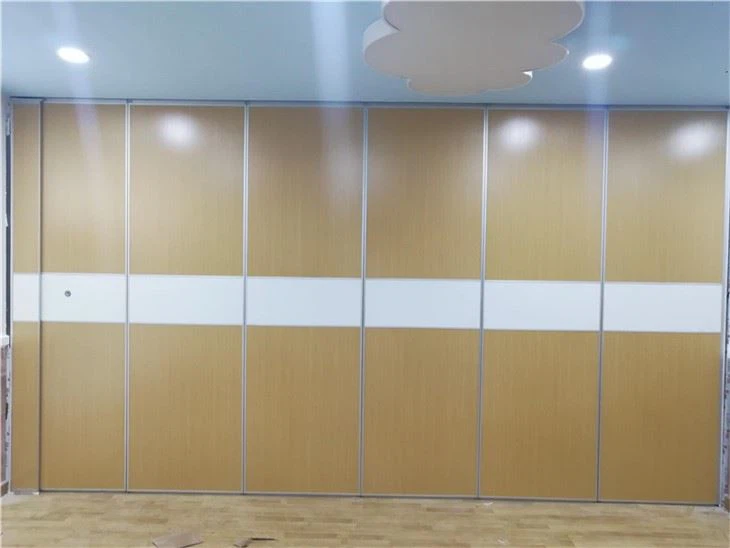

Product name:India Separator School Folding Partition Wall with Top Hang Track
Framework Color: Aluminum sliver
Framework Materials:6063-T6
Panel suspension:Top hung only
Track system:Single or twin point
Vertical profiles:Aluminum anodized with sealing profiles
Retractable seals:Aluminum black with double rubber seals
Operation of seals:Manual, with supplied operating handle
Locking:Optional lock to pass doors
Pass doors:Single open in panel or double open in two panel ...
Product name:India Separator School Folding Partition Wall with Top Hang Track
Framework Color: Aluminum sliver
Framework Materials:6063-T6
Panel suspension:Top hung only
Track system:Single or twin point
Vertical profiles:Aluminum anodized with sealing profiles
Retractable seals:Aluminum black with double rubber seals
Operation of seals:Manual, with supplied operating handle
Locking:Optional lock to pass doors
Pass doors:Single open in panel or double open in two panel

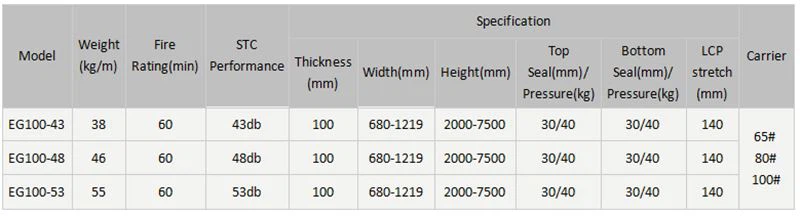

The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.

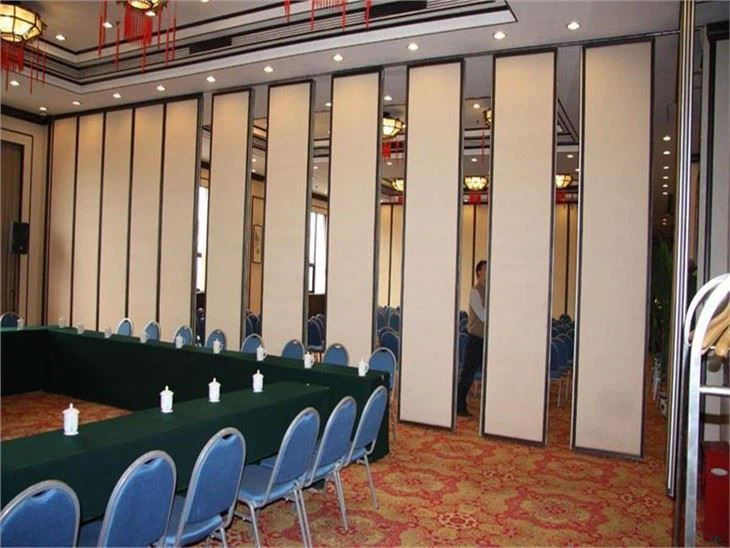

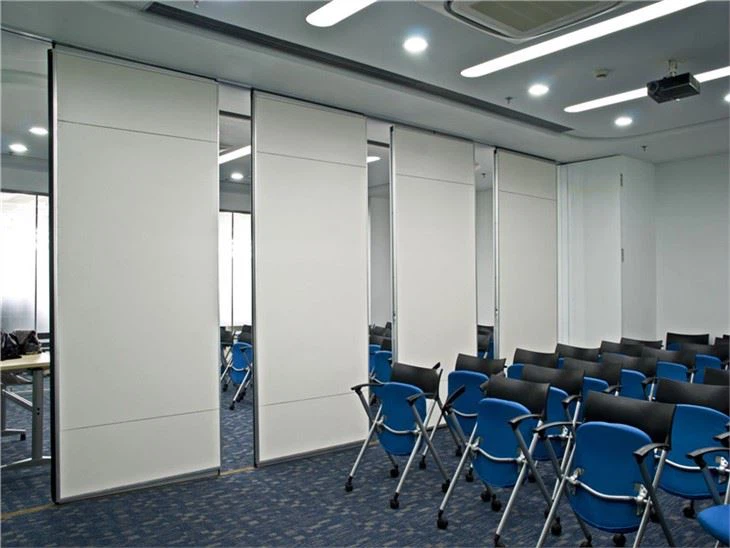

Its high performance per dollar value and the easiest in-field operation makes it very suitable for Hotel, banquet hall, conference room ,ballroom, muti-function hall, restaurant,classroom,office,religion,dance studio ,shopping arcades and many other place where seek for space divide with good soundproof performance

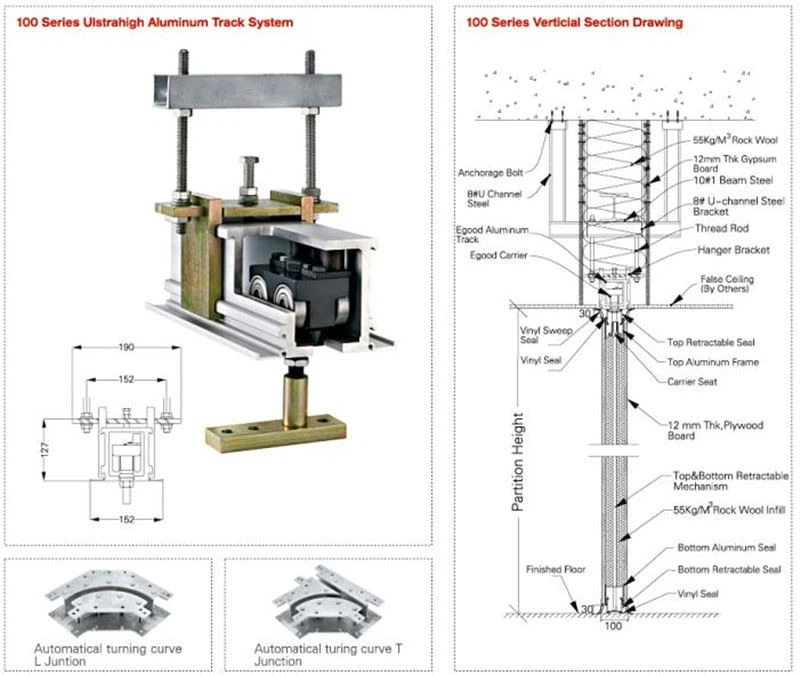

Ultrahigh aluminum track system are used when the partition height or weight limit exceed that recommended for the normal aluminum system Maximum height can reach to 12. 5Meter with panel weight up to 900kg. Each carrier has four steel wheels with precision ground radial bearings. Carriers cam be programmed for self-directing and sorting all junction tracks are factory assembled and welded. Minimum dimension from the ceiling to the structure is 300mm.
