Fabric Convention Centre Folding Partionning

Fabric Convention Centre Folding Partionning

■Egood used NBR sealing strip instead of PVC materials so it is more wear -resistant, anti-aging, unbreakable.
■ 55kg/m³ high density glass wool to get higher soundproof performance.
■ Basic MDF face - Standard 9mm -12mm thickness for superior acoustic performance
■ Aluminium frames - Available in colour anodizing, and powder coating
■ Top supported without floor track or guide.
■They allow for many different combinations, from glazed concrete sections to doors.
■ Customized powder coated color are available.
■ Finishes: Customized painting.
■ Fast delivery and Rich experiences in oversea project installation guide & supervision.
■Carrier over load: 225-1300Kg.

Send Inquiry

■Model Number :Type65/80/100 operable wall

■Matching Track: Type65/80/100 anodized aluminum track system

■Carrier bearing capacity: 225-1300kg

■Panel thickness:65/80/100mm

■Main structure:Anodized aluminum+aluminum Keel

■Sound insulation :STC32-53db

■Max height: 17000mm

■Sound insulation treatment: steel sheet, sound damping felt

■Base board:MDF,plywood;

■Rock wool: 60kg/m3

■ Pass door: single/double leaf pass door

■Finishes options:melamine, acoustic fabric and artificial leather, acoustic panel, HPL, wood veneer, mirror steel.

■ Application: convention centre

■Package: paper carton,plywood case,wooden pallet

■Price range:usd80-usd180/m2

■Delivery time :2-4 weeks

Fabric Convention Centre Operable Wall

Specification for Egood operable wall:

Egood operable wall partition is made of high quality anodized aluminum frame with environmental composite materials. The panels is hung by ceiling track and no floor track needed. The panel has a standard thickness of 65-100mm and a width up to 1230mm.Maximum height can reach 17000mm tall.

Specification for Egood operable wall

The operable wall consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals, which enable panels to be locked by 180 degree cranking in one time. The panels is infilled with 60kg/m³ rock wool, if higher sound proof is required, the panel can be added 0.8mm steel sheet and 3mm sound damping felt. The panel is finished with optional color fabric finish, panel profile concealed. Benefits to the foam inside of fabric panel, it helps to increase sound proof rate of the operable wall. The highest soundproof rate it can reach is STC:53db.

Egood partition works with Architects,designer, project manager,contractor and owners of project ect. We dedicate to supply first class quality movable partition products for all of our clients and offer them installation guidance like drawing, videos, we can also send experienced installation team if needed.

Convention Centre Operable Wall:



Fire Rating(min)

STC Performance






Top Seal(mm)/ Pressure(kg)

Bottom Seal(mm)/ Pressure(kg)

LCP stretch (mm)











80# 100#





















Track system& vertical section for type 100 partitions:

Track system vertical section for type 100 partitions

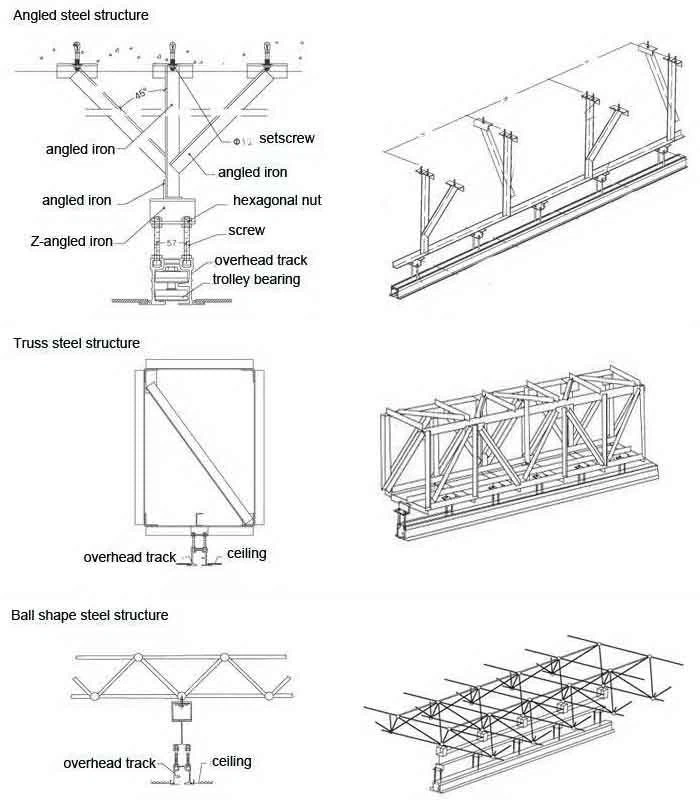

Steel structure upon the ceiling:

Steel structure upon the ceiling

Product Composition:

Product Composition

Technical data of type 80 movable partition:

Technical data of type 80 movable partition

Optional finish:

Optional finish

There are wide of range face finishes are available :melamine faced MDF or Plywood, fabric, carpet, fabric, artificial, leather, wood veneer, high pressure laminate, Formica, acoustic panel, white boad ect., panels may also be supplied unfinished for field decoration, Standard frame color is clear anodized aluminum, custom powder coating colors are available.

Steel structure upon the ceiling:

Steel structure upon the ceiling


Q: What finish options you have for partition?
A: We have several options.We can supply you bare MDF,bare plywood or gypsum board for your own decoration,We can also supply melamine laminate,high pressure laminate, wood veneer,fabric,PU and soon.It dependson your requirement.

Q: Are you a manufacturer or trading company?
A: We are the biggest movable wall partition manufacturer in Foshan city.We have worked for this business over 20 years. Our factory is located in Nanhai district,Foshan city.You are warm welcome to visit us!

Q: How to install the partition? Will it difiult to be done?

A: It is not difucult to installe our partitions.Our partitions are top supported system without any floor track inneed.So top structure will be very important.We have very detailed drawings and videos showing how toinstall,so your people just need to follow them step by step.

Q: Can you send engineer to install? What will the cost be?
A: Sure.We have two options regarding the intallation.The first option is that we will send one engineer assupervisor.He will instruct your workers to do the job but won't do the installation by himself.The second option is that there will be two installers (at least two) to install movable walls. They will install the system by themselves. At the same time, they also need the asstance from local labour.

Q: Where is your office? Do you have officec in overseas?
A: So far we don't have office in overseas,our office is located in Nanhai Foshan city.But we have local distributor for some countries,you can kindly consult our people about the overseas distributor information.

Q: Are your products guranteed?

A: Yes,all of our products carry a full 1 Year gurantee,coverig all parts and defects.We can also providean extended arrantee if require and the products are expected to last a lifetime.
