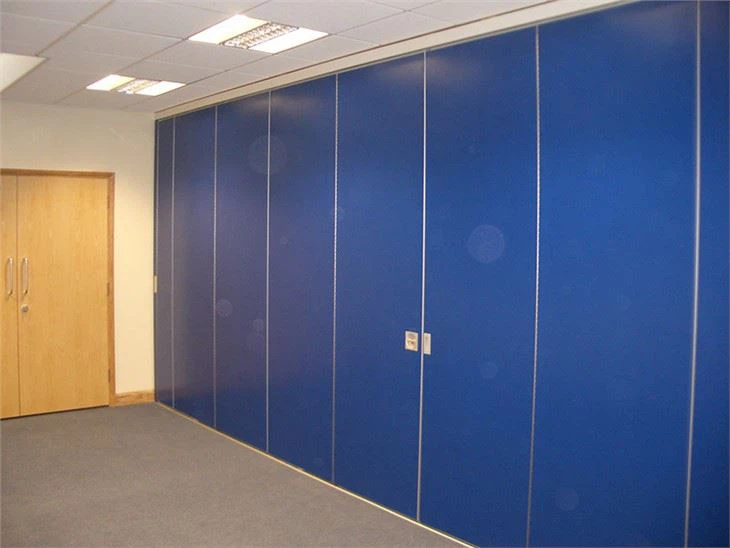

School Folding Door Partition With Track

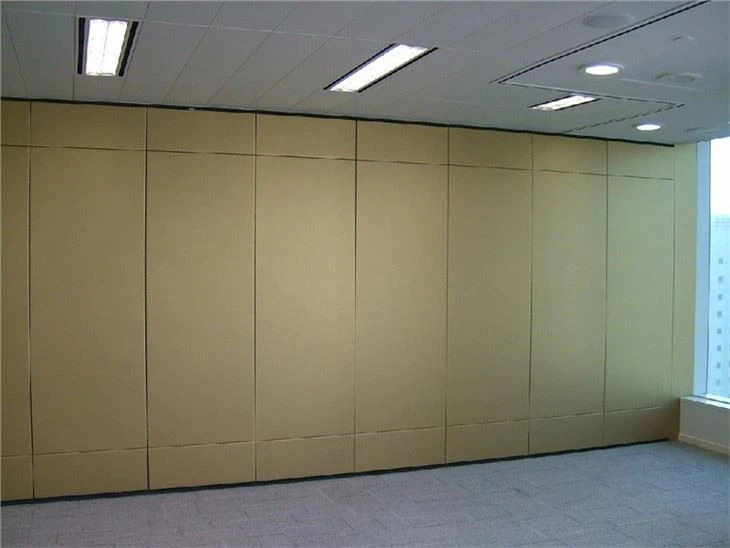

Product name:Macao Bifold School Folding Door Partition with Steel Track
Framework Color: Aluminum sliver
Framework Materials:6063-T6
Panel suspension:Top hung only
Track system:Single or twin point
Vertical profiles:Aluminum anodized with sealing profiles
Retractable seals:Aluminum black with double rubber seals
Operation of seals:Manual, with supplied operating handle
Locking:Optional lock to pass doors
Pass doors:Single open in panel or double open in two panel
...

Send Inquiry

 Basic MDF face - Standard 9mm -12mm thickness for superior acoustic performance

 Aluminium frames - Available in colour anodizing, and powder coating

 Top supported without floor track or guide.

 They allow for many different combinations, from glazed concrete sections to doors.

 customized powder coated color are available.
 Finishes: Customized painting.

 Fast delivery and Rich experiences in oversea project installation guide & supervision.

 Carrier over load: 225-1300Kg.

 Open Style: Sliding

 Fixed top sweeps - Retractable seals are required or optional.

 The tracks are fixed into the ceiling

 there is large selection of different finishes to choose from.

 DSC_0655

src=http___tu.ossfiles.cn_9186_group3_M00_13_FA_rBpVfl9bMyqAflwDAADLIyeLqU8047&refer=http___tu.ossfiles.jpg



Egood 80 series operable partition is made of high quality anodized aluminum frame with composite materials. The panel has a standard thickness of 80mm and a width up to 1230mm Maximum height can reach 5500mm tall. Its vertical seal, together with the horizontal top and bottom retractable seals provide excellent acoustic insulation property of maximum STC 48db in laboratory setting. Its excellent acoustic insulation property and maximum reach allow it to be used in demanding locations such as function rooms in starred hotels and convention centers



80 Series Track System For Omani-directional panels up to 380kg. Two carriers are provided per panel. Each carrier has two horizontal counter rotating wheels that roll (not slide) in the track. Each wheel has precision ground bearings, encased with POM for quiet operation Carriers easily negotiate square or angled corners without switches. Usual dimension from the ceiling to the structure is 200mm.

80#

80
