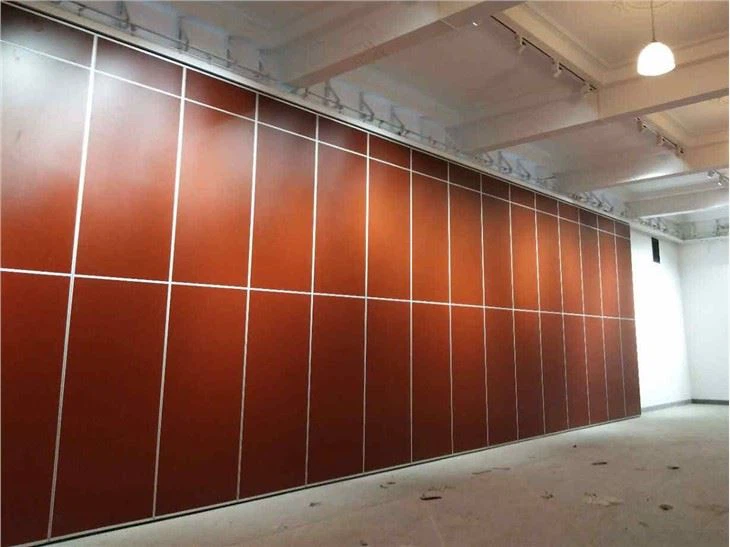

Acoustic Meeting Room Movable Partition

Egood acoustic operable partitions are used to divide meeting rooms, conference rooms. It provides convenient and effective space management solutions, the panels move on a ceiling track with no requirement of floor guides or rails.

Cause the sound waves to vibrate at different rates or frequencies as they move through the air and are measured in cycles per second or Hertz; the faster a sound wave passes a given point, the shorter the wavelength and in turn the higher the frequency. Vibrations in the air caused by the sound determine how loud it is; the stronger the vibrations the greater the ‘amplitude’. The length or duration of a sound i.e. it’s reverberation time or echo, is determined by the extent to which the energy is expended on contact with surfaces within a room.

And our acoustic meeting room movable partition can solve the problem for the sound wave.

Not only are the products the perfect solution for your noise pollution, but above all else, they need to be relied upon when you need them most.

The acoustic partitions can be made up to 1200mm wide and 4500mm in height with a 9-12mm thick acoustic panel. The primary function of the partition is to reduce and control the echo and reverberation within different spaces. All whilst being visually eye-grabbing and certainly a topic of discussion.

1.Technical data of Type 65 movable partition :

2.Technical data of Type 80 movable partition :

3.Technical data of Type 100 movable partition :

4.Product Description:

■ 65mm/80mm/100mm thickness panel ,Max height up to 7500mm.

■ Top supported without floor track or guide.

■ clear anodized extruded aluminum tracks and frames,customized powder coated color are available.

■ Sound insulation coefficient :STC 32db to 52db, ASTM standard of acoustic tested in Hong Kong.

■ available in wide range of finishes.

■ Fast delivery and Rich experiences in oversea project installation guide & supervision.

■Two layers of sound-absorbing fiberglass insulation

■ Carrier over load: 225-1300Kg.

5.Details of the aluminum profile:

Egood's double,corrosion-resistant aluminum track systems are easy to install and easier to maintain.

Extruding enables each section to have a uniform shape for superior end-to-end alignment.

Each capacity-certified track is of extruded architectural grade clear anodized 6063-T6 aluminum.

To seal the corner,Egood gets its own design about specially developed conically shaped corner pieces that fit closely together,with high density,strong collision,is not easily deformed even at temperature - 100℃. Compared with other same industry manufacturers,Egood has great superiority in both sealing and noise insulation factor for its products.

The quality of our all products is strictly controlled,only the superior raw material will be used.These are what we always concerned with,please rest assured for our constant strive for excellence.

Available in a wide range of colors of the finish.

6. Structure of the movable partition :

7.View of study:

8.Package:

9.Certificate:

10.Manufacturing process:

▲1/Raw Aluminum Material Cutting

▲2/Base Board Material Cutting

▲3/Drilling

▲4/Frame Assembly

▲5/Rockwool Filling

▲6/Base Board Assembly

▲7/Aluminum Joint Strip fixing

▲8/Screw Tightening

▲9/Wearing Vinyl Strip

▲10/Polishing

▲11/QC Dimension Inspection

▲12/QC Mechanism Inspection

▲13/Finished Production Inspection

▲14/Cleaning

▲15/Packaging

11.Company information:

Foshan is a prefecture-level city in central Guangdong province southern China and ranked as the largest manufacturing base in the pearl river delta.

The production facility of Egood is strategically located in there because of the availability of vast resources Egood has continued to thrive. Because of its excellent product quality and after-sales.To date, it's business coverage has reached not only every area in China but also extended to over 100 countries.

Egood acoustic operable partitions are used to divide meeting rooms, conference rooms, restaurants and banquet halls, etc.

It provides convenient and effective space management solutions, the panels move on a ceiling track with no requirement of floor guides or rails, it has been extensively applied to the hotel industry.
