Details:
● Model Number :Type65/80/100 operable partition
● Matching Track: Type65/80/100 anodized aluminum track system
● Carrier bearing capacity: 225kg-1300kg
● Panel thickness:65/80/100mm
● Main structure:Anodized aluminum+aluminum Keel
● Sound insulation :STC32-53db
● Max panel height: 17000mm
● Base board:MDF,plywood;
● Rock wool: 55kg/m3
● Surface finish:acoustic fabric.
● Panel profile concealed: optional
● Fabric panel thickness:12/15mm
● Package: paper carton,plywood case,wooden pallet
● Price range:usd80-usd180/m2
● Delivery time :2-4 weeks
Send Inquiry
Download
Description
Technical Parameters



Acoustic Movable Partition Sliding Divider Soundproof Folding Partition

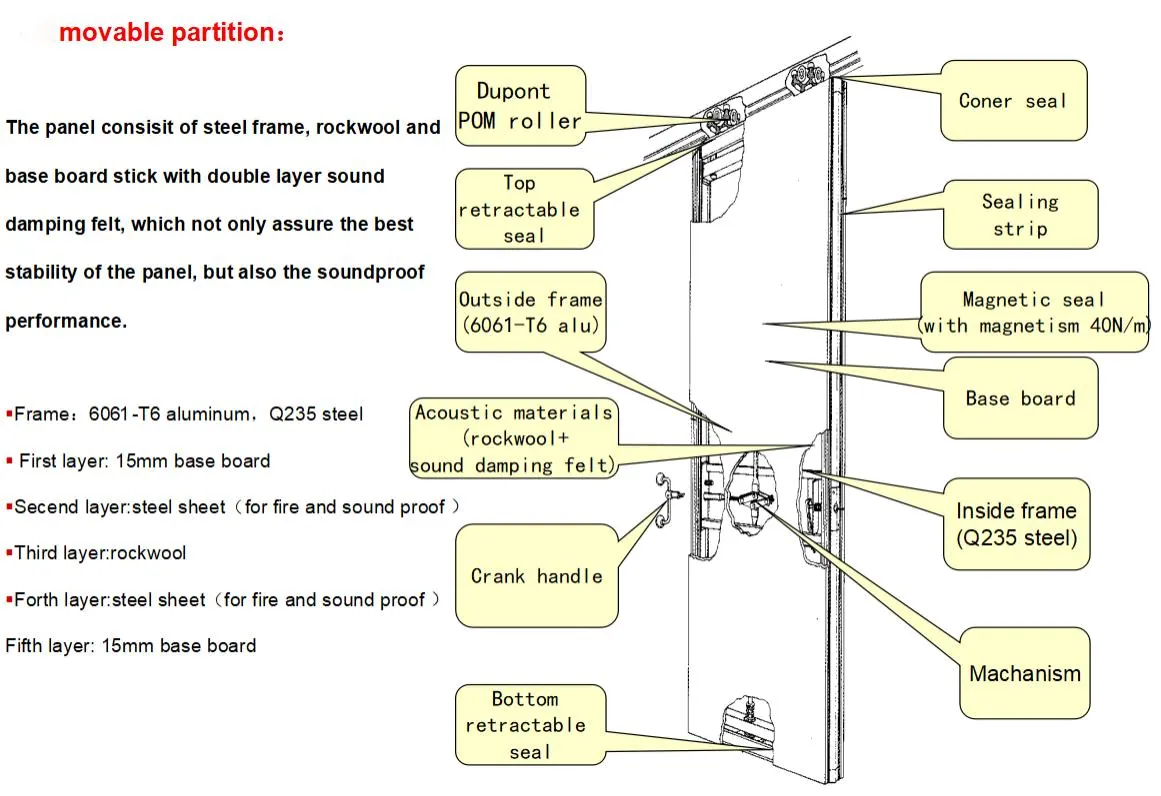

The partition panel is made of high density aluminum frame, special made rubber, excellent sound insulation cotton, finish board, etc. The finish panel is flat and hard; The finish panel is inserted in the aluminum track, assembled with multi-direction wheels. The panel can be stored in many different ways. Huiacoustics movable partition is flexible, artistical and can be moved freely. And it has sound insulation, heat insulation and fireproof function.



Egood's double,corrosion-resistant aluminum track systems are easy to install and easier to intain.

Extruding enables each section to have a uniform shape for superior end-to-end alignment.

Each capacity-certified track is of extruded architectural grade clear anodized 6061-T6 aluminum.

1



Type

Operable wall

Sound insulation

32-56db

Brand Name

Egood Partition

Place of Origin

Foshan city, China

Model Number

TYPE65,85,100

rock wool infill

100kg/m³

Finishing option

Melamine,fabric,leather,HPL,wall paper etc.

Panel thickness

69, 89,105mm

Track

Anodized aluminum 6061-T6

Height

Max 20 meters

Main frame

Anodized aluminum 6061-T6

Carrier materials

Imported POM

Base board

15mm thinckness Plywood and MDF board

Carrier over load

225-2000Kg

It doesn't need track on the floor, we hang the track on the ceilings and it can be at the same color with the ceiling decoration. It won't affect the whole decoration style. We can add single or double doors on the panel for convenience. Many different finishes are available to meet customer different requirements and get different decoration effects.







Temporary Operable Wall Partition

Convention Center Acoustic Movable Wall

Soundproof Hotel Folding Partition

Movable walls are specified where functional space delineation is an integral element within the partition project.

Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization.Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.



Egood partition has Type65, Type80, Type100 and Ultrahigh 125 series.

Fire Resistant Exhibition Hall Operable Wall

Fire Resistant Exhibition Hall Operable Wall

Fire Resistant Exhibition Hall Operable Wall

The height and weight of panel determines which kind of track to be adopted. Egood ultrahigh steel and aluminun track is applied for Type100 and Type125 operable wall which are with the height more than 12.5 meters high. The ultrahigh aluminum and steel track are with excellent bearing capacity.

Fire Resistant Exhibition Hall Operable Wall

Fire Resistant Exhibition Hall Operable Wall



Egood provides many stacking options for client's choice. Stacking and storing the partiiton, versatilely and skillfully designed storage system is essential in space management. It ensures each panel is placed and spaced for easy retrieval and storage, and minimieses the storage space. The illustration below give examples of standard stacking configurations, many more can be offered depending upon the building. Fabrication of track junctions are assemble in our factory, ensuring accurate alignment and fast installation on site.

Fire Resistant Exhibition Hall Operable Wall



100

High quality EGOOD operable partition walls are suitable for sights, where spaces are desired to be divided quickly into different parts. The spaces can be made multifunctional and they will transform according to the need, into closed or open entire-ties.

With sound insulating operable partition walls you can divide a bigger space quickly into individual - and team work, meeting and education suitable uninterrupted parts.

Rooms of different types and usage can be divided, reduced in size, enlarged, have their proportions modified and thus be adapted on demand to the different number of people using them. From the small conference room to the large exhibition hall. This flexibility generates a special atmosphere, characterized by creative aesthetics and enhanced by a wide range of surface materials and finishes.
