● Type: Type65,80,100
● Sound absortion: 32-53db
● Thickness:65mm, 80mm, 100mm
● Acoustic panel: Optional
● Stacking option: Customized
● Roller: Dupont POM roller
● Height: From 2meters to 7.5 meters;
● Locking way: Top and bottom
● Materials: Aluminium frame,glass wool,base board
● Finish:HPL, Melamine. Leather, Fabric, Glass...
New Design Folding Partition Wall is made of best quality materials from the market.
Sealing strip: material is PVC+polyvinyl chloride, tensile strength 8.15MPA, Shore hardness 65+MPA
The tear strength is 30KN/M, the surface color is off-white, it can seal the hand, seal the light, and play a buffering role with the collision wall
Anodized aluminum performance, no corrosion on the surface of aluminum profiles, electric burns, blackboards, oxide film peeling and other defects, the thickness of the oxide film is 14um
Tensile strength>157MPA, hardness>58HU, elongation 8%, other properties are in line with American ASTM related standards
Medium density MDF: benchmark panel, material is Paco (PACO), (density 760kg/m³)
The movable partition wall is just right in the current indoor commercial design, and it can not only be used in the environment of hotels, exhibition halls, etc.It can not only play the role of separating space, but also improve the overall design and grade.
| Product | New Design Folding Partition Wall |
| Finish | wall cloth full overlay without gaps |
| Frame Material | 6063-T6 aluminum |
| Frame Strengthen | Q235 steel keel inside |
| Accessories | galvanized iron |
| Track System | anodized extruded 6063-T6 aluminum |
| Hanging Wheel | steel &Dupont POM, steel roller with safety rope |
| Mechanism Sytem | jack lift of 800N power |
| Operation Mode | Manual, semi-auto |
| Delivery | 25days to 30 days upon finalized drawing approved |

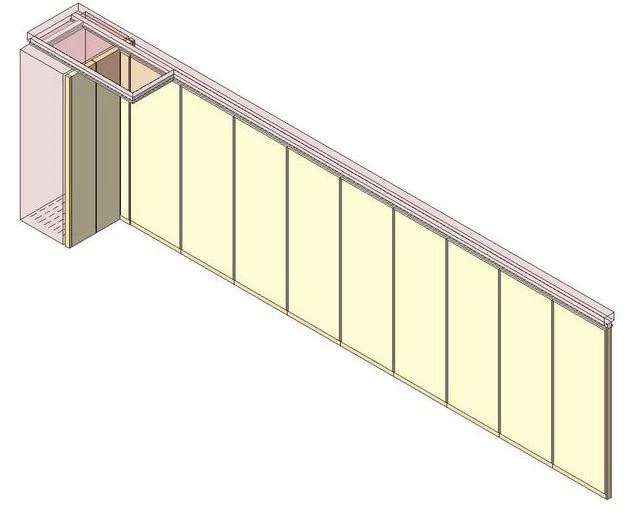

Construction of movable wall panel:
