Acoustic Wood Carving Board Partition

1)With an odd number of panels stacking to one side, a single acting operable door is possible
2)Versatile functions with swing enter/exit panel(s) options and with flexibility to fully or partially open.
3)Ease of operation to quickly open or close wide openings
4)No auxiliary track support is needed as all structural loads are within the plane of the opening.
5)Both top supported and floor mounted systems are available
6)A multitude of stacking configurations, as well as inward or outward opening options, is available.
7)Variations include paired panels and center pivot options.
8) Acoustic performance range from 32-55db.
9)Various options from wood to fabric
10)Panel thickness from 65,80 to 100mm
...

Send Inquiry

1)With an odd number of panels stacking to one side, a single acting operable door is possible

2)Versatile functions with swing enter/exit panel(s) options and with flexibility to fully or partially open.

3)Ease of operation to quickly open or close wide openings

4)No auxiliary track support is needed as all structural loads are within the plane of the opening.

5)Both top supported and floor mounted systems are available

6)A multitude of stacking configurations, as well as inward or outward opening options, is available.

7)Variations include paired panels and center pivot options.

8) Acoustic performance range from 32-55db.

9)Various options from wood to fabric

10)Panel thickness from 65,80 to 100mm

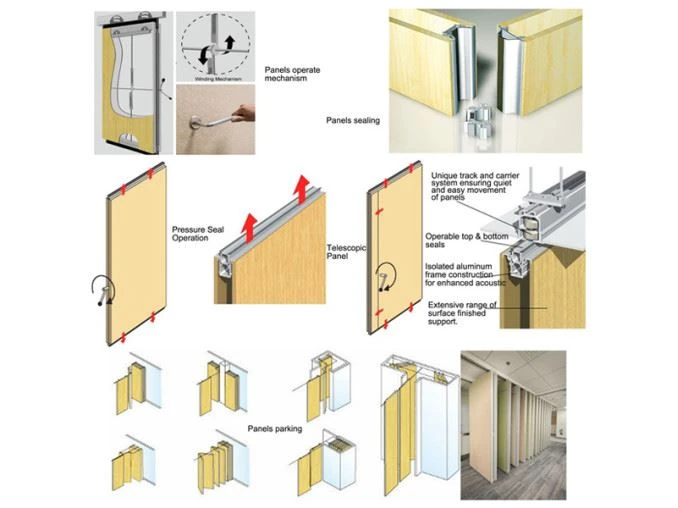

The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.

Its high performance per dollar value and the easiest in-field operation makes it very suitable for Hotel, banquet hall, conference room , ballroom, muti-function hall, restaurant,classroom,office,religion,dance studio ,shopping arcades and many other place where seek for space divide with good soundproof performance




Type

Acoustic wood carving board partition

Sound insulation

32-53db

Brand Name

Egood Partition

Place of Origin

Foshan China

Model Number

Type65,85,100

Glass wool infill

80kg/m³

Finishing option

Wood, fabric, and others

Panel thickness

65,85,100mm

Track

Anodized aluminum 6063-T6

Height

Max 17meter

Main frame

Anodized aluminum 6063-T6

Carrier materials

Imported POM

Base board

12mm thinckness Plywood and MDF board

Carrier over load

225-1300Kg


10120714586383_


The operable wall partition is working as room divider and used to separate the big space into different areas. Panels are precision laminated, pre-finished with vinyl, fabric or other specified finish. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 32 to 53dB.


1611371403(1)
