● Model: 65, 80, 100 series
● STC: 32-53db
● Thickness of panel: 65, 80, 100mm
● Panel frame color: Optional
● Track system: Type60, Type65,Type80 and Type100
● Surface finish color: Optional
● Height: From 2 meters to 20 meters;
● Pass door: Single, double leaf
● Sweap seal: included
● Surface finish: Melamine, HPL, fabric, PU, glass...
Increasingly, flexible and efficient space utilisation is becoming a must for airport, offices, hotels, exhibition centres, studios and similar. With our movable partition system, you can have more choice to arrange your space rather than a room. It’s not only providing visual insulation but also sound insulation which give you a more private space, the sound insulation could be 32dB to 53dB, as well as a concreat wall. Movable partition is made of high quality anodized aluminum frame with environmentally composite materials.the panels move on a ceiling track with no requirement of floor guides or rails which provide you a better environment.
Details of panel:

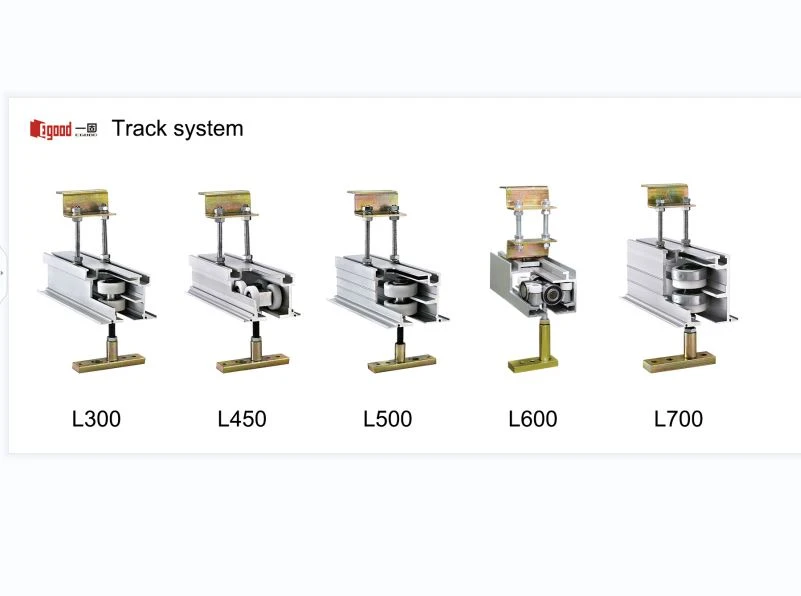

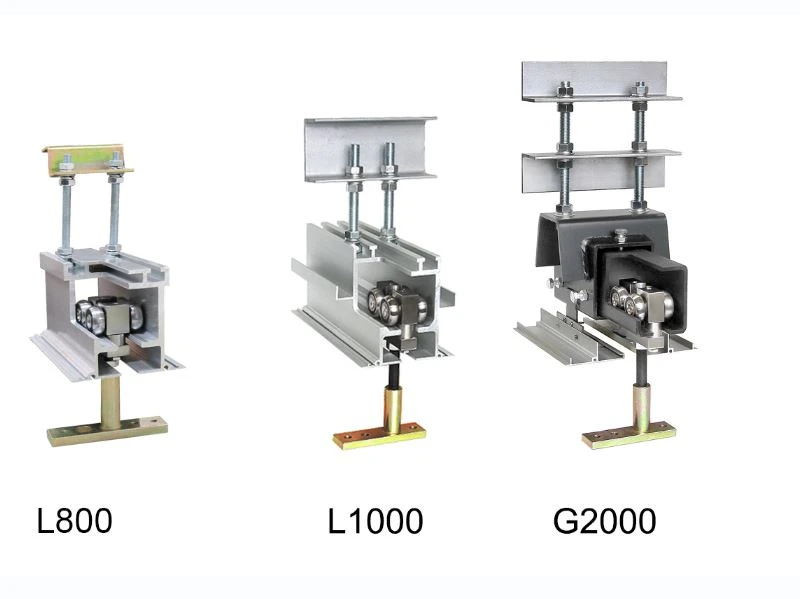

Track system adopted:
Working process of panel:

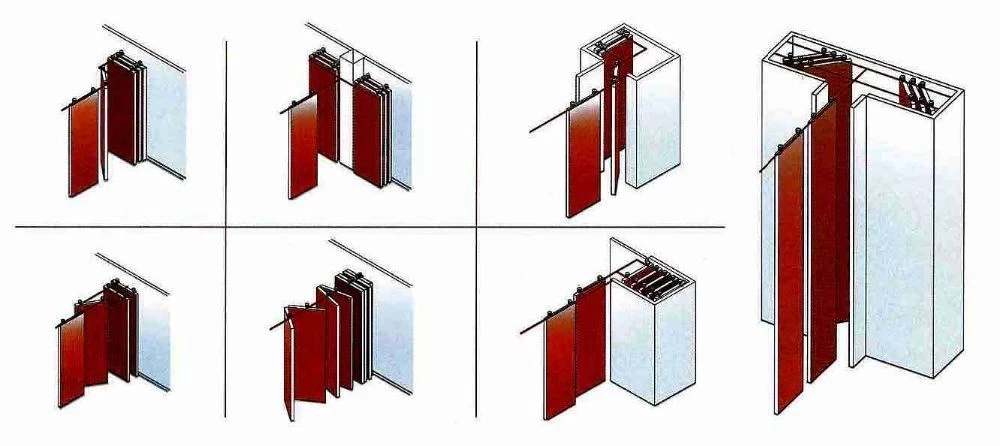

Egood provides many stacking options for client's choice. Stacking and storing the partiiton, versatilely and skillfully designed storage system is essential in space management. It ensures each panel is placed and spaced for easy retrieval and storage, and minimieses the storage space. The illustration below give examples of standard stacking configurations, many more can be offered depending upon the building. Fabrication of track junctions are assemble in our factory, ensuring accurate alignment and fast installation on site.
