Multifunction Room Folding Partition Wall

Product name:Multi-Function Hall Folding Partition Wall Offset Stacking
Place of Origin:Guangdong, China
Model Number:65#,80#,100
Partition thickness65mm,80mm,100m
Framework material:Aluminium alloy
Place of using:Multi-Function Hall
Style:Modern or classical
Color:Customized
finish:Customized
Function:Soundproof
...

Send Inquiry


Technical Details

Series

BG65

BG85

BG100

Panel suspension

Top hung only

Top hung only

Top hung only

Track system

Single or twin point

Single or twin point

Single or twin point

Panel thickness

65mm

80mm / 85mm

100mm

Panel height

Up to 4000mm

Up to 6000mm

Up to 18000mm

Max height

4000mm

6000mm

18000mm

Panel width

600-1230mm

600-1230mm

600-1230mm

Frame construction

Aluminum frame

Aluminum frame

Aluminum frame

Face material

9mm

9mm / 12mm

12mm

Fire safety

Optional Class I or O

Optional Class I or O

Optional Class I or O

Vertical profiles

Aluminum anodised with sealing profiles

Aluminum anodised with sealing profiles

Aluminum anodised with sealing profiles

Retractable seals

Aluminum black with
double rubber seals

Aluminum black with double rubber seals

Aluminum black with double rubber seals

Operation of seals

Manual, with supplied
operating handle

Manual, with supplied operating handle

Manual, with supplied operating handle

Locking

Optional lock to pass doors

Optional lock to pass doors

Optional lock to pass doors

Pass doors

Single open in panel or
double open in two panel

Single open in panel or double open in two panel

Single open in panel or double open in two panel

Sound insulation

20-32dB Rw

28-36dB Rw

32-50dB Rw

Weight

Approx 22-35kg/sq M

Approx 25-40kg/sq M

Approx30-48kg/sq M

Finish Material

Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.  (Customized)



Egood offers products and service with the end user in mind. We build in features that provide benefits to the owner over the life of the partition. Features such as protective edge trim will keep your partitions looking good for many years to come.


HTB1622cainrK1Rjy1Xcq6yeDVXat

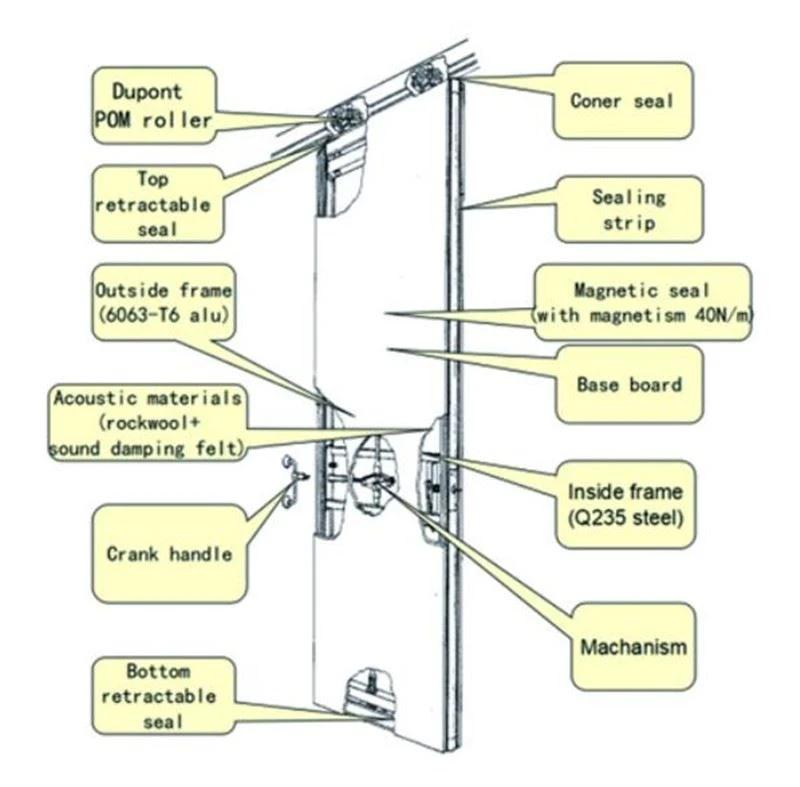

The movable partitions consist of a series of interlocking flat panels and the fast set retractable top and bottom seals provide the easiest in-field operation, a simple half-turn of the waist high removable handle extends or retracts the sound seals.


The quick set retractable seals save the owner a great deal of time during setup and take down Time means money, especially for clients that rent their facilities for meetings and other functions.

128



Egood provides panel finishes such as melamine, fabric, leather, wood veneer, high-pressure laminate or other custom surfaces, panels also be supplied unfinished(raw mdf or plywood) for field decoration to compliment the building environment.
